Product overview
2.3 Components
ET 200MP Distributed I/O System
System Manual, 01/2013, A5E03723484-01
19

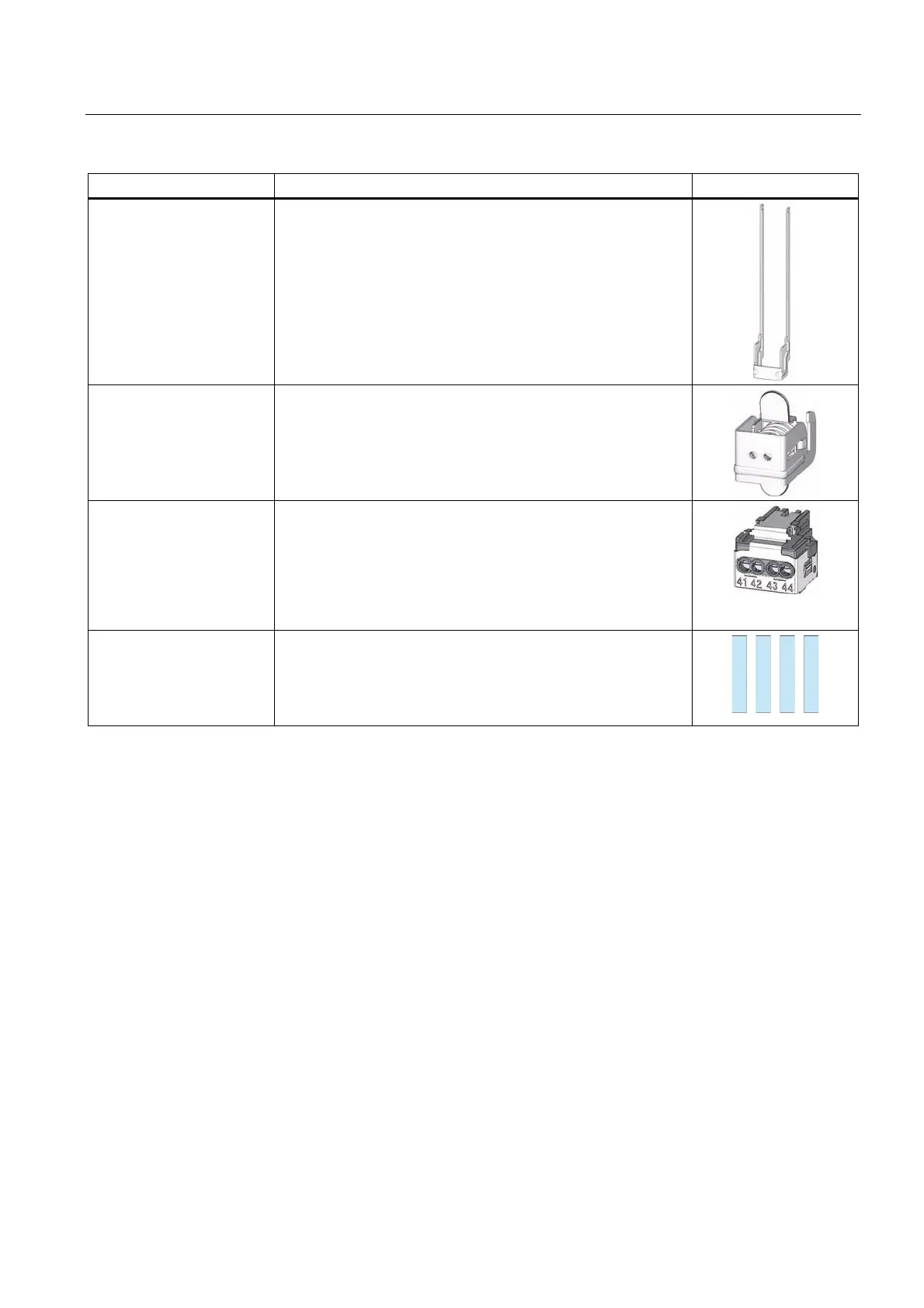

Components Function Diagram
Shielding bracket The shielding bracket is an insertable bracket for modules with
EMC-critical signals (e.g., analog modules, technology modules),
and (together with the shielding clamp) permits the low
impedance application of shielding with minimal installation times.
The shielding bracket is included in the scope of delivery of the
analog and technology modules, and may be ordered as an
accessory (Page 113).
Shield clamp The shield clamp is inserted on the shielding bracket, and serves
for overlaying cable shields on the shielding bracket.
The shield clamp is included in the scope of delivery of the
analog and technology modules, and may be ordered as an
accessory (Page 113).
Power supply element The power supply element is inserted in the front cable
connector, and serves to supply power to modules with EMC-
critical signals (analog modules, technology modules).
The power supply element (connection technology: screw
terminal) is included in the scope of delivery of the analog and
technology modules, and may be ordered as an accessory
(Page 113).
Labeling strips for the
exterior of the front cover of
the I/O modules
Labeling strips can be inserted for plant-specific labeling of the
modules. The labeling strips can be printed.
One labeling strip is included in the scope of delivery of the I/O
module. Additional labeling strips may be ordered as accessories
(Page 113).
