Siemens SIMATIC HMI KTP400 Basic User Manual

Preface
Basic Panels 2nd Generation
Operating Instructions, 10/2016, A5E33293231-AB
5
Illustrations and text highlighting
This manual contains figures of the described devices. The figures may deviate from the
supplied device in certain details.
The following graphical highlighting facilitates reading these operating instructions:
Graphical highlighting
Description
If the instructions involve several
tasks, the individual tasks are
highlighted by a red number circle.
A light blue highlight indicates
components and tools that are
required in the course of a task.

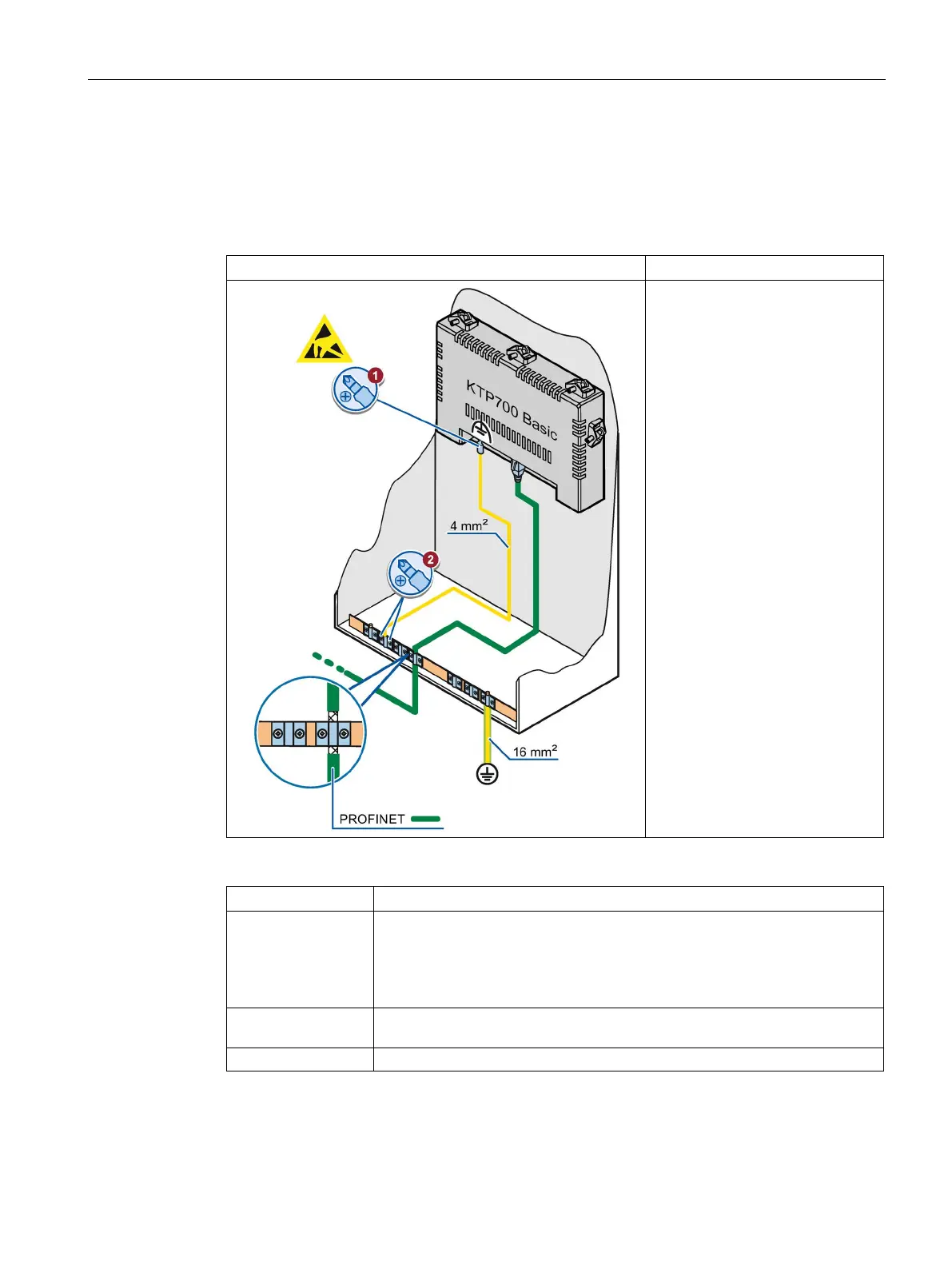

KTP700 Basic is sometimes shown
in the figures as a representation of
all Basic Panels.
The following text highlighting facilitates reading these operating instructions:
Text highlighting
Scope
"Add screen"
• Terms that appear in the user interface, for example, dialog names, tabs,
buttons, menu commands
• Input values, for example, limits, tag values
• Path information
"File > Edit" Operational sequences, for example, menu commands, shortcut menu
commands
<F1>
Keyboard operation

Siemens SIMATIC HMI KTP400 Basic Specifications

General

Display Type	TFT LCD
Resolution	480 x 272 pixels
Touchscreen	Yes
Backlighting	LED
Color Depth	16-bit
Power Supply	24 V DC
Mounting	Panel mounting
Operating Temperature	0 to 50 °C
Display Size	4.3 inches
Display Colors	65K colors
Power Consumption	Approx. 3.6 W
Protection Rating	IP65 (front)
Storage Temperature	-20 to 70 °C
Relative Humidity	10% to 90% (non-condensing)
Interfaces	PROFINET
