Commissioning the device
4.3 Parameterizing the Comfort Panel
Comfort Panels
156 Operating Instructions, 08/2018, A5E36770603-AC
4. If the port to which the UPS is connected is faulty and the HMI device is supposed to
respond:
– Select the check box in the "Port disturbed" area.
– Under "min" and "s", enter the time after which the message is displayed or the active
project on the HMI device is automatically closed.
5. Confirm your entries with "OK".
Port monitoring for the UPS is set.
See also
State of the uninterruptible power supply (Page 156)
Connecting the power supply (Page 48)
4.3.12.2 State of the uninterruptible power supply
If you have connected a UPS to a USB port of the HMI device, you can display the
monitoring status of this port.
Requirement
● The Control Panel is open.
● A UPS is connected to the 24 V DC connection and the USB port of the HMI device.
● The "Uninterruptable Power Supply (UPS) with USB support" option was transferred to
the HMI device with ProSave.
● UPS settings are configured.
Procedure

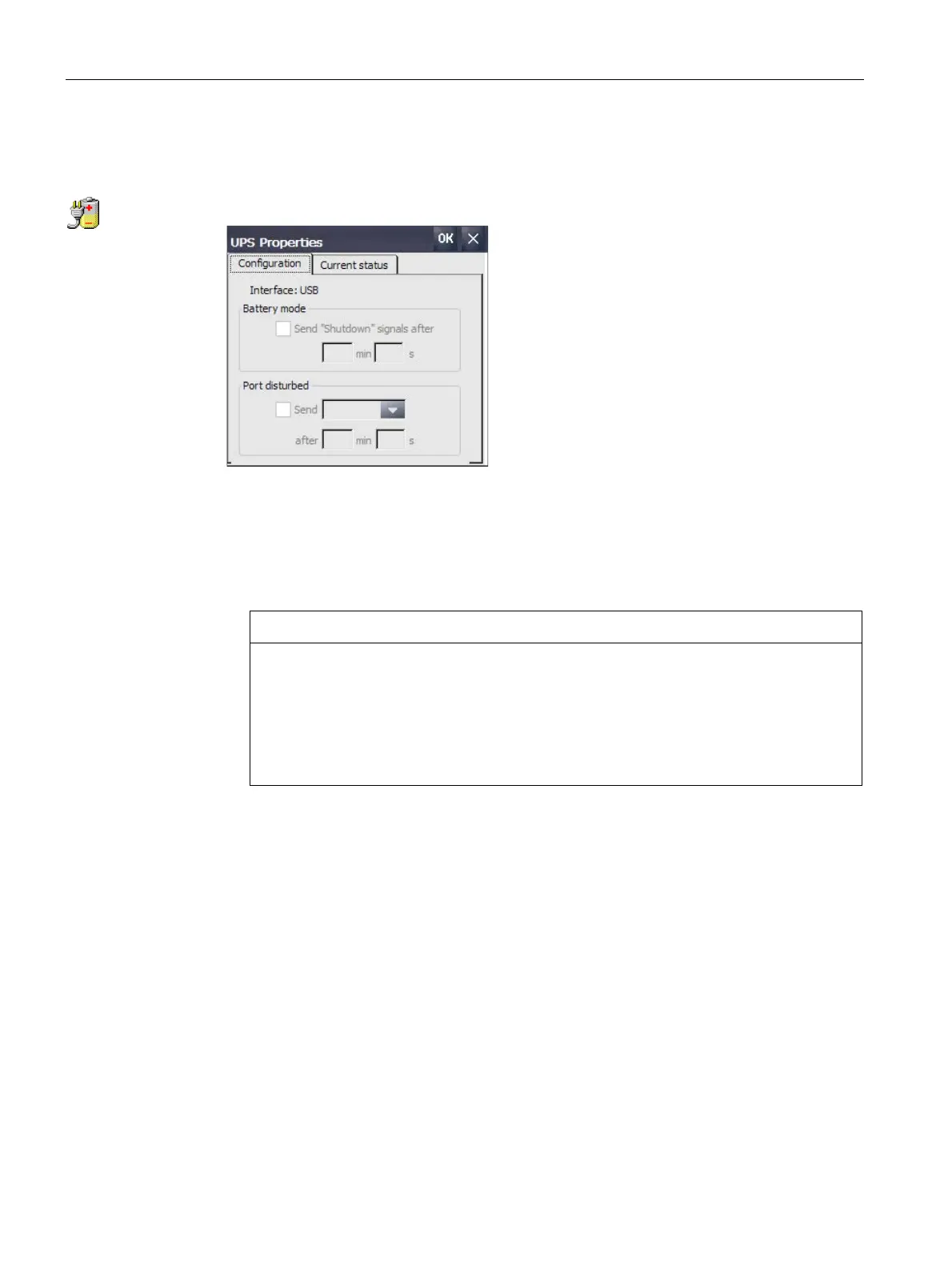

1. Open the "UPS Properties" dialog using the "UPS" icon.
2. Change to the "Current status" tab.
3. Refresh the monitoring status with "Update", if needed.
4. Confirm your entries with "OK".
The current monitoring state for the UPS is displayed.
See also
Setting the uninterruptible power supply (Page 155)
