Installing and connecting the device
3.4 Connecting the device
Industrial Flat Panel IFP1500, IFP1900, IFP2200, IFP1900 PRO, IFP2200 PRO, IFP1900 ETH, IFP2200 ETH
54 Operating Instructions, 07/2016, A5E31298376-AF

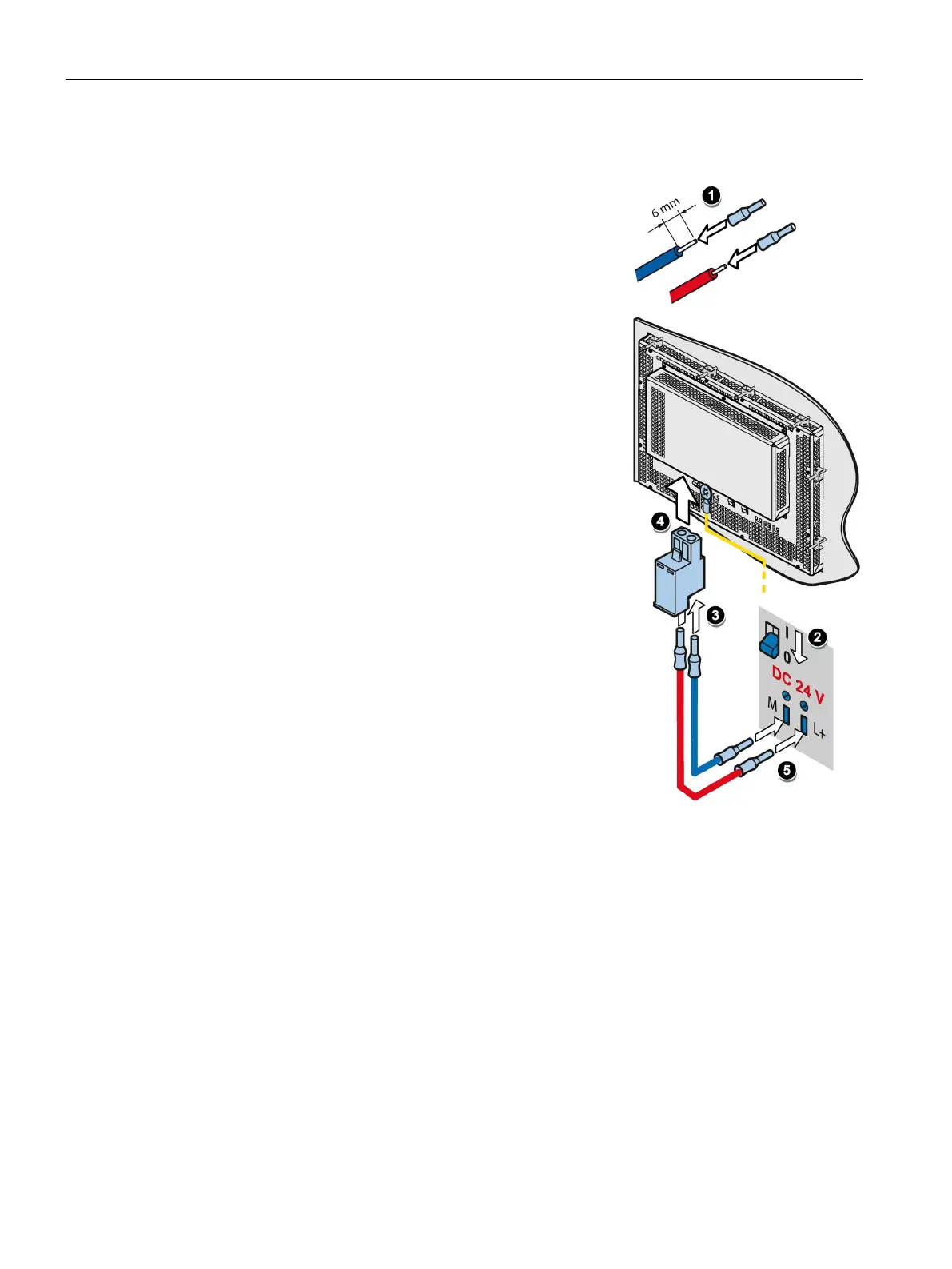

Procedure
1.
Ensure that the cable ends of the power
supply lines are fitted with end sleeves.
2.
Switch off the 24 V DC power supply.
3.
Fasten the end of a connecting cable L+
and a connecting cable M with the supplied
power supply terminal.
4.
Connect the power supply terminal to the
relevant terminal on the device.
5.
Connect the remaining L+ and M ends with
the respective terminals on the 24 V DC
power supply.
