SIMATIC IPC PX-39A

106 Operating Instructions, 08/2022, A5E51699601-AA

Hardware description

A.1 Motherboard

A.1.1 Layout of the motherboard

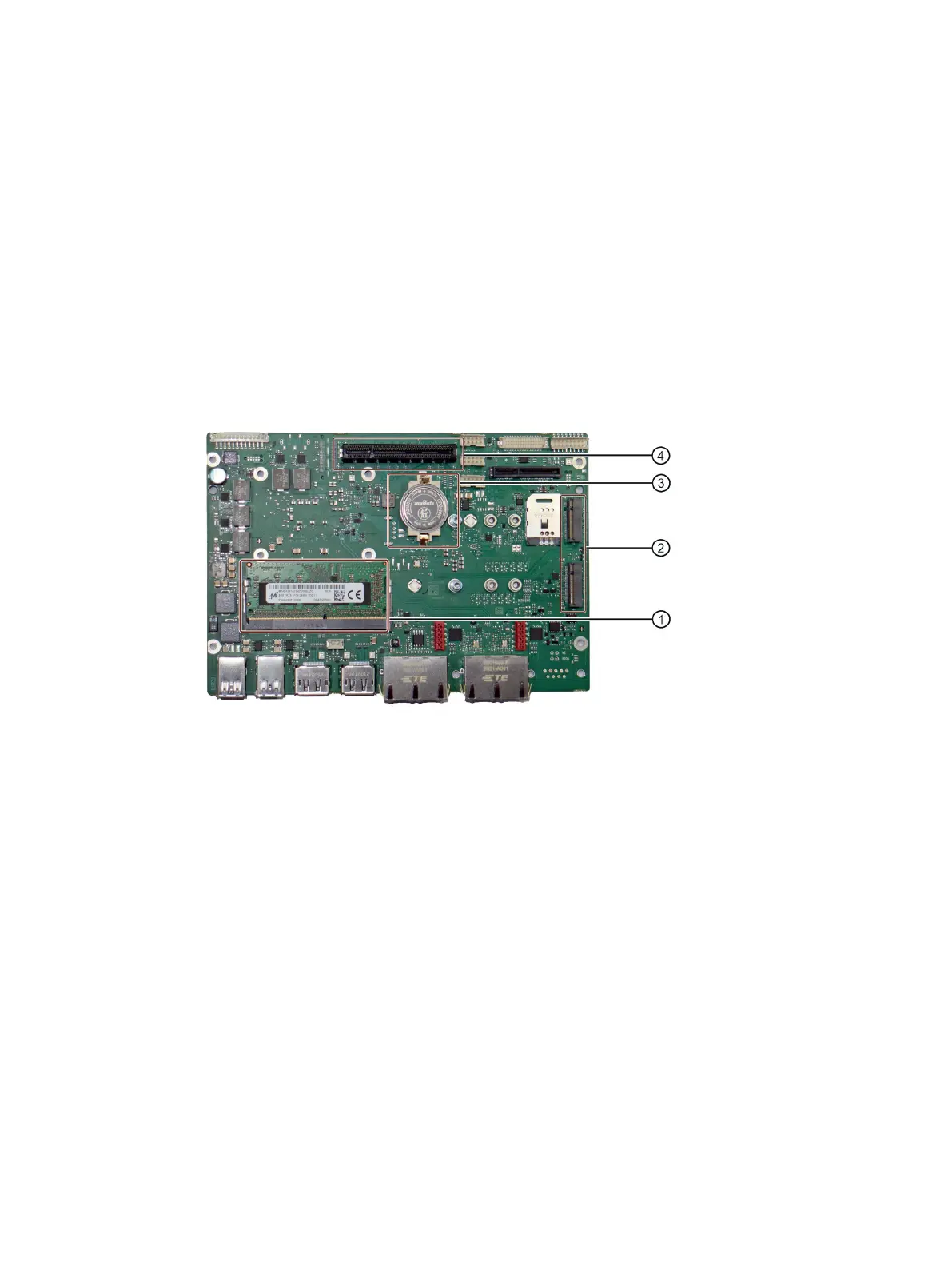

The motherboard consists of these main components: Processor and chip set, one slot for the

memory module, internal and external interfaces and the flash block for the BIOS.

①

Slot for memory module

②

Slots for expansion modules (M.2)

③

Backup battery

④

Slot for the bus board

Technical features of the motherboard

Technical features of the motherboard can be found under "Technical specifications of the

motherboard (Page 89)".
