Siemens SIMATIC IPC PX-39A - Preparing the Mounting Cutout

Installing and connecting the device
3.1 Preparing for installation
SIMATIC IPC PX-39A
Operating Instructions, 08/2022, A5E51699601-AA
33

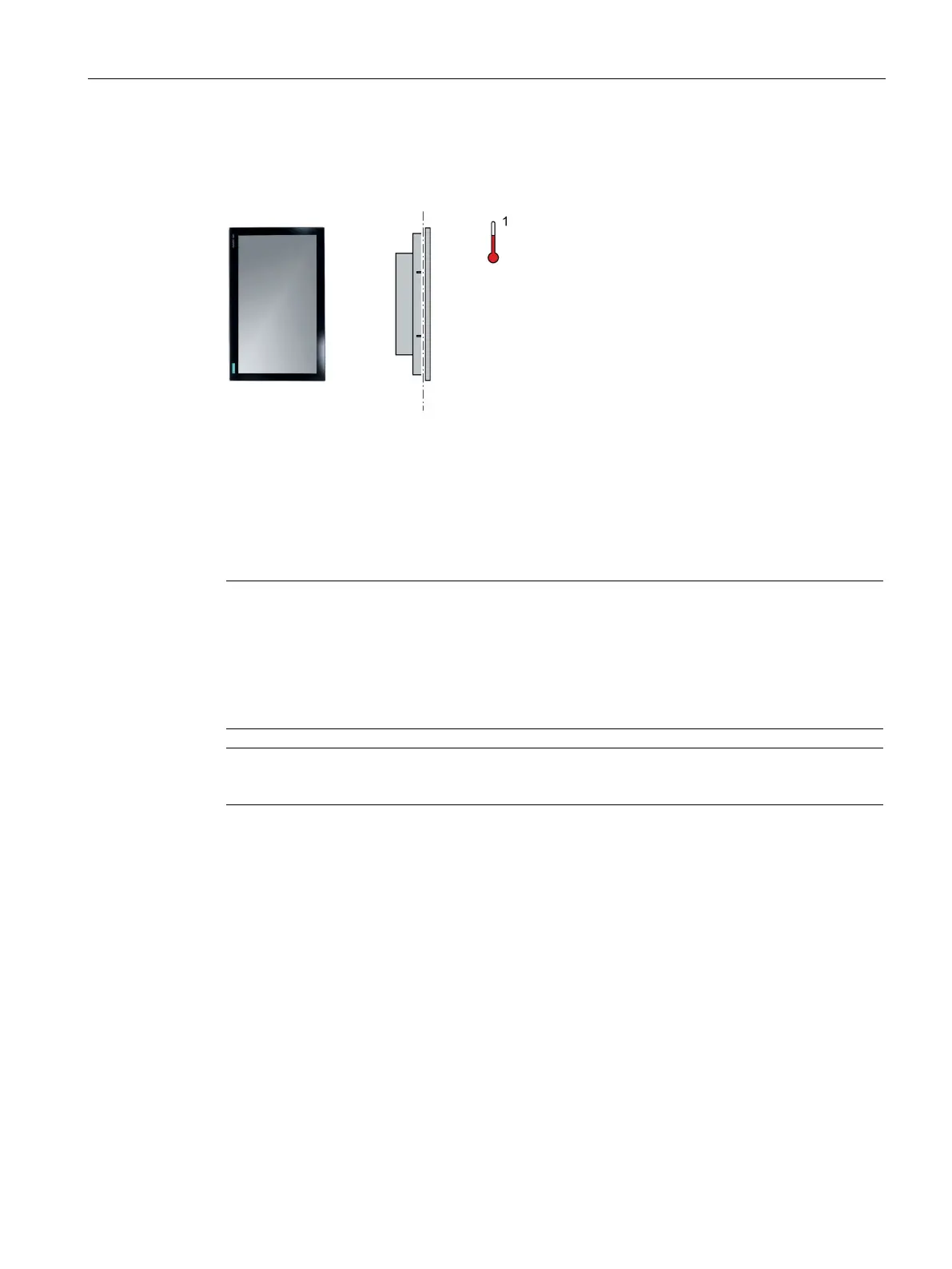

Mounting in vertical format
Upright mounting in vertical format:
1
For temperature specifications, see section "AUTOHOTSPOT".
The power supply is located at the top.
3.1.5 Preparing the mounting cutout
Note
Stability of the mounting cutout
The material in the area of the mounting cutout must provide sufficient strength to
guarantee the enduring and safe mounting of the HMI device.
The force of the clamps or operation of the device may not lead to deformation of the
material in order to achieve the degrees of protection described below.
Note
Read the information in the section "Installation guidelines (Page 35)".
Requirements for complying with degree of protection
The degree of protection of the HMI device can only be guaranteed if the following
requirements are met:
• Material thickness at the mounting cutout for a degree of protection IP65 or
Enclosure Typ 4X/Typ 12 (indoor use only): 2 mm to 6 mm
• Permissible deviation from plane at the mounting cutout: ≤ 0.5 mm
This condition must be fulfilled for the mounted HMI device.
• Permissible surface roughness in the area of the mounting seal: ≤ 120 µm (R
z 120)
