Siemens SIMATIC IPC PX-39A User Manual

Installing and connecting the device
3.1 Preparing for installation
SIMATIC IPC PX-39A
34 Operating Instructions, 08/2022, A5E51699601-AA
Dimensions of the mounting cutout

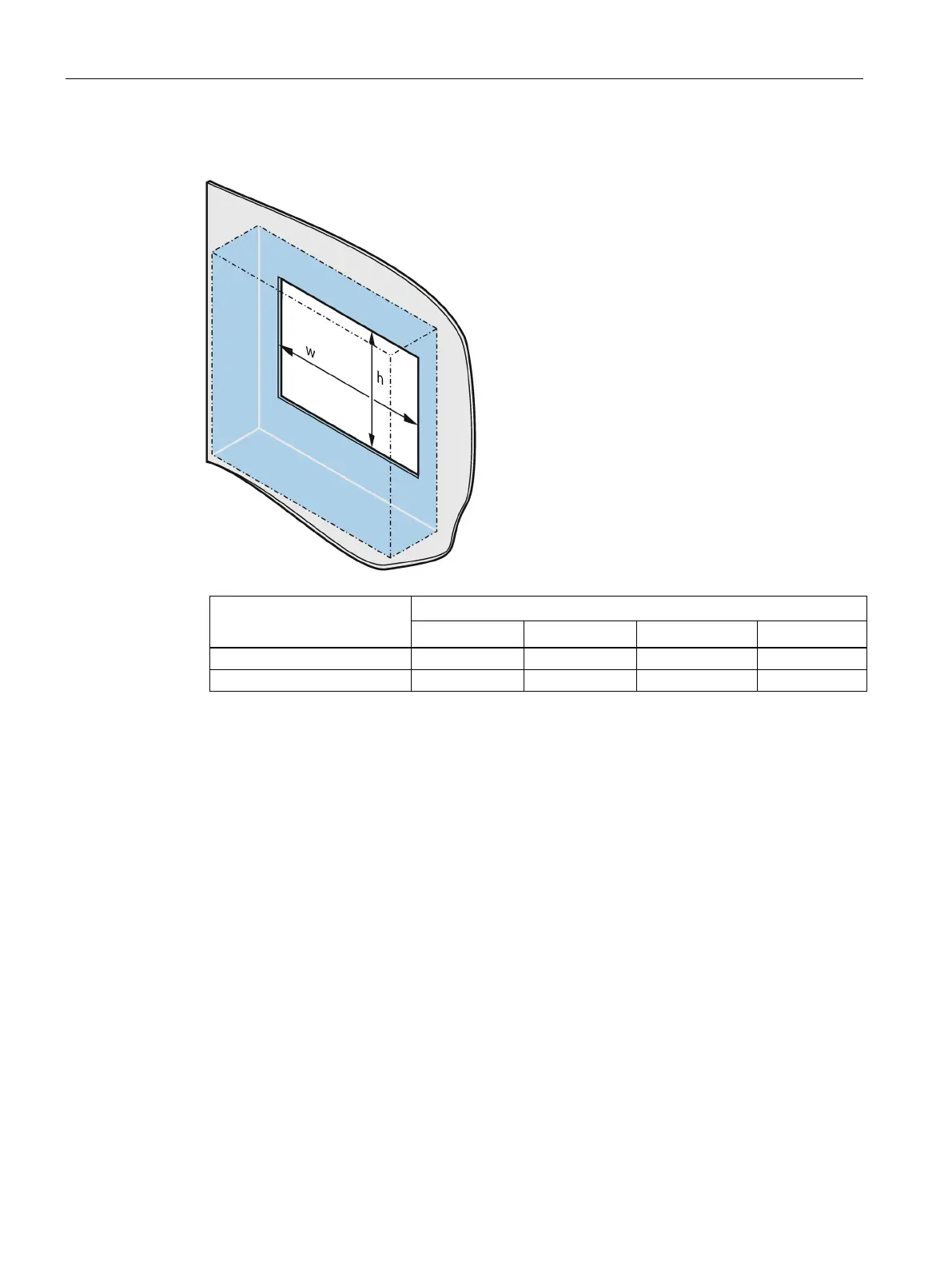

Mounting cutout
Multi-touch device
15"
19"
22"
24"
Width w
1
382
+1
mm
448
+1
mm
513
+1
mm
569
+1
mm
Height h
1
241
+1
mm
278
+1
mm
315
+1
mm
347
+1
mm
1
Width and height must be interchanged for mounting in vertical format.
Installation depth
Information on the overall depth is available in the section "Dimension drawings (Page 93)".
