Siemens SIMATIC IPC PX-39A - Interfaces and Operator Controls for Devices with 100-240 V AC Power Supply

Product description
1.4 External design of the device
SIMATIC IPC PX-39A
Operating Instructions, 08/2022, A5E51699601-AA
15
1.4.2 Interfaces and operator controls for devices with 100-240 V AC power
supply

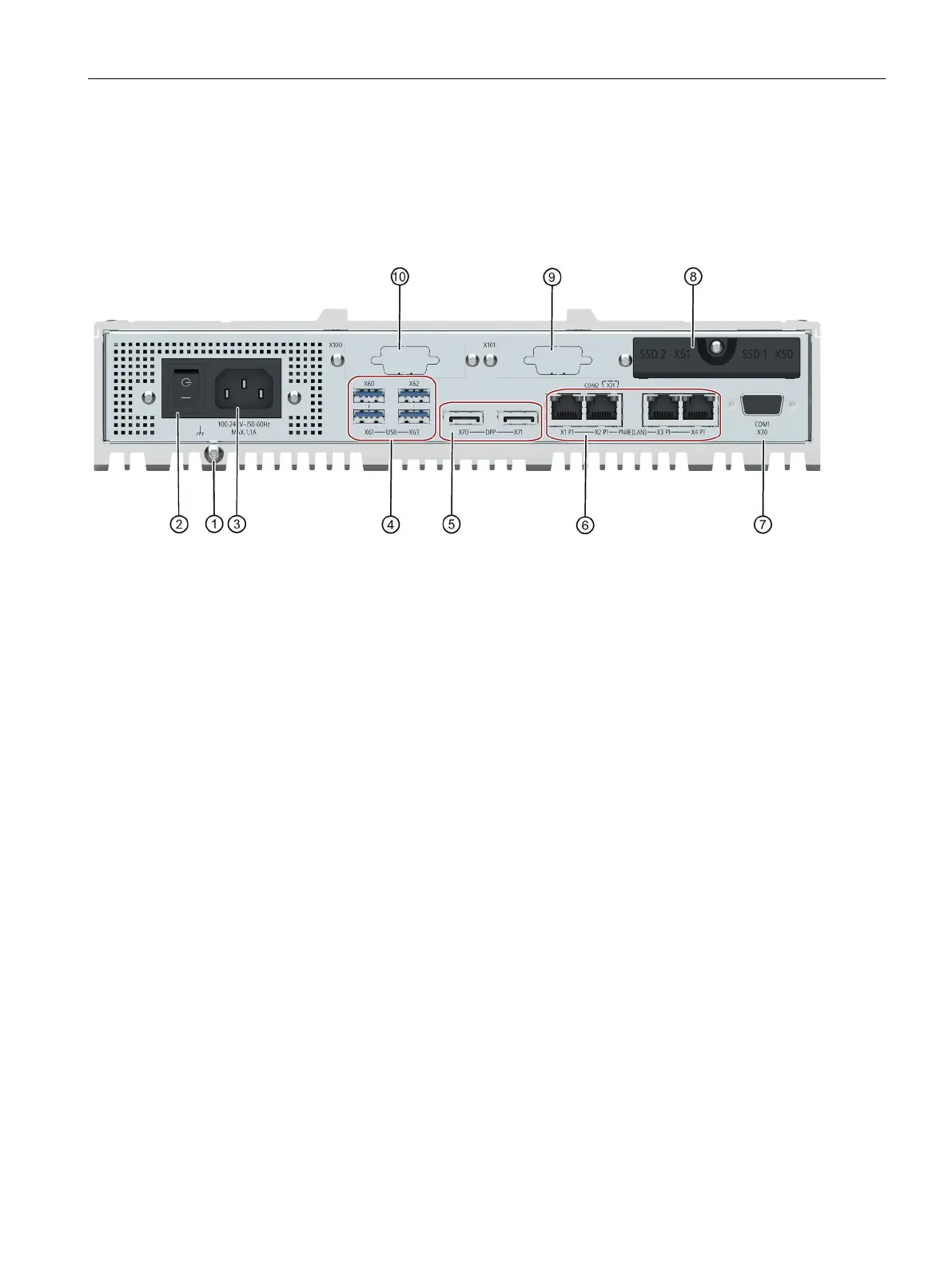

Device without expansion slot
①
Protective conductor
Connection for functional grounding
②
On/off switch
You switch on the device with the on/off switch. The on/off switch does not isolate the de-
vice from the power supply.
• Position "ON", when the "_" symbol is pressed.
• Position "OFF" is the delivery state.
③
100-240 V AC
X80
Power supply connection
④
4 × USB
X60/X61/X62/X63
USB 3.2 Gen 2 type A, high current, backward compatible
⑤
2 x DPP
X70/X71
Connection for monitors with DisplayPort interface
⑥
4 × Ethernet
X1 P1/X2 P1/X3
P1/X4 P1
Connections for Ethernet RJ45 for 10/100/1000 Mbps
• Ethernet X1 P1 is iAMT-capable
• Ethernet X2 P1, Ethernet X3 P1 and Ethernet X4 P1
⑦
COM1 X30
Serial interface 1 (V.24), 9-pin SUB-D socket
⑧
2 x slot for SSD drive
SSD1 X50/SSD2 X51
SSD drives in NVMe format, installed in SIMATIC IPC Slider
⑨
Opening for expansion in-
terface X101 or
Interfaces of external expansion modules (M.2 format)
COM2 X31 (optional)
Serial interface 2 (V.24), 9-pin SUB-D socket (optional)
⑩
Opening for expansion in-
terface X100
Interfaces of external expansion modules (M.2 format)
Device with expansion slot
Other device variants (Page 49):
• with slot for one PCIe expansion card
You can find more information about expansion cards under "Expansion cards (Page 65)".
