Siemens SIMATIC IPC PX-39A User Manual

Hardware description
A.1 Motherboard
SIMATIC IPC PX-39A
Operating Instructions, 08/2022, A5E51699601-AA
107

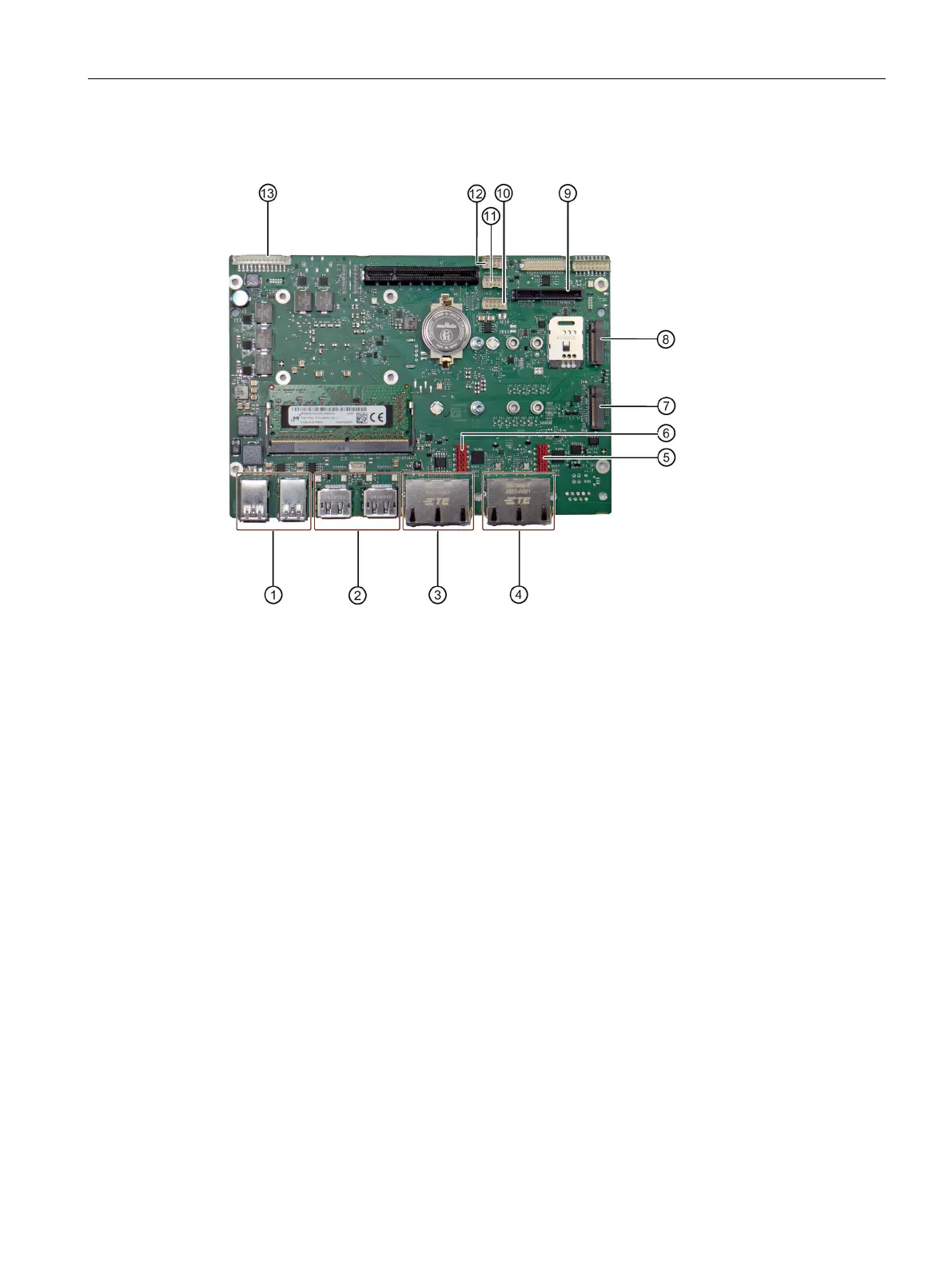

A.1.2 Position of the interfaces on the motherboard
(1)
4 x USB (X60/X61/X62/X63)
(5)
COM1 (X30)
(9)
Port for SSD drive bay (X40)
(2)
2 x DPP (X70/X71)
(6)
COM2 (X31)
(10)
USB 2.0 (X64 Internal 1/X64
Internal 2)
(3)
2 × Ethernet
(X1 P1 iAMT-capable/X2 P1)
(7)
M.2 PCIe interface (X101)
(11)
USB 2.0 (X600 Internal 3)
(4)
2 × Ethernet
(X3 P1/X4 P1)
(8)
M.2 PCIe interface (X100)
(12)
USB 2.0 (X610 Internal
4/X610 Internal 5)
(13)
Power supply (X10)
