Hardware description

A.4 External interfaces

SIMATIC IPC PX-39A

110 Operating Instructions, 08/2022, A5E51699601-AA

A.4 External interfaces

Note

Interface specification

The data of all external interfaces listed below correspond to the respective interface

specifications and the intended use.

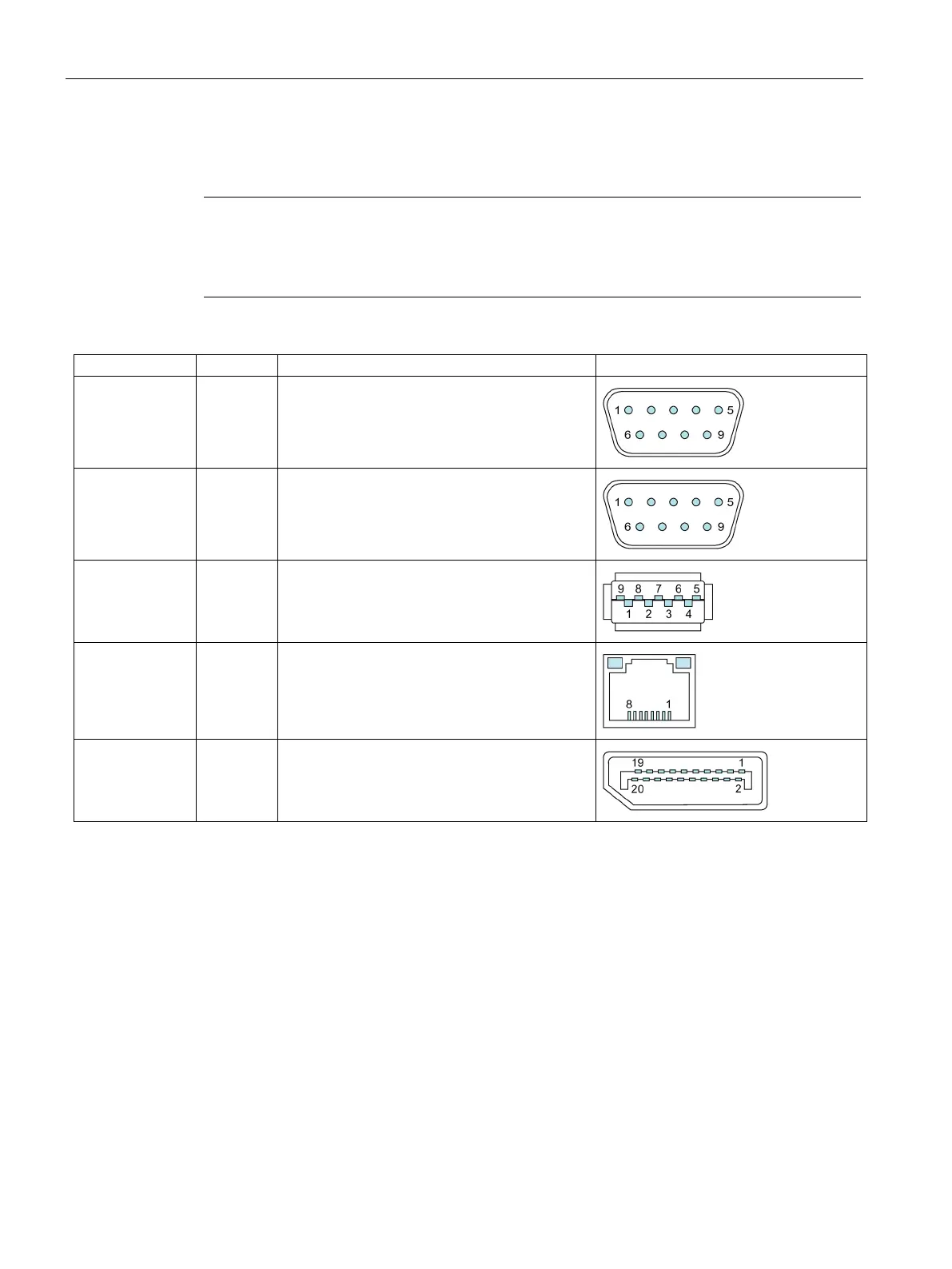

Interface

Connector

Description

Assignment

COM1

X30

9-pin SUB-D connector

COM2

X31

9-pin SUB-D connector

USB 3.2

X60, X61

X62, X63

USB 3.2 Gen 2 socket type A

Ethernet 1, 2, 3

and 4

X1 P1,

X2 P1,

X3 P1,

X4 P1

RJ45

DPP

X70, X71

20-pin DisplayPort connector
