Installing and connecting the device
3.3 Connecting the device
SIMATIC IPC PX-39A
Operating Instructions, 08/2022, A5E51699601-AA
47
Requirements
• The device has been installed.
• The protective conductor (Page 42) is connected.
• 1 wired terminal (Page 45).
The corresponding 24 V DC power supply is off.
• 1 0.6 × 3.5 mm Philips screwdriver
Procedure
Make sure that the ON/OFF switch is
in position
"O" (Off) to avoid uninten-
tional startup of the device when you
plug in the power cord.

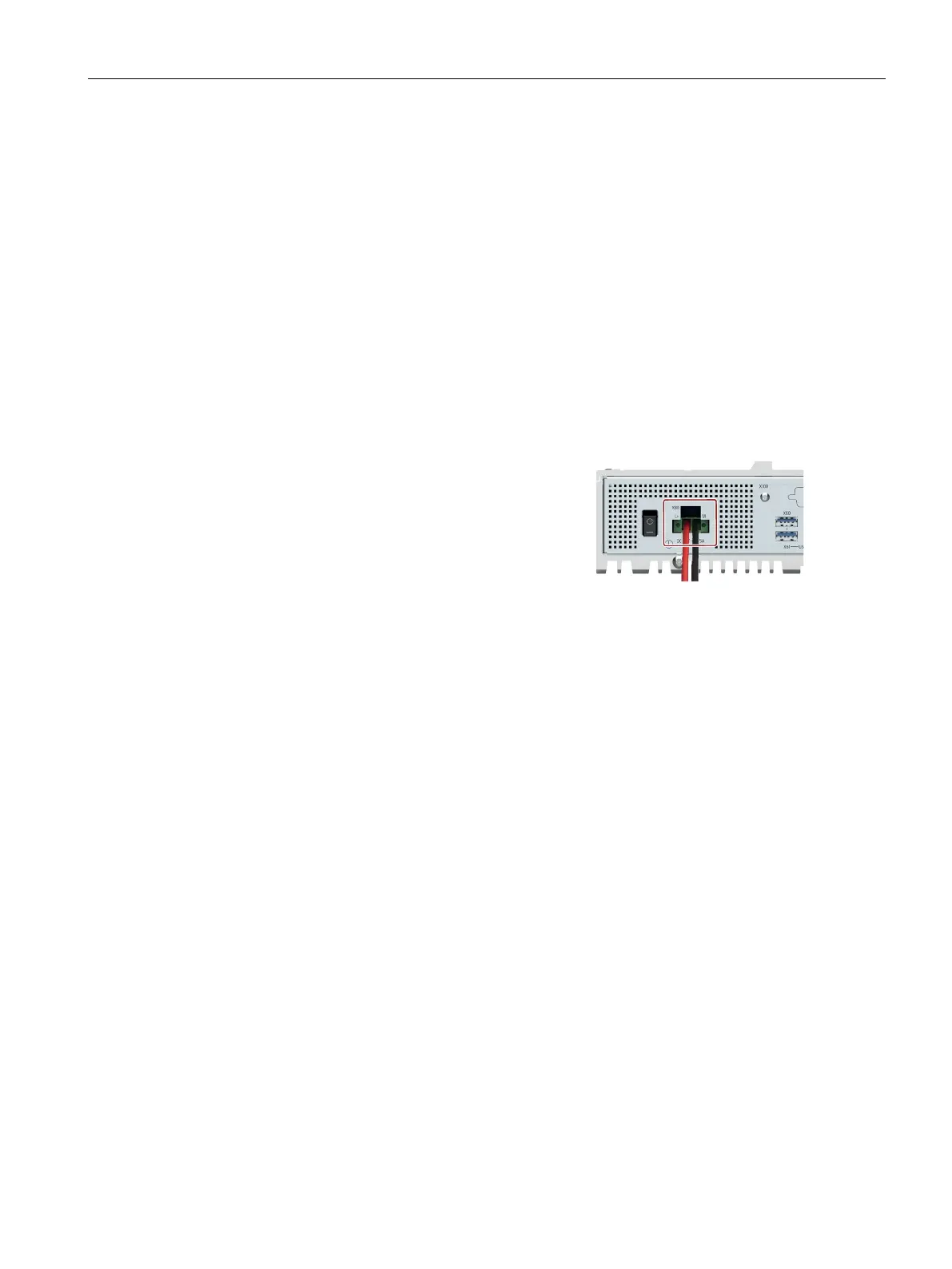

Insert the terminal at the marked po-
sition.
Secure the terminal using the inte-
grated screws.
