Siemens SIMATIC IPC277D

Overview
1.2 Configuration of the devices
SIMATIC IPC277D
Operating Instructions, 12/2016, A5E03409486-AE
17
1.2.3
SIMATIC IPC277D 12", 15" and 19"
This section describes the 12", 15" and 19" devices using the example of the
SIMATIC IPC277D 12". The 15" and 19" devices have an additional USB port at the
front.

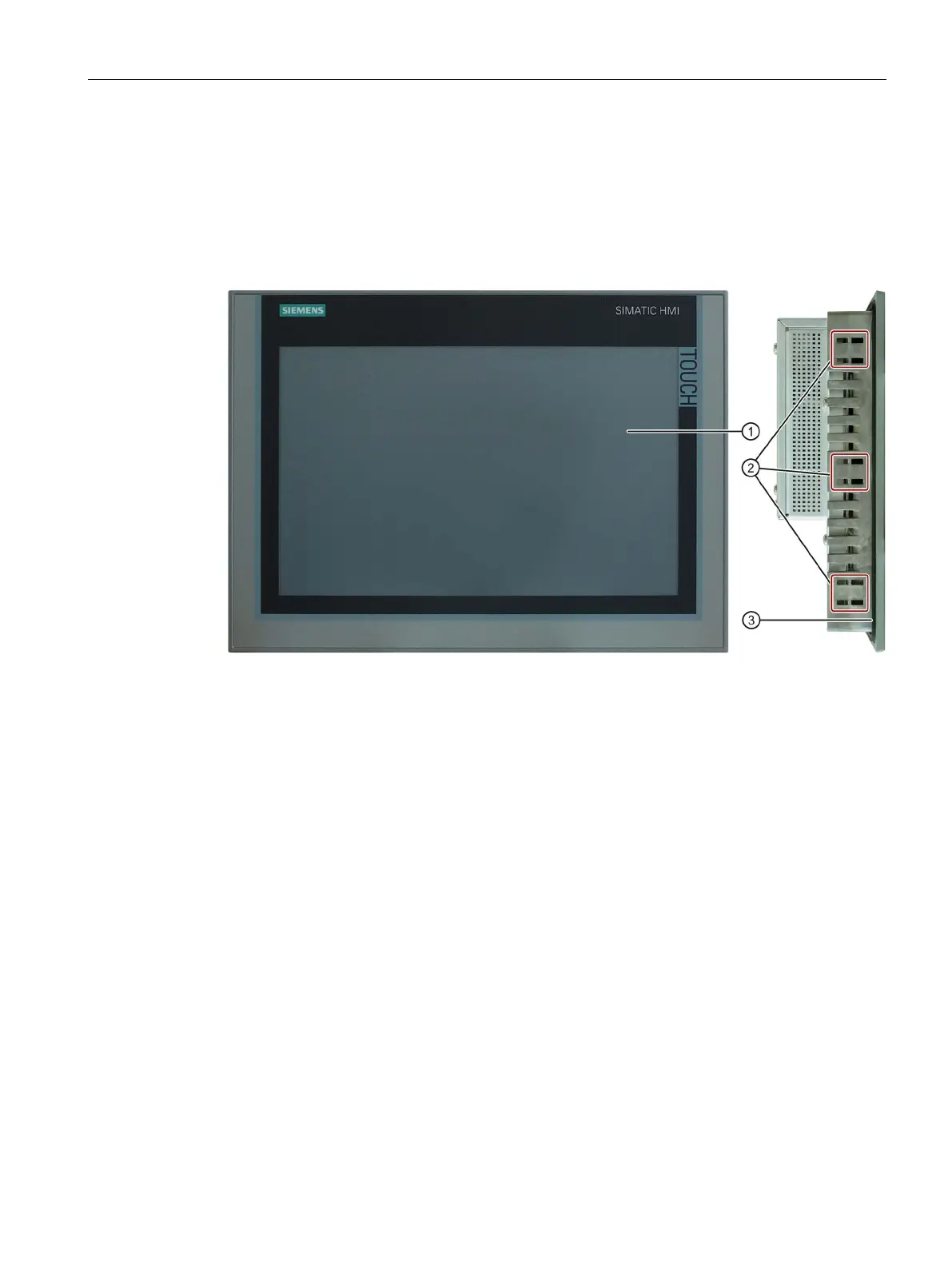

Front and side view, 12"
①
Display/touch screen
②
Mounting clamp recess
③
Mounting seal
