Replacing the drive of an IPC277D 12", 15" and 19"
Carry out the procedure if you want to replace the SSD.
Please observe the information in section "Repair information (Page 82)".
Requirement
● The device is opened.
See section "Open the device. (Page 77)".
● An SSD
● A T10 screwdriver
Procedure - removal
For information on the removal of the backup battery and battery holder, refer to section
"Replacing the backup battery (Page 85)".
Note
Do not remove the battery connector. If you remove the battery connector, you will have to
reinstall the BIOS.
Remove the bat
tery holder.

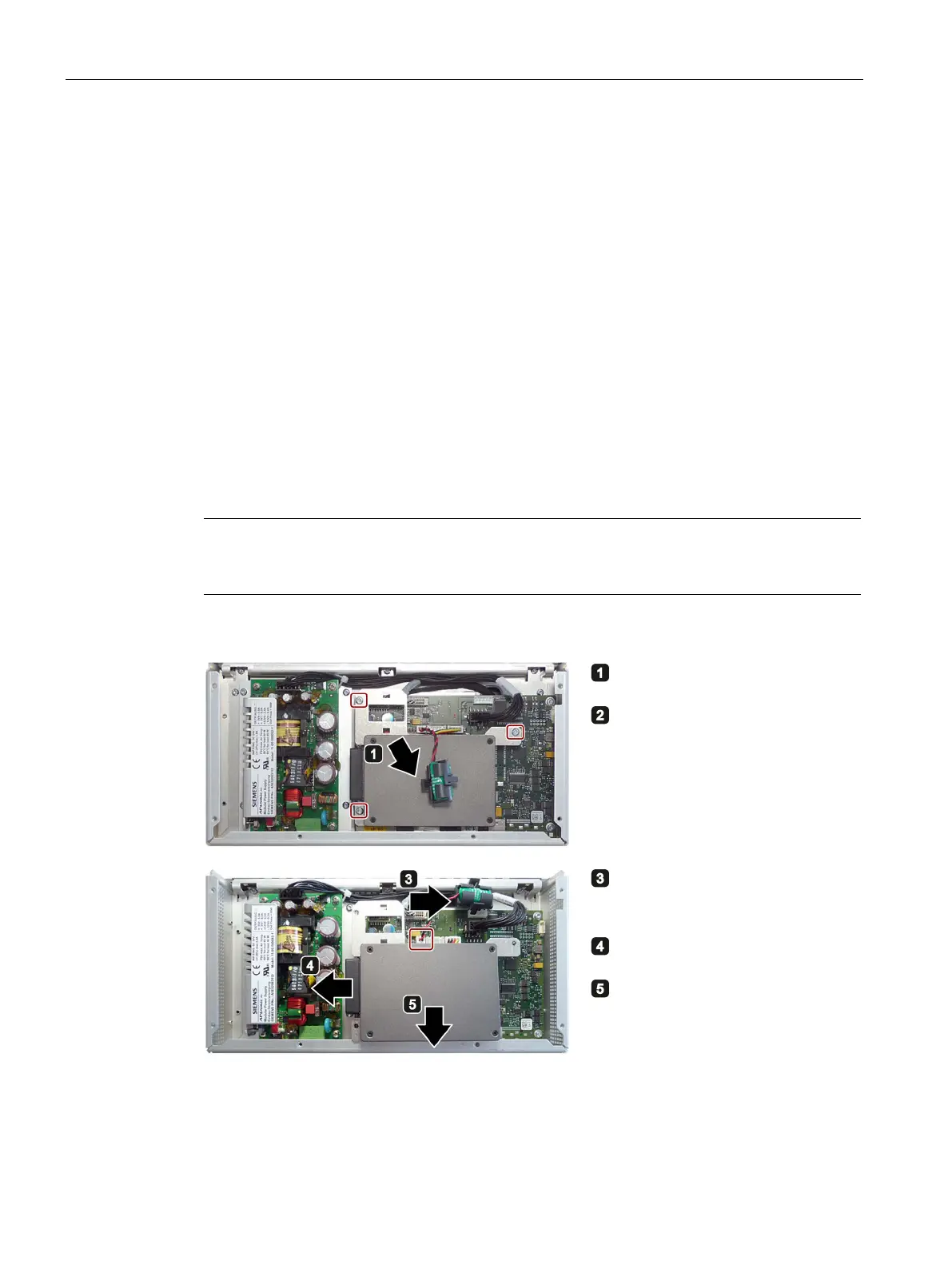

Remove the marked screws.
Put down the backup battery.
The marked connector mu
st
remain connected
Pull off the connector.
Remove the drive and put it
as
ide.
