Overview
1.2 Configuration of the devices
SIMATIC IPC277D
20 Operating Instructions, 12/2016, A5E03409486-AE
1.2.4

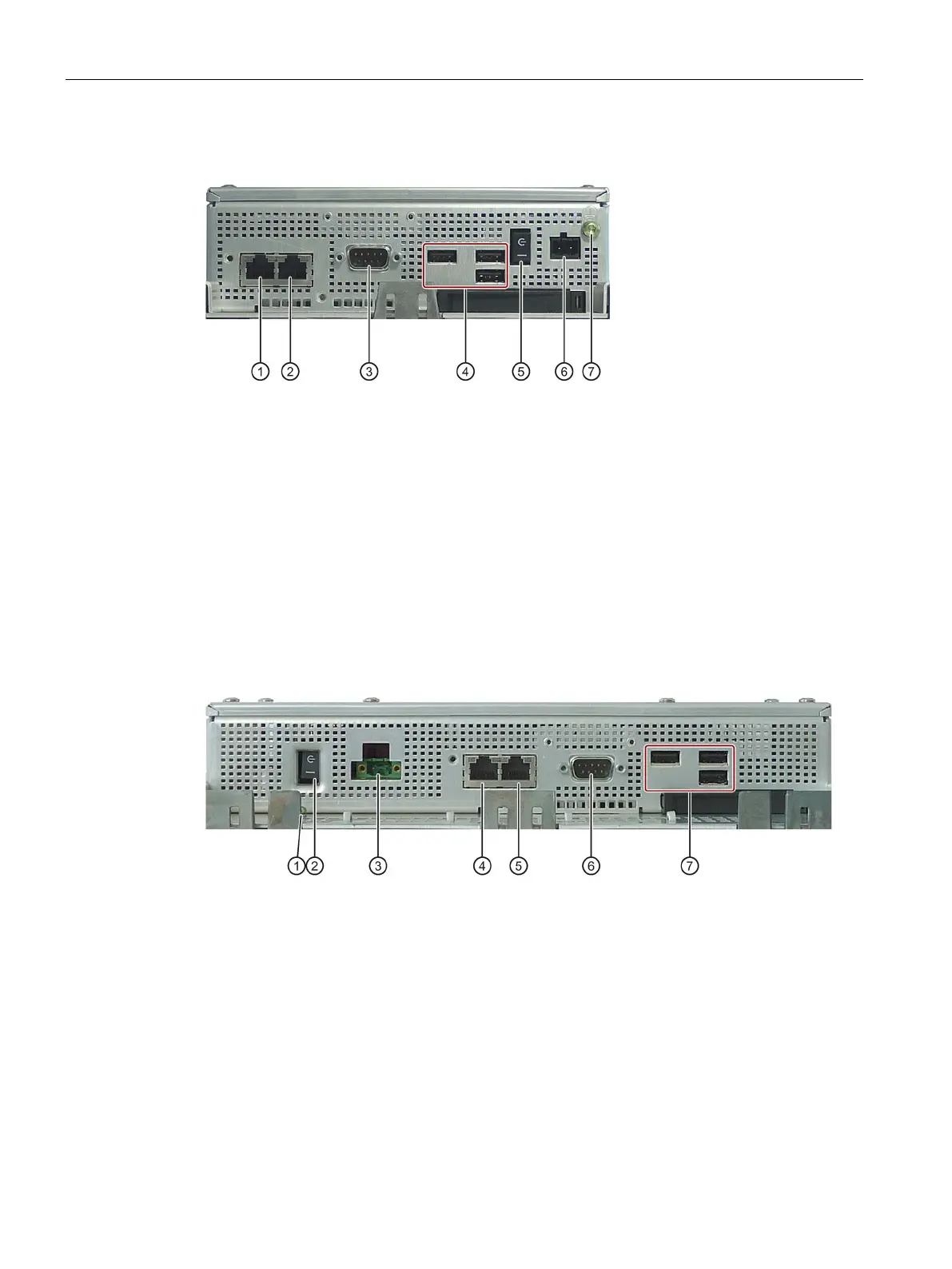

IPC277D 7" and 9" – interfaces and operator controls
①
RJ45 Ethernet connection LAN2 for 10/100/1000 Mbps
②
RJ45 Ethernet connection LAN1 for 10/100/1000 Mbps
③
RS-232 interface, D-sub connector, 9-pin
④
USB 2.0 connection, high speed
Only two USB interfaces may be operated simultaneously in high-current mode.
⑤
On/off switch. OFF position, when the symbol "C-" is pressed in.
⑥
Connection for a 24 VDC power supply
⑦
Protective conductor connection
Observe the printing on the rear of the device.
1.2.5
IPC277D 12", 15" and 19" – interfaces and operator controls
①
Protective conductor connection
②
On/off switch: OFF position, when the symbol "C-" is pressed in.
③
Connection for a 24 VDC power supply
④
RJ45 Ethernet connection LAN2 for 10/100/1000 Mbps
⑤
RJ45 Ethernet connection LAN1 for 10/100/1000 Mbps
⑥
RS-232 interface, D-sub connector, 9-pin
⑦
USB 2.0 connection, high speed
Only two USB interfaces may be operated simultaneously in high-current mode.
Observe the printing on the rear of the device.
