Installing and connecting the device
3.2 Installing the device
SIMATIC IPC277D
Operating Instructions, 12/2016, A5E03409486-AE
39
Securing with clamps
Position of the mounting clamps
To ensure the necessary degree of protection on the HMI device, you need to use the
mounting clamps with the positions listed below.
The positions of the mounting clamps are marked by stamps on the cutouts. Fit mounting
clamps in all the stamped cutouts.

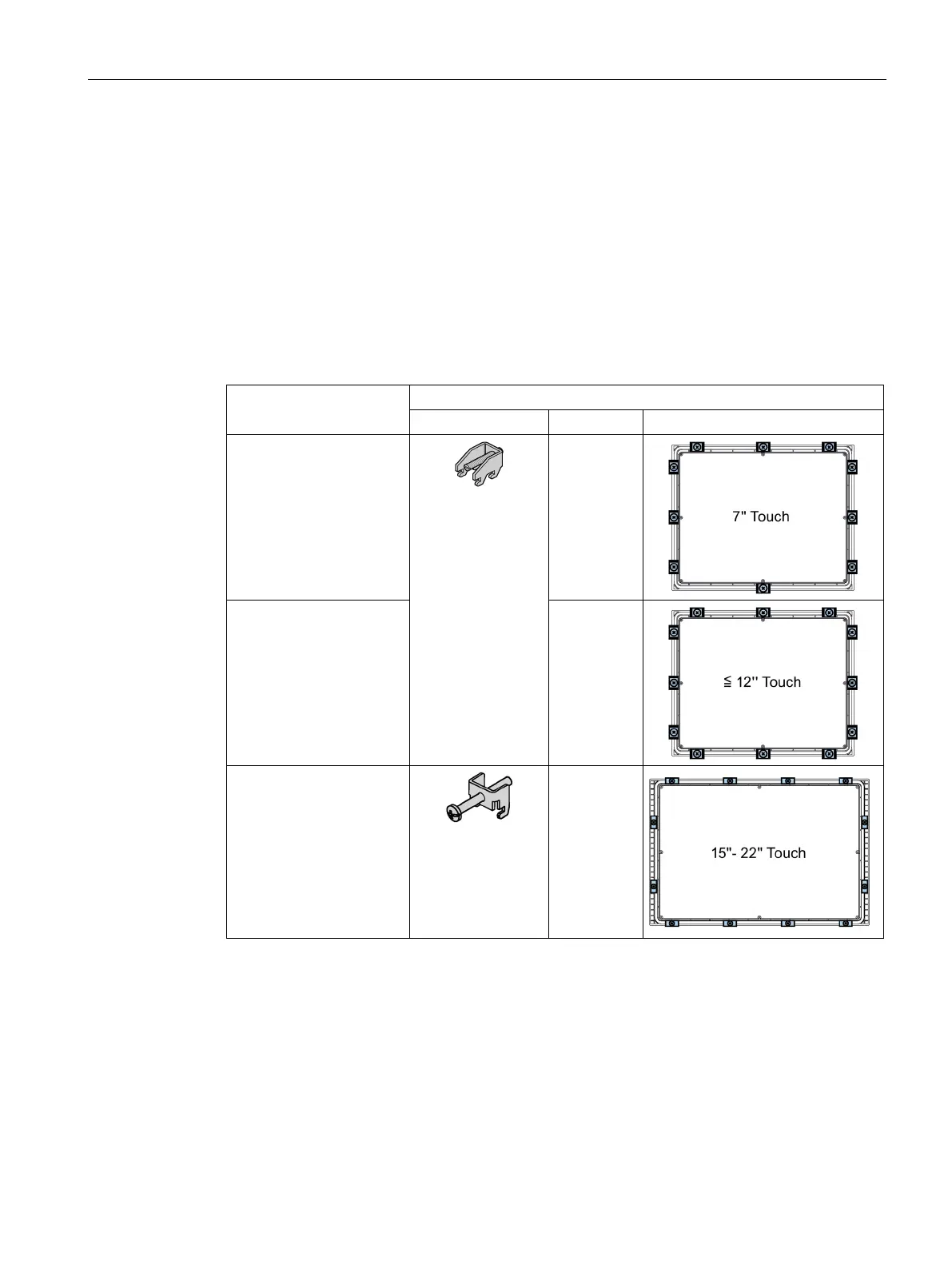

The following table shows the type, number and position of mounting clamps needed for the
various HMI devices.
Position on the HMI device
IPC277D, 7" display
10
IPC277D, 9" display
IPC277D, 12" display
12
IPC277D, 15" display
IPC277D, 19" display
12
