Installing and connecting the device
3.2 Installing the device
SIMATIC IPC277D
40 Operating Instructions, 12/2016, A5E03409486-AE
● All packaging components and protective foils should be removed from the HMI device.
● To install the HMI device, you need the mounting clamps from the accessory kit.

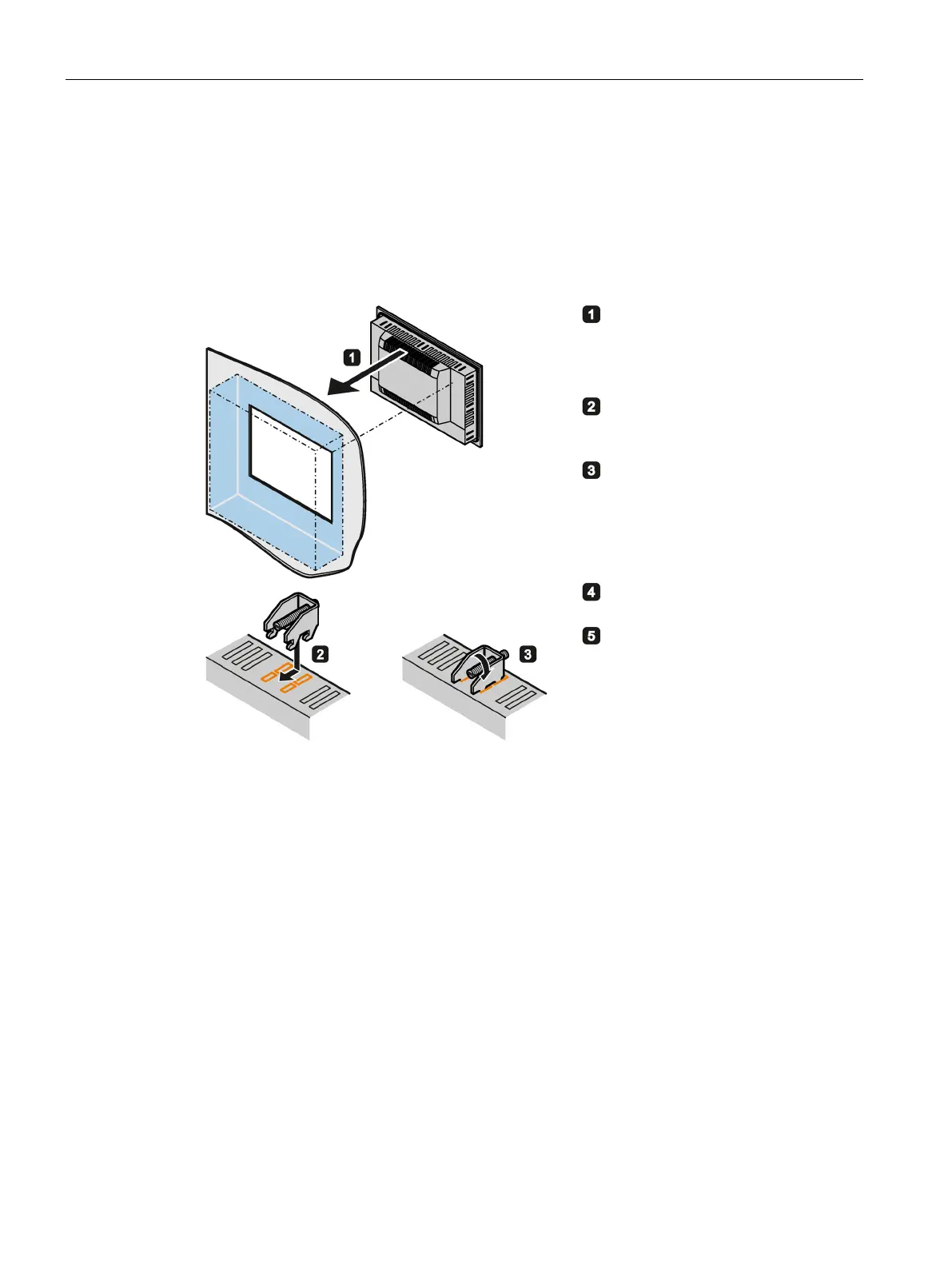

Insert the HMI device into the
mounting cutout from the front.
Insert a mounting clamp into the
cutout provided on
the HMI de-
Tighten the mounting clamp with
the threaded pin. The threaded
pins of the mounting clamps have
a maximum tightening torque of
0.5 Nm on the 7, 9, and 12 inch
variants.
Repeat steps 2 and 3 for all
mounting clamps.
Check the fit of the mounting seal.
The HMI device is mounted and the relevant degree of protection is ensured at the front.
