Operating the device
6.3 Configuring the touch screen
SIMATIC IPC277D
70 Operating Instructions, 12/2016, A5E03409486-AE
Extended Touch touch functionality
Procedure
1. Select "Start > Programs > UPDD > Settings".

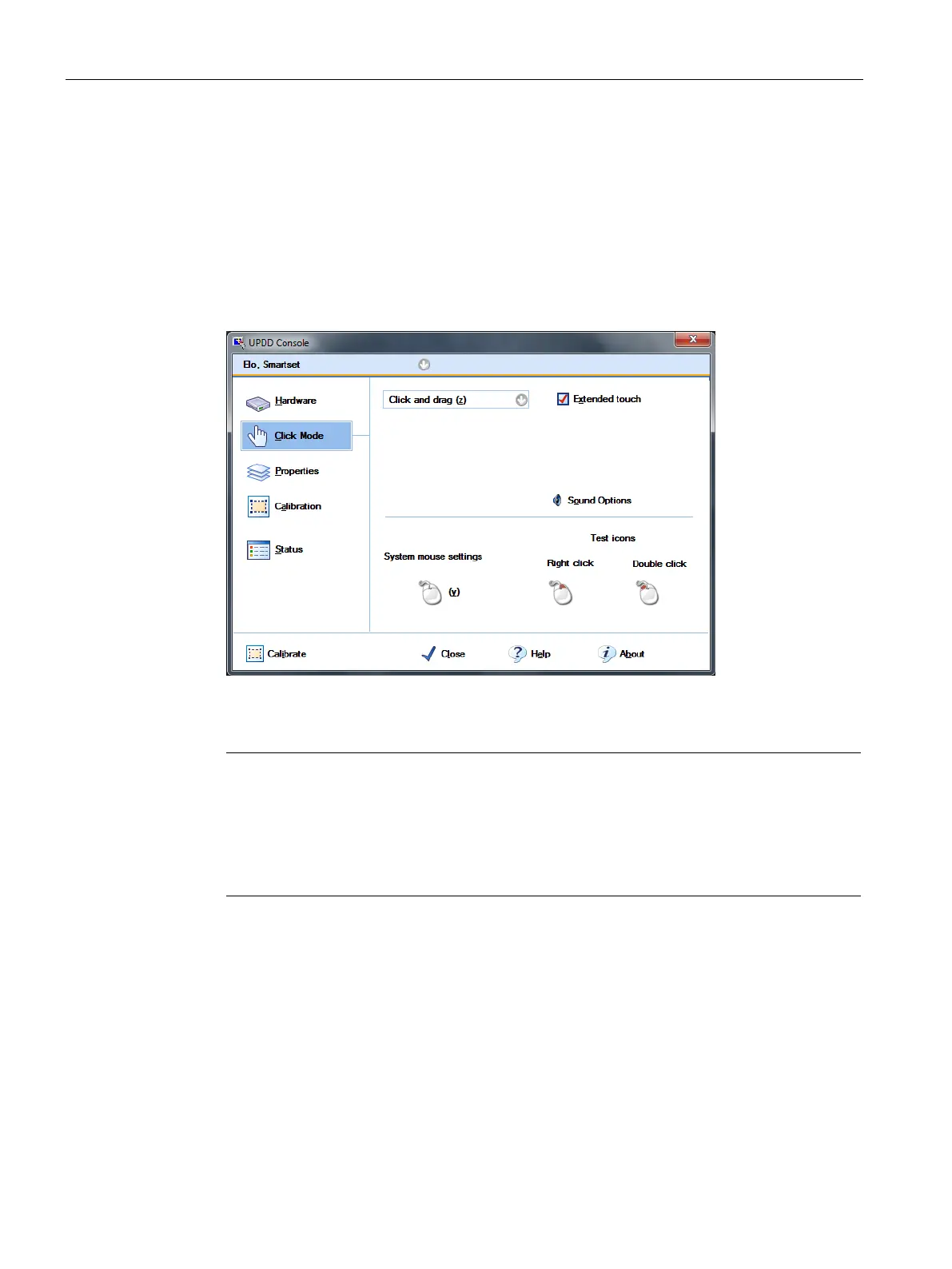

The "UPDD Console" dialog box opens.
Select the touch controller of the device you want to activate the extended touch
functions for in the header of the dialog.
2. Select the "Click Mode" option.
3. Activate the option "Extended Touch".
Note
"Extended touch" Is only available for the Windows 7 Ultimate operating system.
If "Extended touch" is activated, the extended touch functions of Windows 7 are also
available, such as permanently touching the touch screen, which corresponds to the right
mouse button function. In addition, the OSK is opened automatically at Windows logon
and at the activation of entry fields.
