3.3 Connecting the device
SIMATIC IPC277D
Operating Instructions, 12/2016, A5E03409486-AE
51

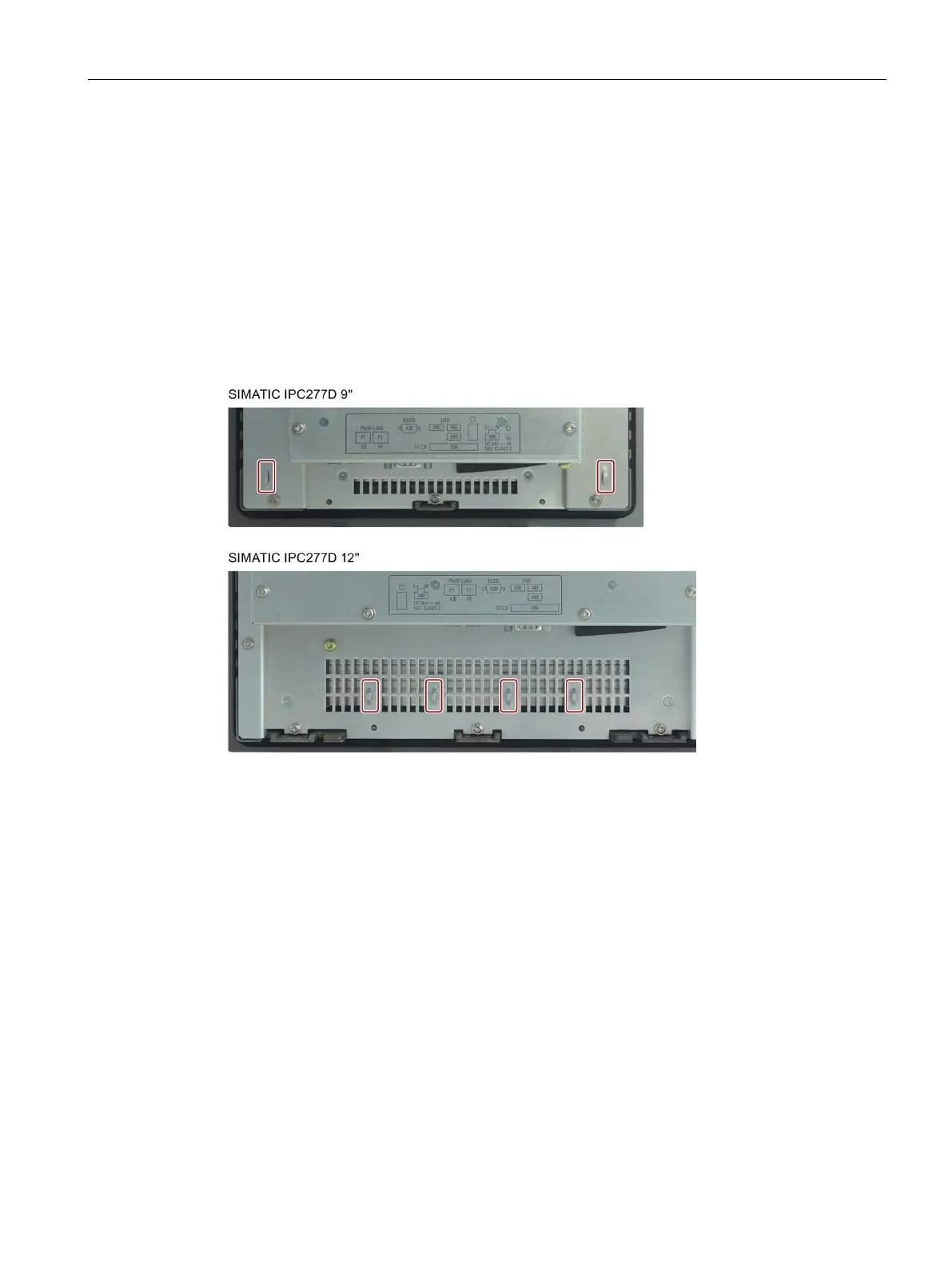

On the rear panel of the 9" and 12" devices, you will find fixing eyelets for cable ties for strain
relief of the following connecting cables:
● Power supply cable
● RS232 cable
● USB cables
Secure the connecting
cables with cable ties at
the points marked.
