Expanding and assigning parameters to the device
6.6 Installing and removing drives
108 Operating Instructions, 01/2021, A5E43920357-AA

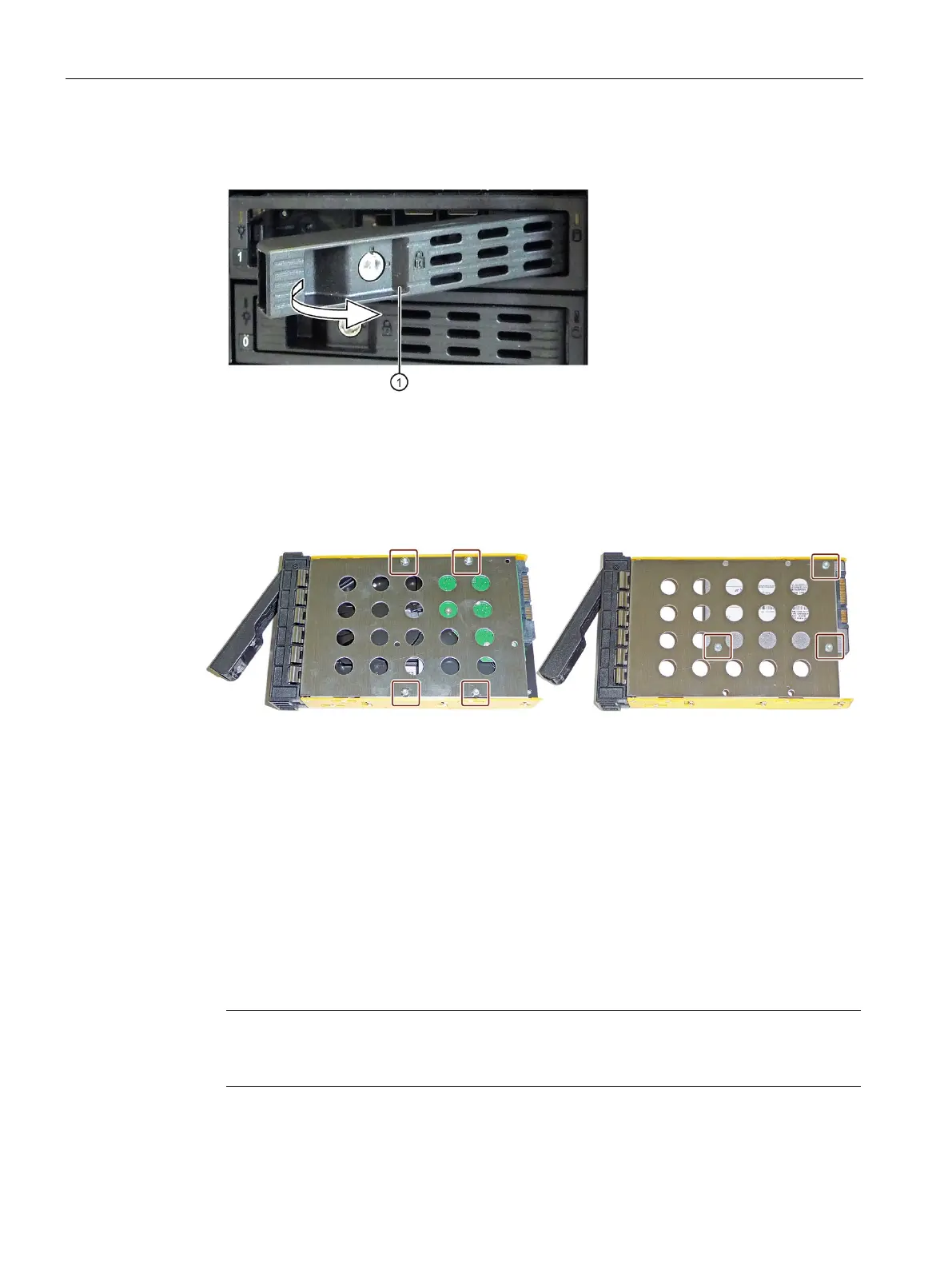

4. Reach into the notch ① in the bracket of the removable tray and pull out the bracket in the
direction of the arrow up to a slight resistance.
The removable tray is pushed out of the drive cage by leverage.
5. Grip the removable tray from the front in the middle at the top and bottom and pull the
removable tray completely out of the device.
6. Loosen the highlighted screws on the bottom of the removable tray and remove the drive.
The left figure shows as drive a 3.5" HDD, the right figure a 2.5" SSD.
7. Carefully insert the new drive into the removable tray.
Take care not to touch the contacts of the drive when you do this.
8. Fasten the new drive with the screws to the base of the removable tray.
Only use the original screws.
9. Carefully insert the removable tray into the drive cage of the device again.
10.Fold the tray bracket out of the removable tray as far as it will go and slide the removable
tray fully into the drive cage.
Ensure that the removable tray fits tightly in the drive cage.
11.Close the tray bracket.
12.Lock the removable tray with the key.
Note
The removable tray must always be locked to ensure reliable operation of the devices with
removable trays.
