Expanding and assigning parameters to the device
6.6 Installing and removing drives
Operating Instructions, 01/2021, A5E43920357-AA
123
6.6.4 Install the internal drive on the side panel of the device
Requirement
• You know the important safety instructions under "Safety instructions on device and
system extensions (Page 48)".
• The device is equipped with a drive cage type A or type B.
• A device with standard enclosure.
• You know the information under:
– Installation conditions for drives in drive cage type A (Page 105)
– Installation conditions for drives in drive cage type B (Page 115)
• A drive bay plate with a corresponding drive (HDD) approved for this device. For
information on replacement parts, refer to "Hardware accessories (Page 35)".
• T10 screwdriver
Procedure

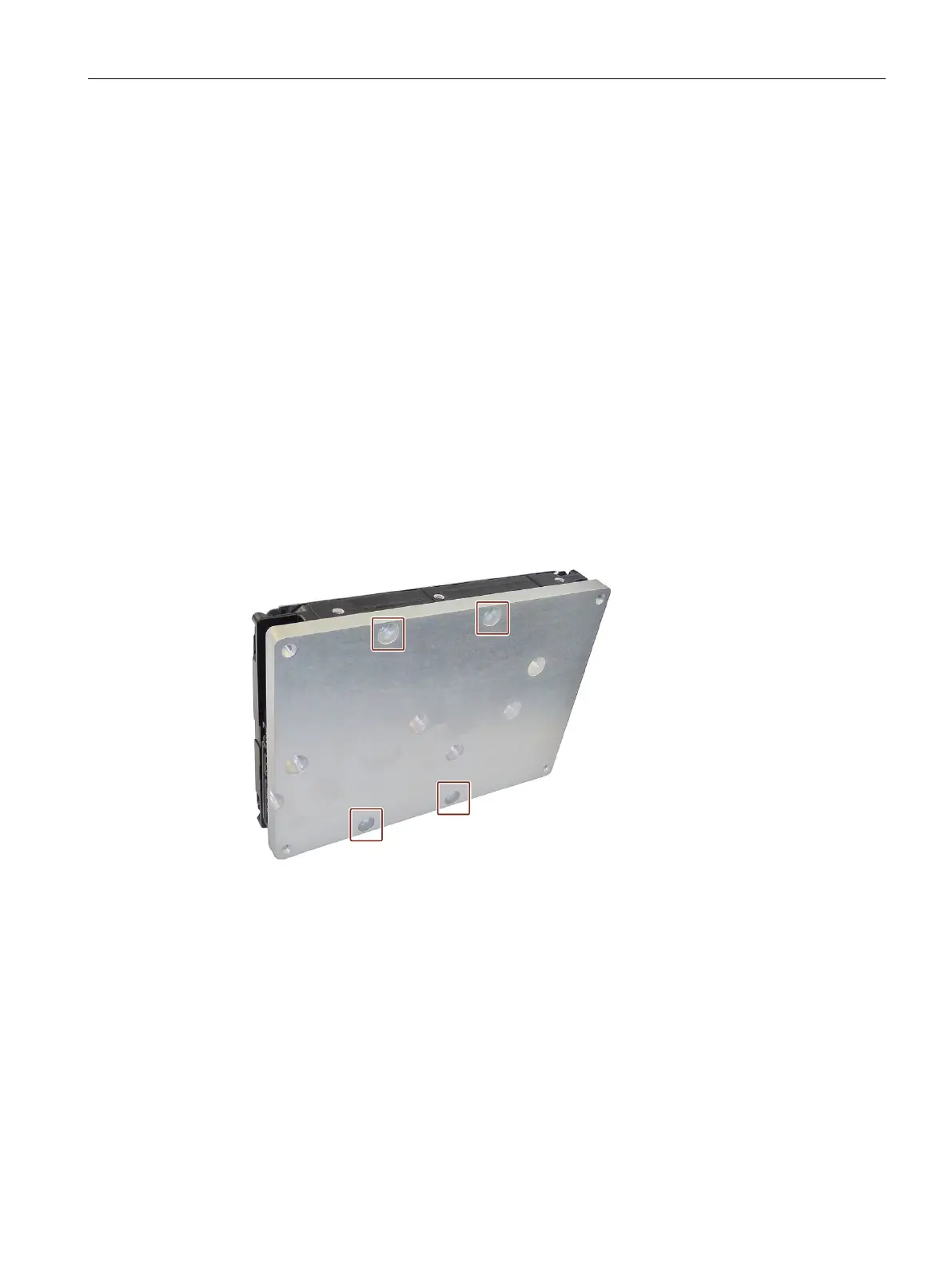

1. Screw the drive to the drive bay plate (available as option, not included in scope of delivery)
at the marked holes.
