Expanding and assigning parameters to the device
6.6 Installing and removing drives
124 Operating Instructions, 01/2021, A5E43920357-AA

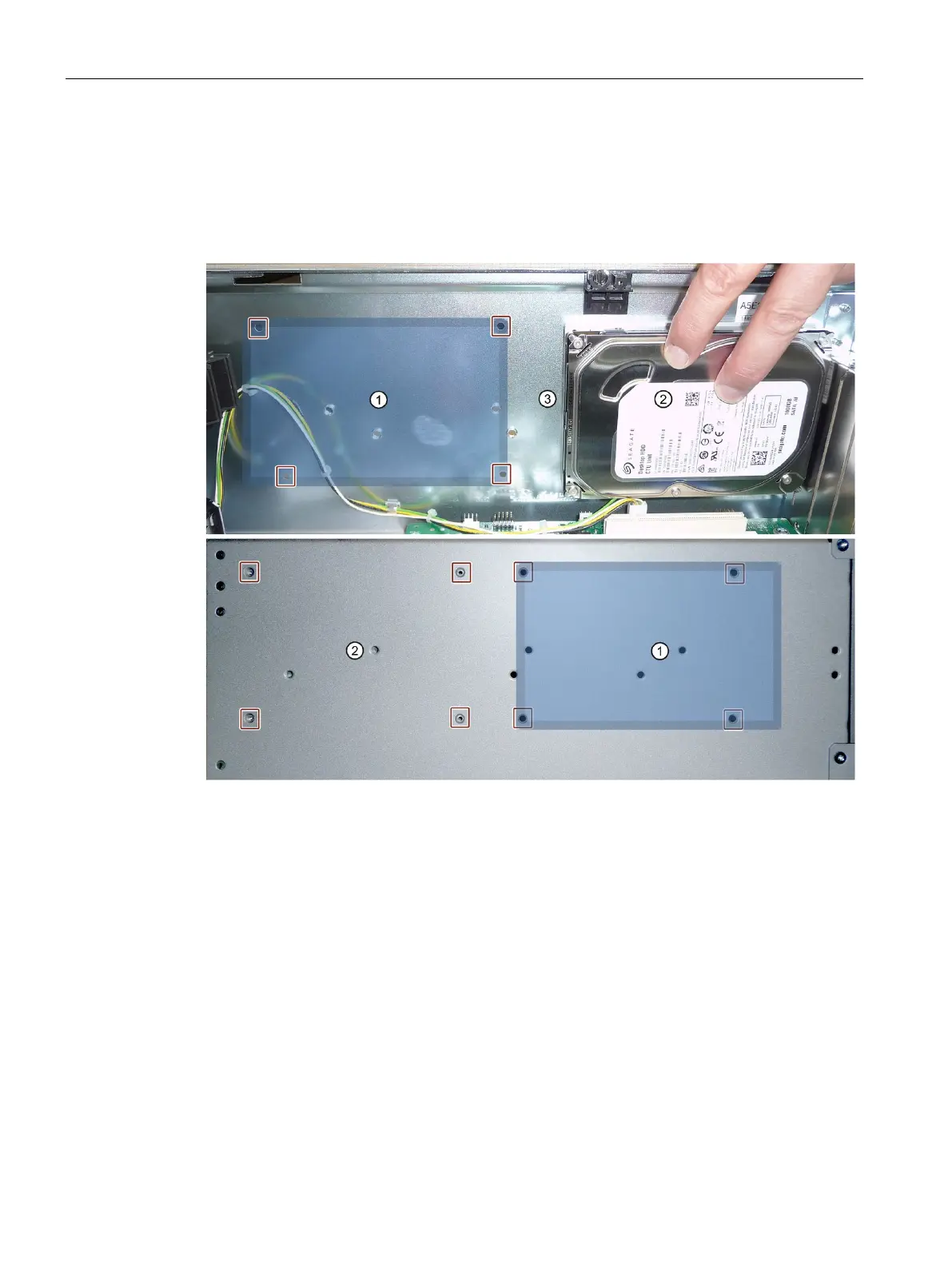

2. Screw from outside the drive bay plate on the inside to the side panel of the enclosure, at
position ① or position ②. The SATA connections each lie in the middle ③.
3. Connect the SATA cables to the required SATA connectors of the motherboard and to the
drive (position ③).
4. Close the device.
5. Connect the power supply.

Siemens SIMATIC IPC547J Specifications

General

Brand	Siemens
Model	SIMATIC IPC547J
Category	Industrial PC
Language	English
