Expanding and assigning parameters to the device
6.6 Installing and removing drives
Operating Instructions, 01/2021, A5E43920357-AA
111
6. Connect the data cables to the 5.25" mounting frame.
7. Carefully insert the removable tray into the 5.25" mounting frame.
8. Fold the bracket out completely and slide the removable tray on the bracket completely into
the 5.25" mounting frame.
9. Make sure that the removable tray is firmly seated in the 5.25" mounting frame.
10.Close the tray bracket.
11.Lock the removable tray with the key.
12.Close the device.
13.Connect the power supply.
6.6.1.4 Installing a backplane for removable tray
The backplane of the removable tray is installed from inside at the back end of the drive cage
type A and is equipped with interfaces for data cables to the motherboard.
This enables the convenient connection of the data cables from the motherboard to the drive
in the removable tray at these interfaces.

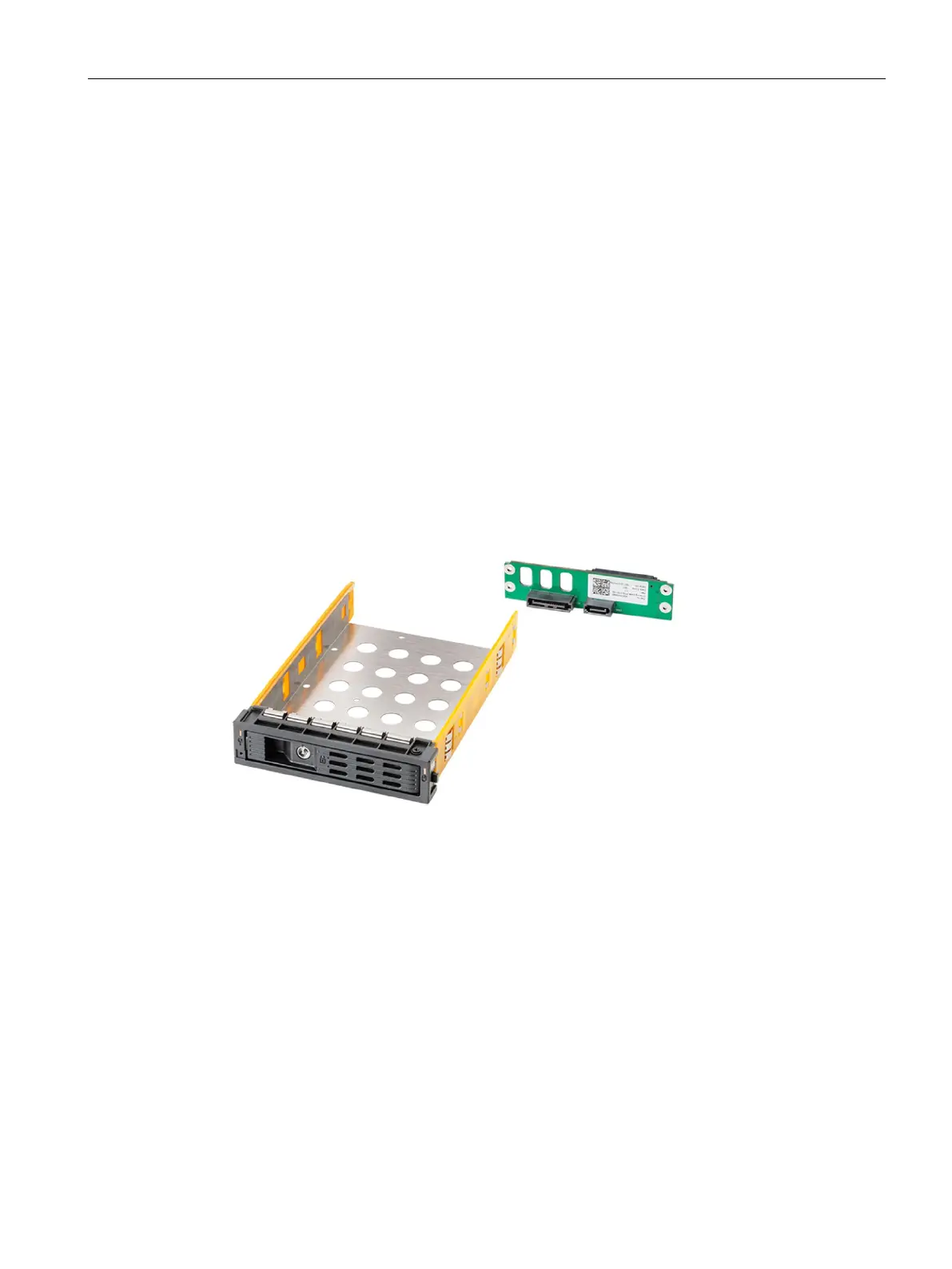

Removable tray with backplane
Requirement
• You know the important safety instructions under "Safety instructions on device and
system extensions (Page 48)".
• An original replacement part. For information on replacement parts, refer to "Hardware
accessories (Page 35)".
• The device is equipped with the drive cage type A.
