Technical specifications
8.10 Technical specifications of the telescopic rails
Operating Instructions, 01/2021, A5E43920357-AA
159

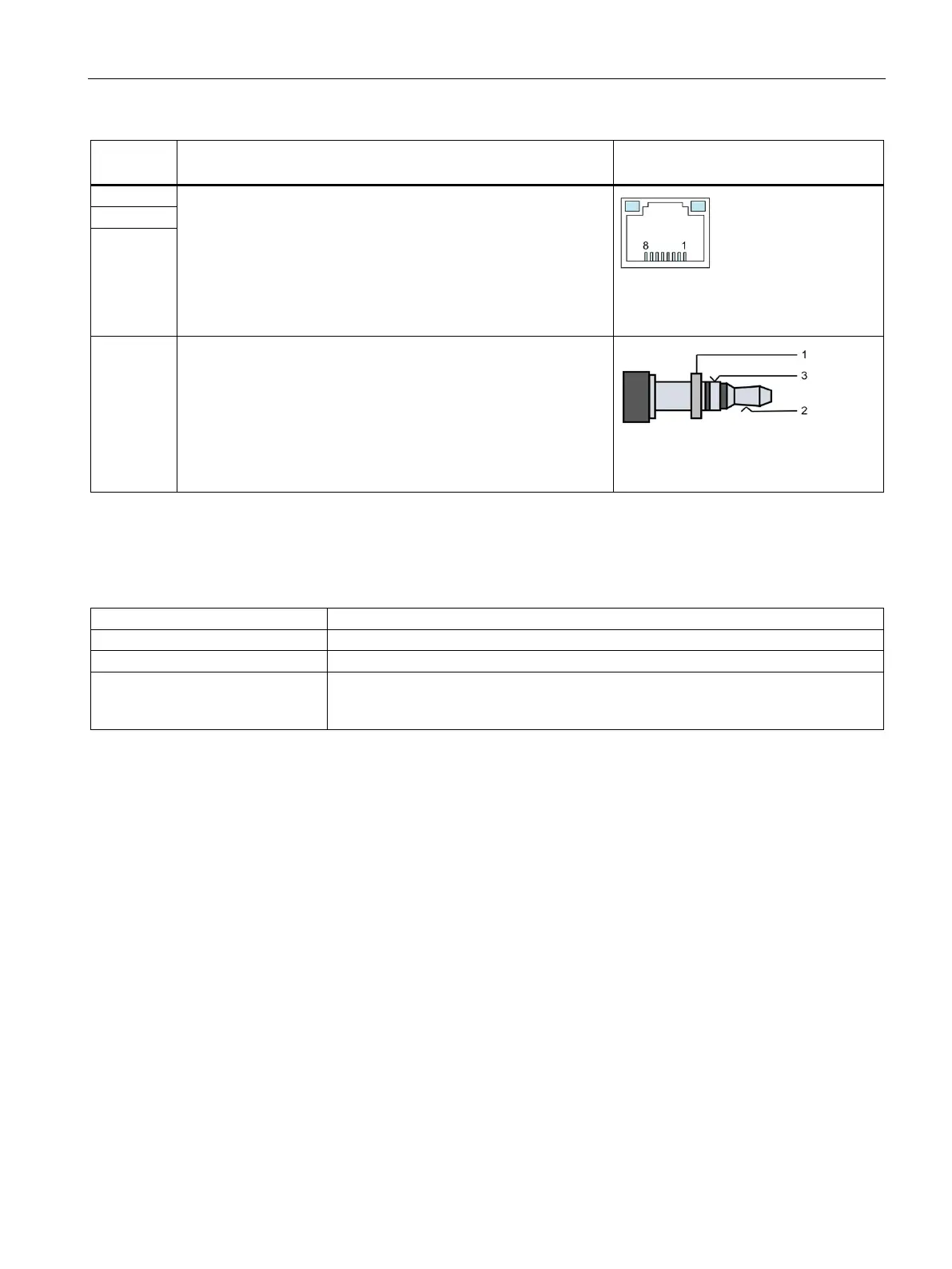

Connectio
n socket
Description Assignment
LAN 1
LAN:
Connection for Ethernet with RJ45 connector
The LAN ports are numbered on the enclosure. The numbering
by the operating system may differ from this.
Data transmission rate: 10/100/1000 Mbps
Wake on LAN, remote boot
8-pin
RJ45
(up to 1 Gbps)
LAN 2
LAN 3
Audio
Connection for 3.5 mm audio stereo jack:
Realtek ALC887, 8-channel DAC support
Line IN (light blue)
Headphone OUT (lime)
(max. 2 W at 4 Ω)
Microphone IN (pink)
1: Ground
2: Audio links
3: Audio right
8.10 Technical specifications of the telescopic rails
Ultimate load per pair
30 kg
Full extraction length
470 mm
Rail thickness
9.7 mm
Mounting screws
M5 x 6 mm
The mounting screws of the telescopic rails may not protrude by more than 5 mm into
the enclosure.
See also
Dimension drawing of the telescope rails (Page 165)
