Device maintenance and repair
7.3 Removing and installing hardware
Operating Instructions, 01/2021, A5E43920357-AA
133
10.Take the new fan and place the holder for the adapter plug ⑥ on the new fan as seen in the
figure and snap the holder into place.
11.Then place the new fan on the fan support.

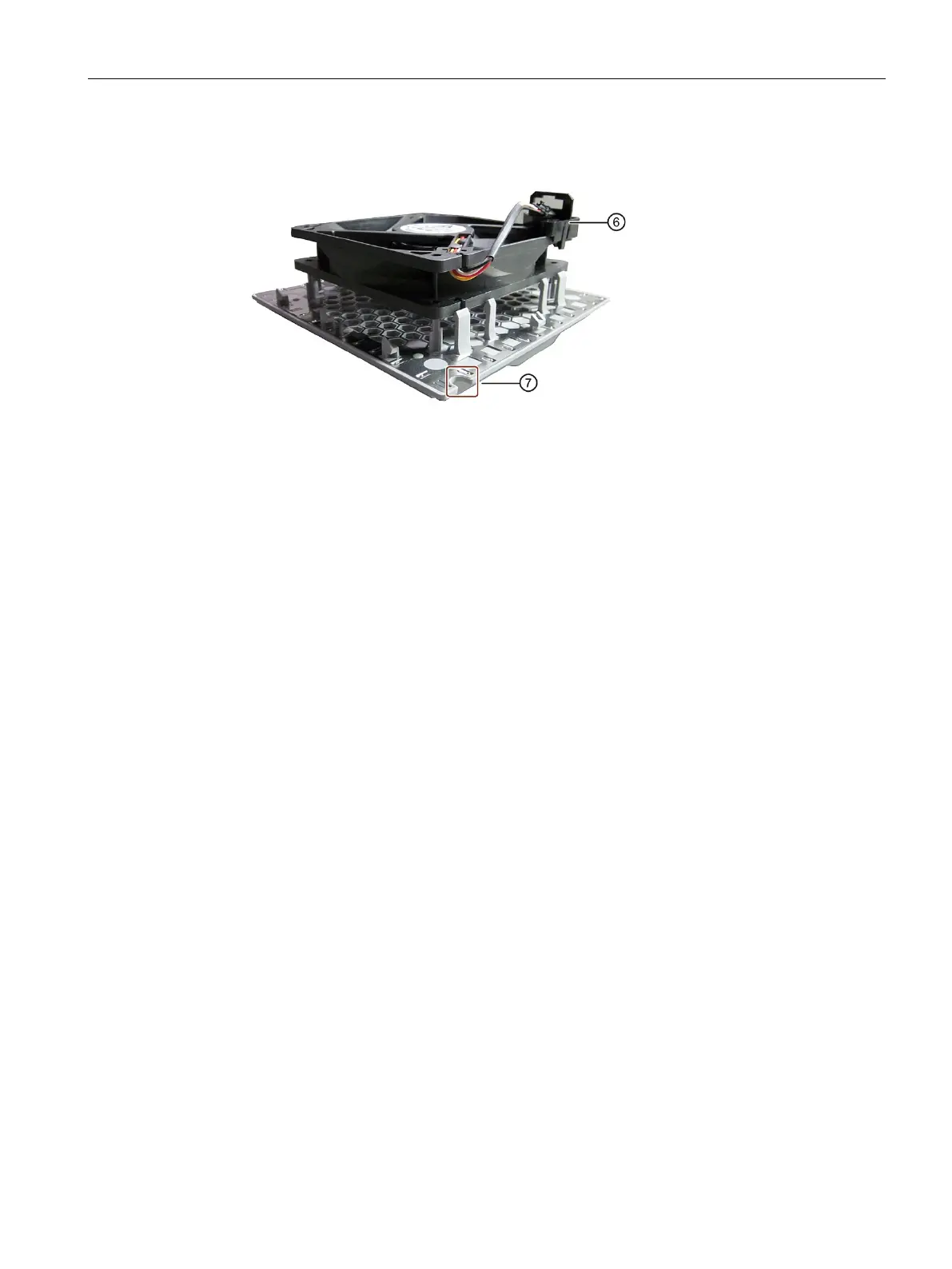

Use the highlighted positions as a guide. Notch in fan support ⑦ and holder for adapter
plug ⑥.
12.Snap the fan into place at the locking latches of the fan support ④.
13.Install the larger adapter plug in the holder for the adapter plug ⑥. Press on the side of the
clips ③ of the larger adapter plug.
14.Insert the small fan cable connector ② in the larger adapter connector again.
15.Place the fan support with the new fan on the front of the device.
See also
Maintenance intervals (Page 129)
7.3.2 Change the fan on drive cage type A
This fan is only installed in the removable tray (drive cage type A) for configurations with
RAID and the hard disk type "Enterprise".
Requirement
• You know the important safety instructions under "Safety instructions on device and
system extensions (Page 48)".
• The device is equipped with the drive cage type A.
• An original spare part, i.e. a fan of the same type. For information on replacement parts,
refer to "Hardware accessories (Page 35)".
• There is no 5.25" component in the corresponding mounting location, see information
under "Installation conditions for drives in drive cage type A (Page 105)".
