Expanding and assigning parameters to the device
6.3 Installing and removing memory modules
98 Operating Instructions, 01/2021, A5E43920357-AA
6.3.2 Installing memory modules
Requirement
• You know the important safety instructions under "Safety instructions on device and
system extensions (Page 48)".
• You know the Information on using memory modules. (Page 96)
Order when installing multiple memory modules
If you install several memory modules, install them one after the other in the following order:
• Memory module 1: DIMM_A1* slot
• Memory module 2: DIMM_A2 slot
• Memory module 3: DIMM_B1* slot
• Memory module 4: DIMM_B2 slot
The slots of the memory modules are labeled on the motherboard.
Procedure
1. Fully disconnect the device from the line voltage, see "Switching off the device (Page 72)".
2. Open the device. Be sure to follow the important instructions under "Open the device
(Page 93)".
3. To obtain better access to the memory modules, remove expansion cards (Page 96) if
required.

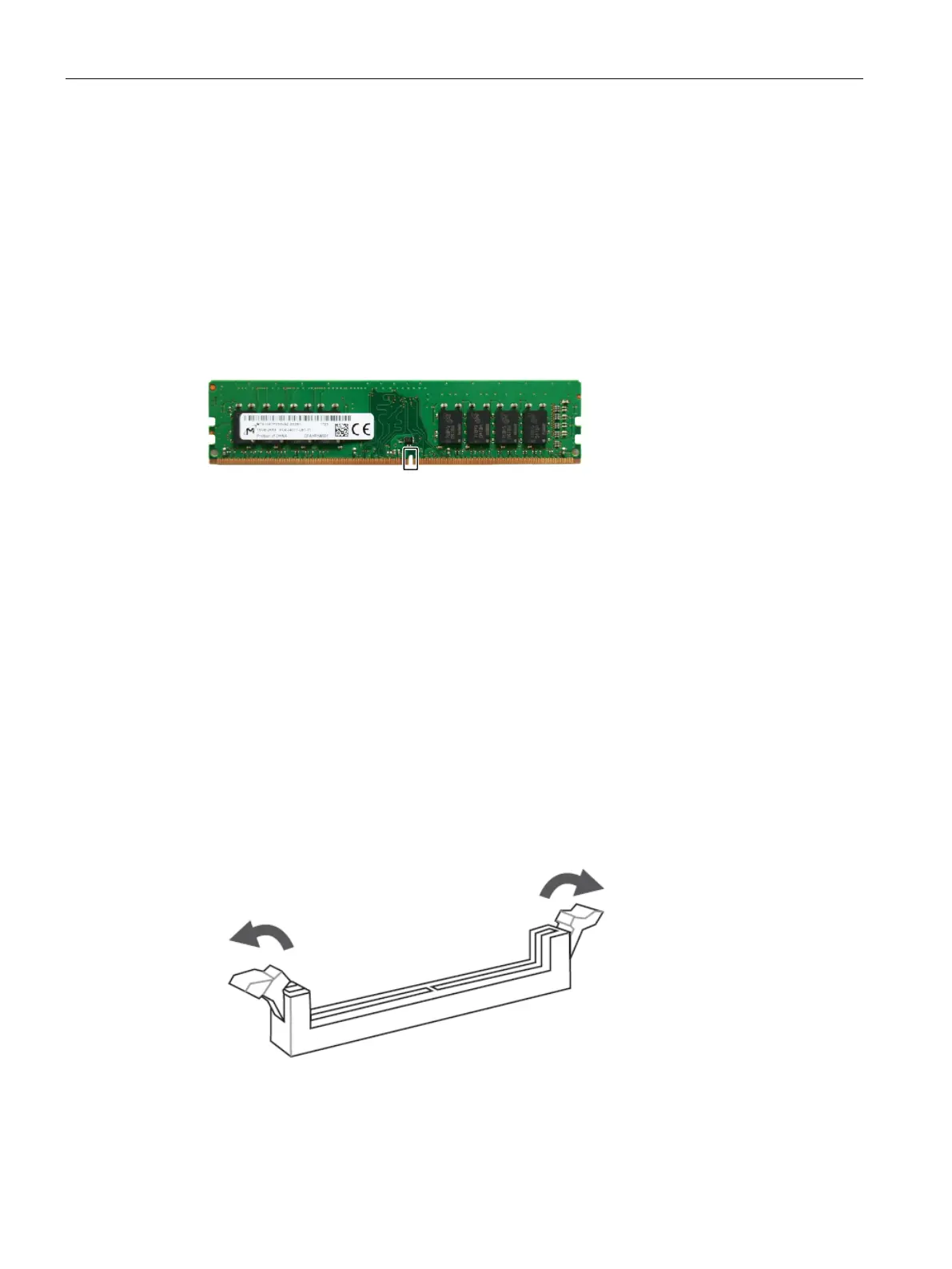

4. Open the two locks to the left and right of the slot.
