Expanding and assigning parameters to the device
6.3 Installing and removing memory modules
Operating Instructions, 01/2021, A5E43920357-AA
99
5. Remove the memory module from its packaging.
Hold it by the upper edges only.

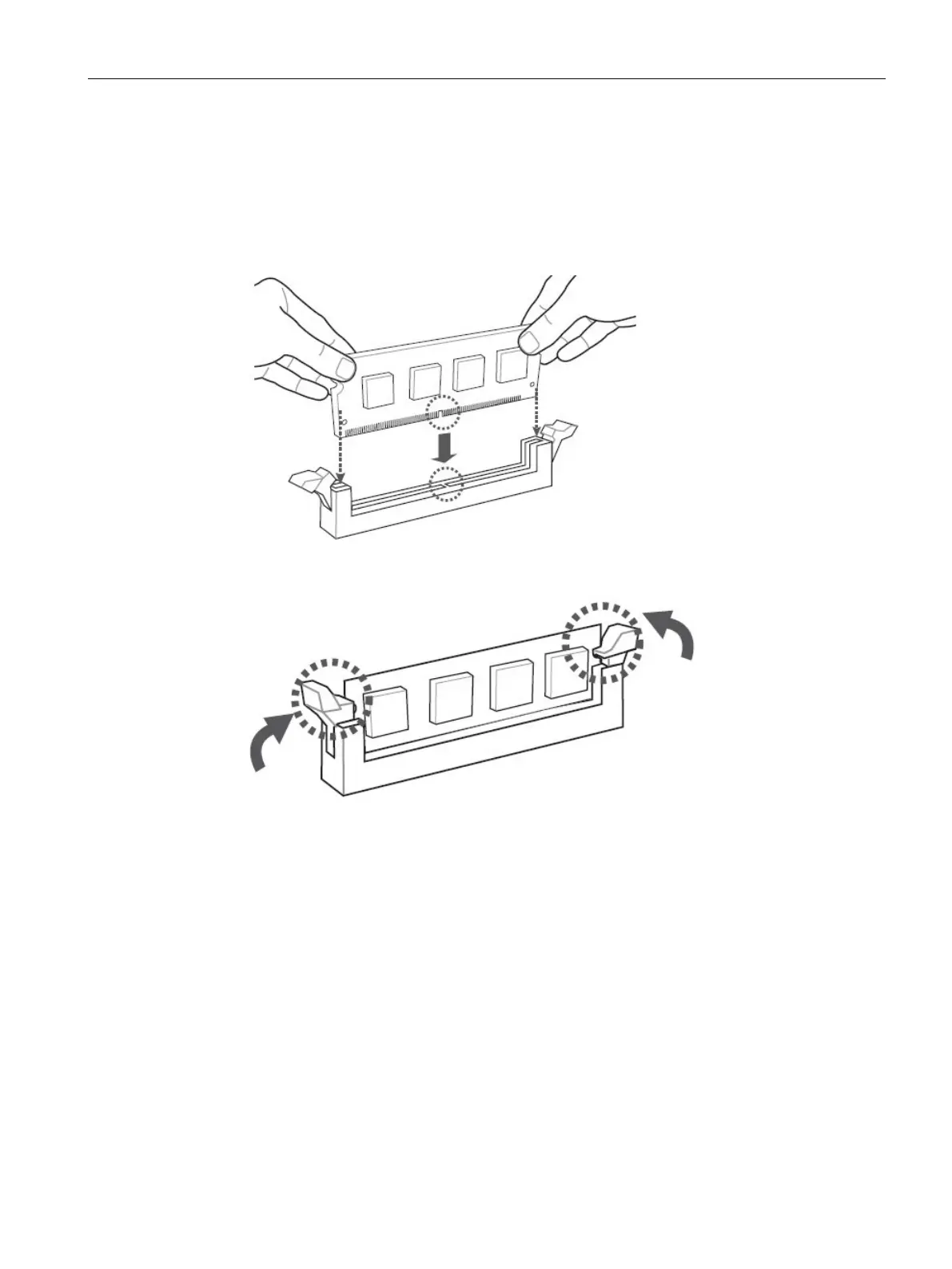

when inserting, pay attention to the cutout (see figure), which must be in line with the
coding of the base.
6. Insert the memory module in the slot perpendicular to the motherboard.
7. To prevent tilting, press evenly on both sides of the memory module until both interlocks
audibly engage.
8. Close the device.
Display of a changed memory configuration
A changed memory allocation is automatically recognized when the device is switched on.
