Product description
1.4 External design of the device
32 Operating Instructions, 01/2021, A5E43920357-AA
⑧
FAN
Fan status
OFF
No error
RED
Possible causes:
• Front fan faulty
• The fan on the processor heat sink is
faulty
• Fan on drive cage type A faulty
• Fan of simple power supply faulty (non-
redundant power supply)
⑨
⑩
⑪
⑫
HDD3 ALARM
HDD2 ALARM
HDD1 ALARM
HDD0 ALARM
For devices with SMS-W480
motherboard:
HDD alarm in combination
with RAID and monitoring
software.
The number of the HDD
alarm corresponds to the
number of mounting
locations of drives, see "Drive
cage type A (Page 18)" and
"Drive cage type B
(Page 20)".
OFF
RAID is OK
A RED LED is lit up
The associated drive is not OK
All RED LEDs are
flashing
RAID synchronization running, RAID is not OK
The hard disk newly integrated in case of
error is synchronized with an existing hard
disk.
All RED LEDs are lit
up
RAID is not OK
The faulty drive could not be localized by the
monitoring software. It may be possible to
detect the defective drive with the RAID
software.
Information is available at "RAID1 system
(Page 76)", "RAID5 system (Page 76)" or "Hot-
spare drive in RAID1 or RAID5 systems
(Page 77)".

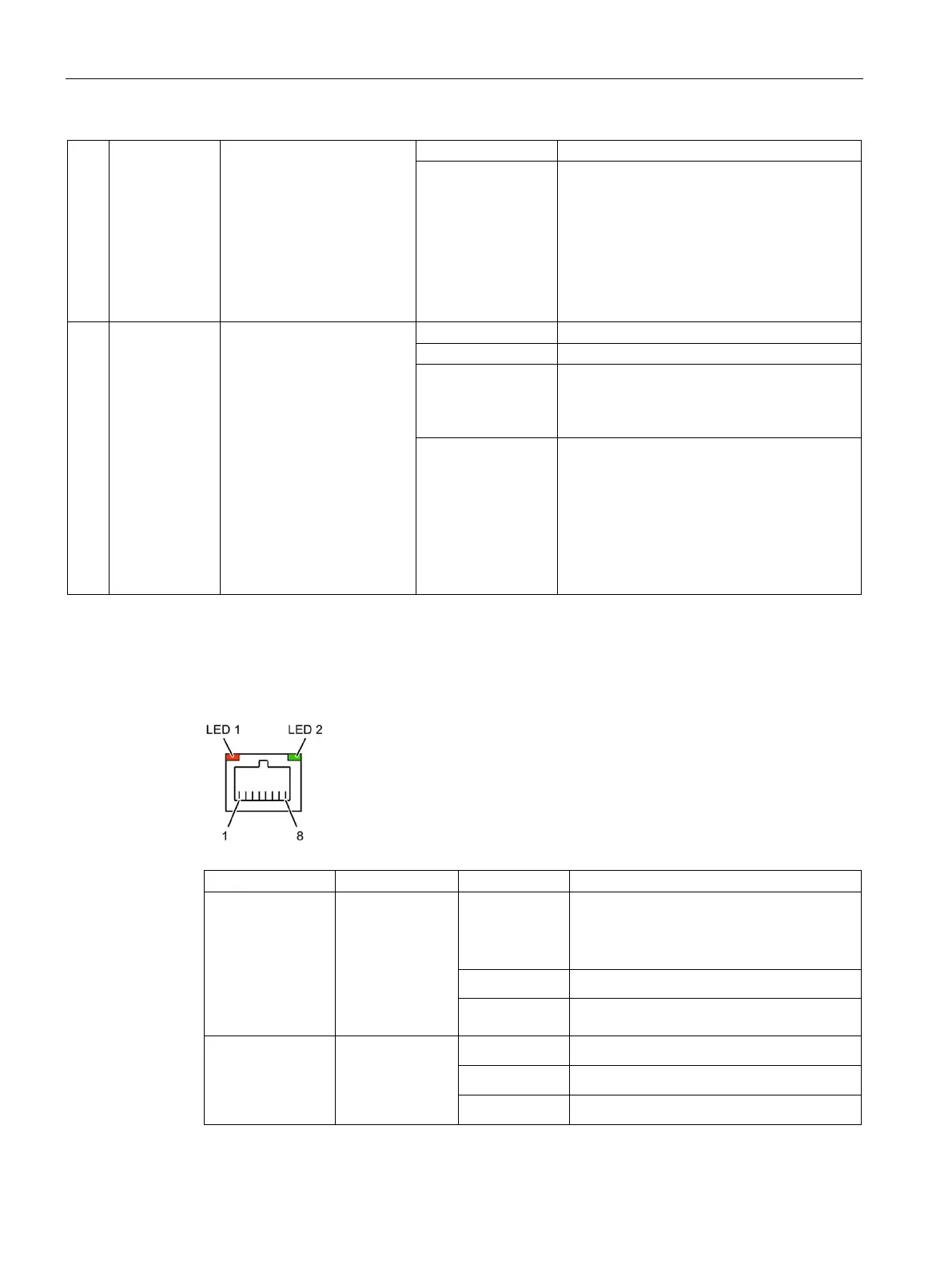

1.4.8.2 Status display of the Ethernet interface
The Ethernet interfaces are numbered on the enclosure to identify them clearly.
The numbering by the operating system can differ.
Status display
Meaning
Status
Meaning of the status
LED 1
Connection
status
OFF
• No cable connected
• Cable disabled
• Interface disabled
ORANGE
•
Active cable connected
ORANGE
flashing
• Data transfer active
LED 2
Data
transmission rate
OFF
• 10 Mbps
ORANGE
•
100 Mbps
GREEN
• 1000 Mbps
