Expanding and assigning parameters to the device
6.6 Installing and removing drives
Operating Instructions, 01/2021, A5E43920357-AA
121

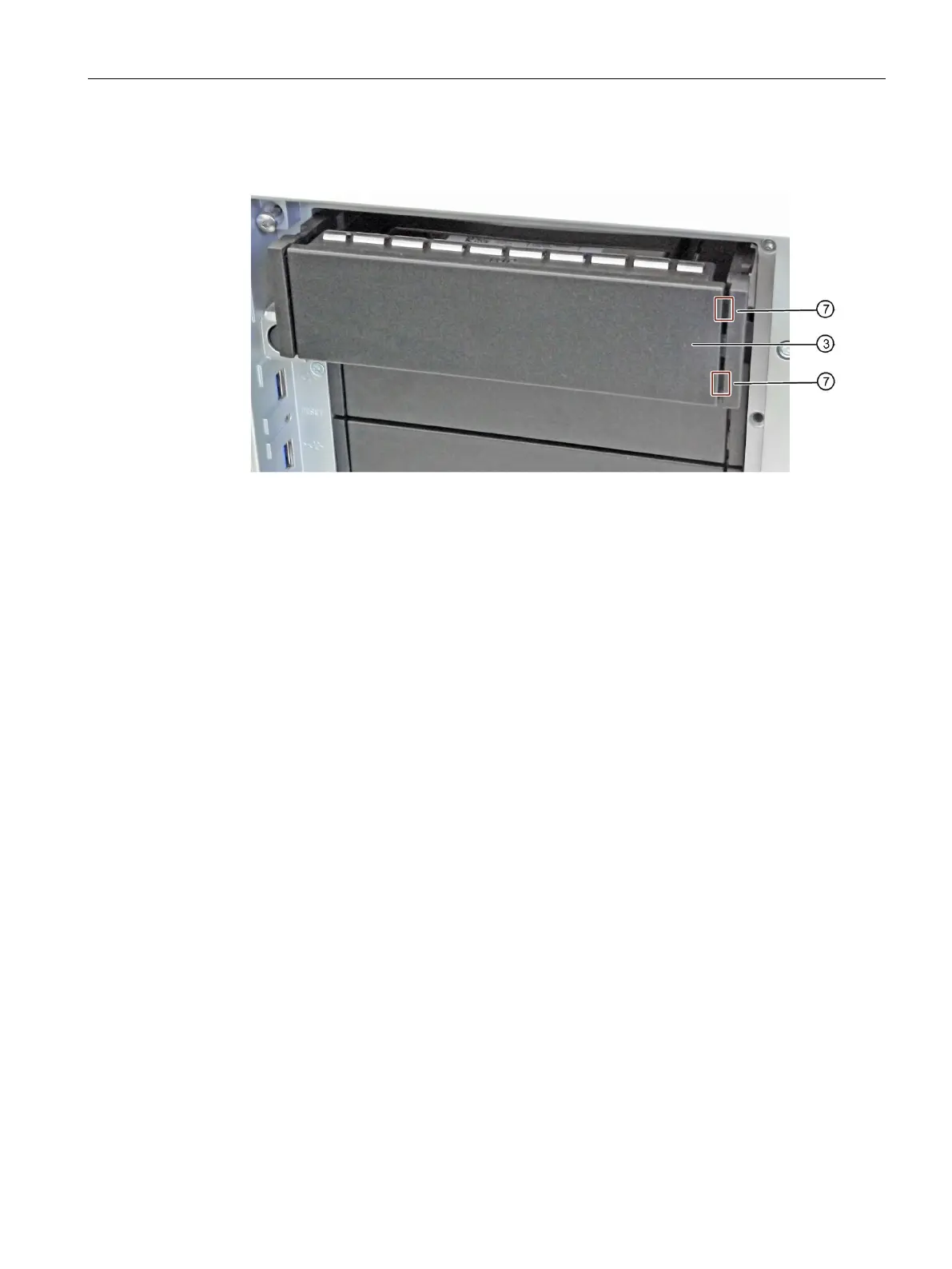

12.Insert the drive bay cover ③ between the drive mounting bars ②. Ensure that the pins
engage in the openings on the left and right ⑦.
13.Push the drive bay in fully and evenly until you hear it click into the drive cage.
14.Connect the power and data cables to the drive.
15.Close the device.
6.6.3 Installing a 5.25" drive
You can install 5.25" drives in the drive cage type A and drive cage type B.
Requirement
• You know the important safety instructions under "Safety instructions on device and
system extensions (Page 48)".
• The device is equipped with a drive cage type A or type B.
• You know the information under:
– Installation conditions for drives in drive cage type A (Page 105)
– Installation conditions for drives in drive cage type B (Page 115)
• An original spare part, that is, a 5.25" drive approved for this device. For information on
replacement parts, refer to "Hardware accessories (Page 35)".
• T10 screwdriver
Procedure
1. Fully disconnect the device from the line voltage, see "Switching off the device (Page 72)".
2. Open the device. Be sure to follow the important instructions under "Open the device
(Page 93)".
