Expanding and assigning parameters to the device
6.6 Installing and removing drives
122 Operating Instructions, 01/2021, A5E43920357-AA

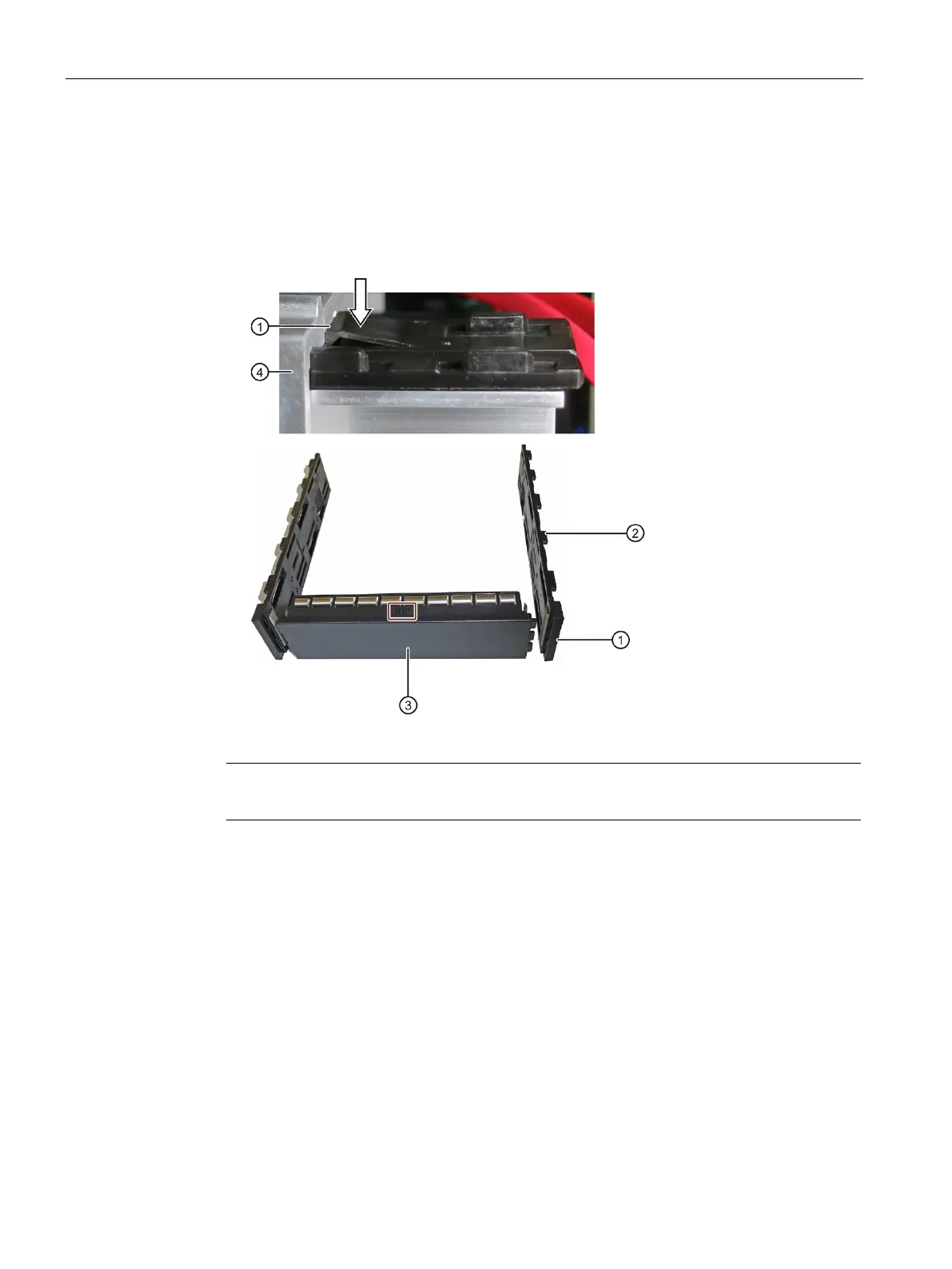

3. Remove the installed empty 5.25" component from the corresponding mounting location:
– If available: Disconnect all data cables from the 5.25" component.
– Press on the surfaces ① on the two side mounting bars ② of the 5.25" component.
– Press and hold surface ① to push the 5.25" component forward out of the drive holder
④.
4. Remove the left and right mounting bars ② from the cover ③.
The mounting bars are labeled "L" and "R". The top of the blanking cover is also marked.
5. Screw the right and left drive mounting bars to the new drive.
Take care not to touch the contacts of the drive when you do this. The blanking plate is no
longer required.
6. Slide the new drive with the drive mounting bars evenly backwards into the guide rails of
the drive cage and without tilting, until it clicks into place.
7. Close the device.
