Dimension drawings
9.4 Dimension drawing of the telescope rails
Operating Instructions, 01/2021, A5E43920357-AA
165
9.4 Dimension drawing of the telescope rails

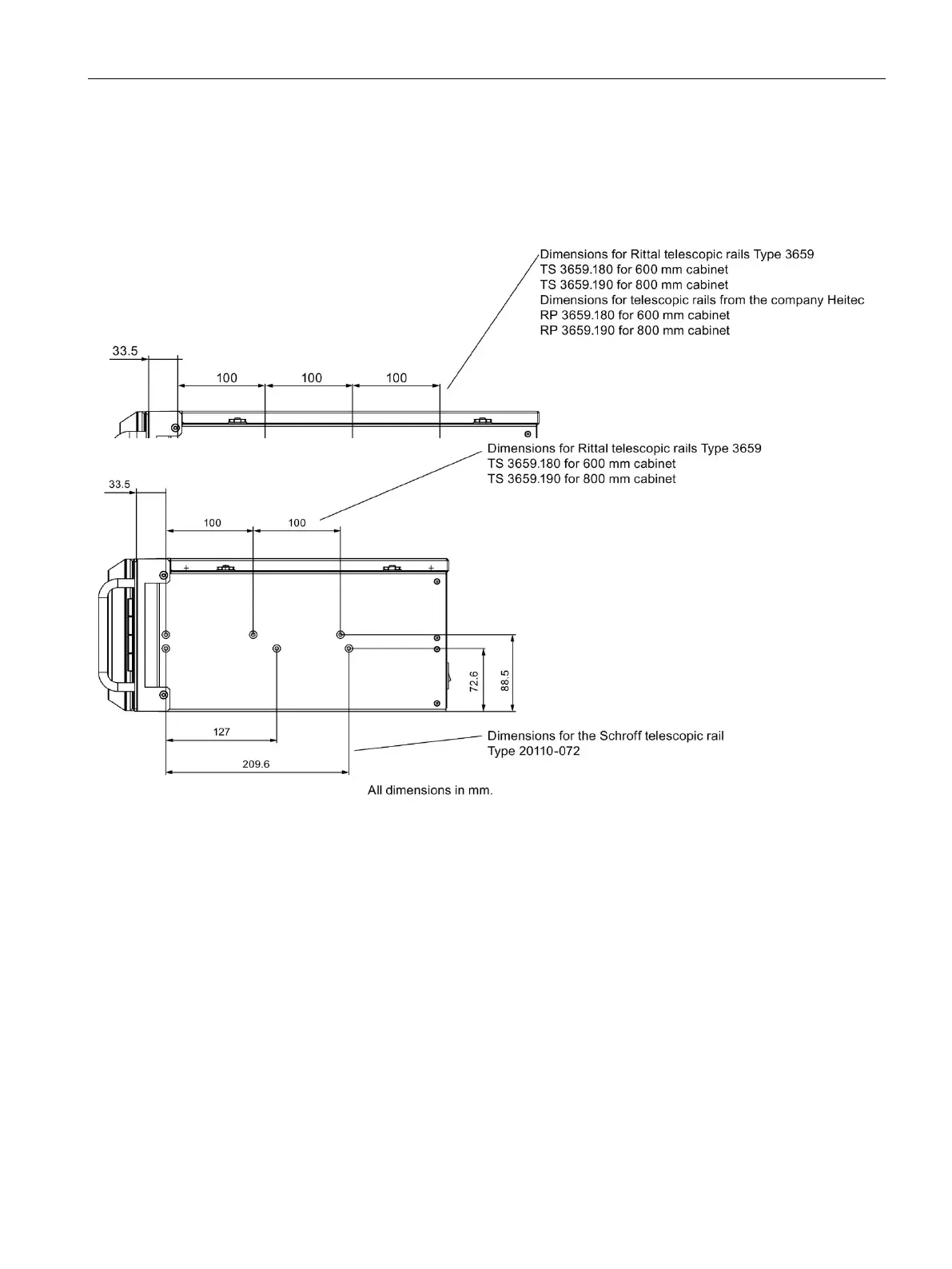

Device with standard enclosure: Dimensions for bore holes for telescopic rails
Device with short enclosure: Dimensions for bore holes for telescopic rails
