Device maintenance and repair
7.3 Removing and installing hardware
132 Operating Instructions, 01/2021, A5E43920357-AA

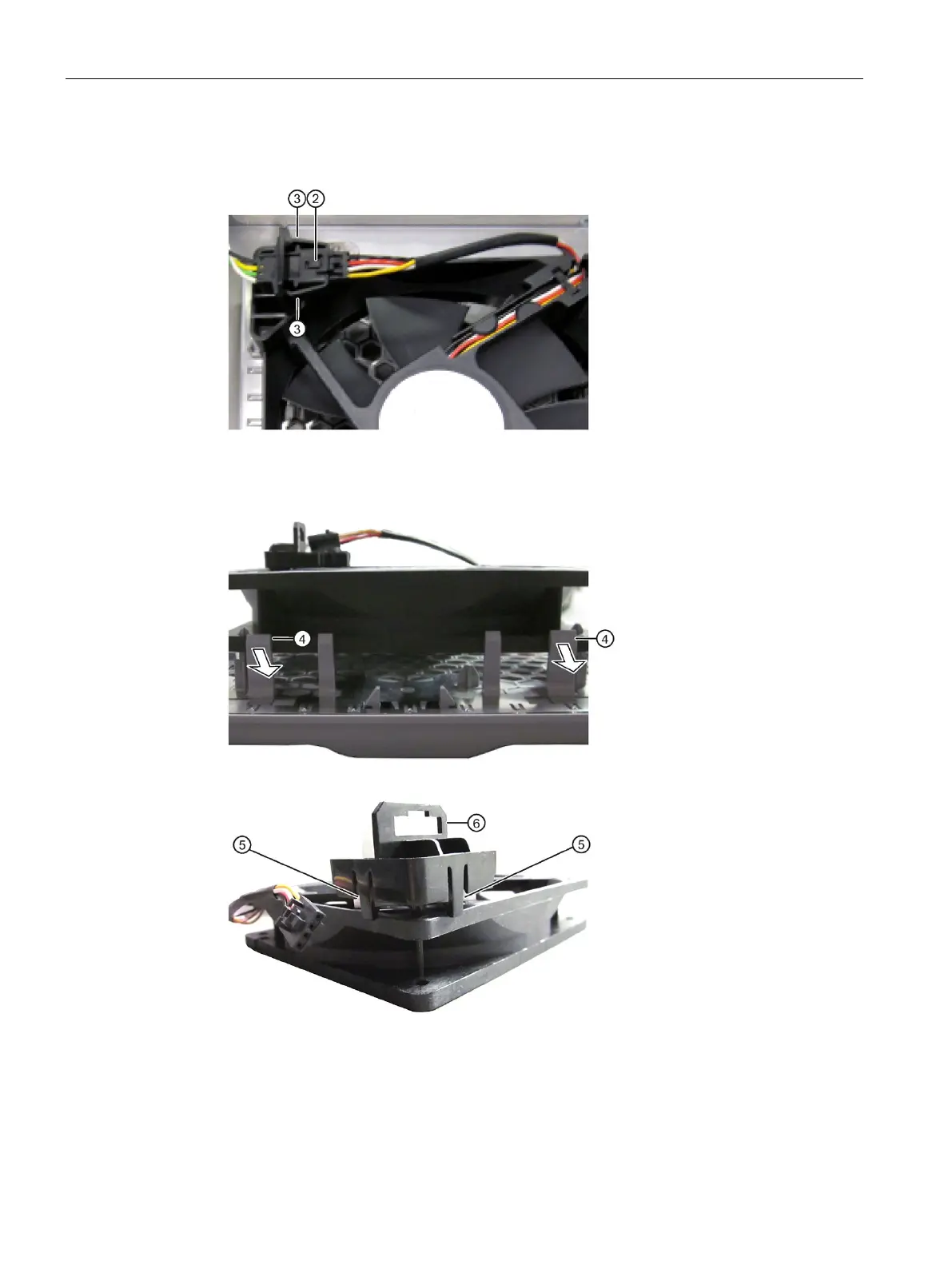

6. Press on the clip on the small fan cable plug connector ② and remove the connector from
the larger adapter plug,
7. Press on the side of the clips ③ and loosen the adapter plug from the cable holder.
8. Loosen the locking latches ④ of the fan support one after the other at the front and rear and
remove the fan.
9. Loosen the locking latches ⑤ of the holder for the adapter plugs ⑥ and remove the holder.
