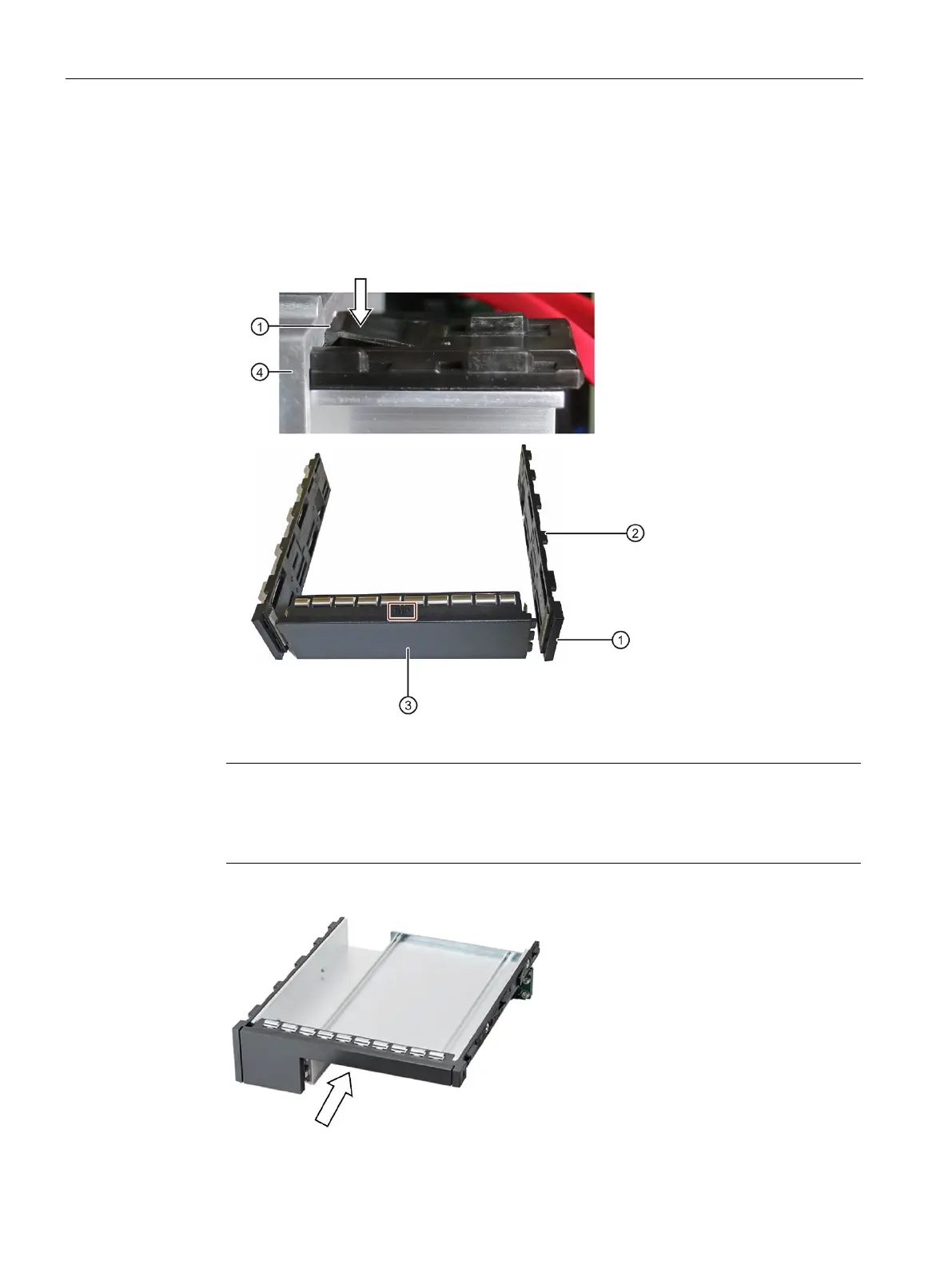

3. Remove the installed empty 5.25" component from the corresponding mounting location:
– If available: Disconnect all data cables from the 5.25" component.
– Press on the surfaces ① on the two side mounting bars ② of the 5.25" component.
– Press and hold surface ① to push the 5.25" component forward out of the drive holder
④.
4. Remove the left and right mounting bars ② from the cover ③.
Reinstalling an empty 5.25" component
The mounting rails are labeled with "L" and "R" and can be re
-installed on the blanking
cover in the same way if necessary. The top of the blanking cover is also marked.
5. Slide the 5.25" mounting frame into the drive cage from the front.
