Siemens SIMATIC IPC547J User Manual

Product description
1.4 External design of the device
Operating Instructions, 01/2021, A5E43920357-AA
17

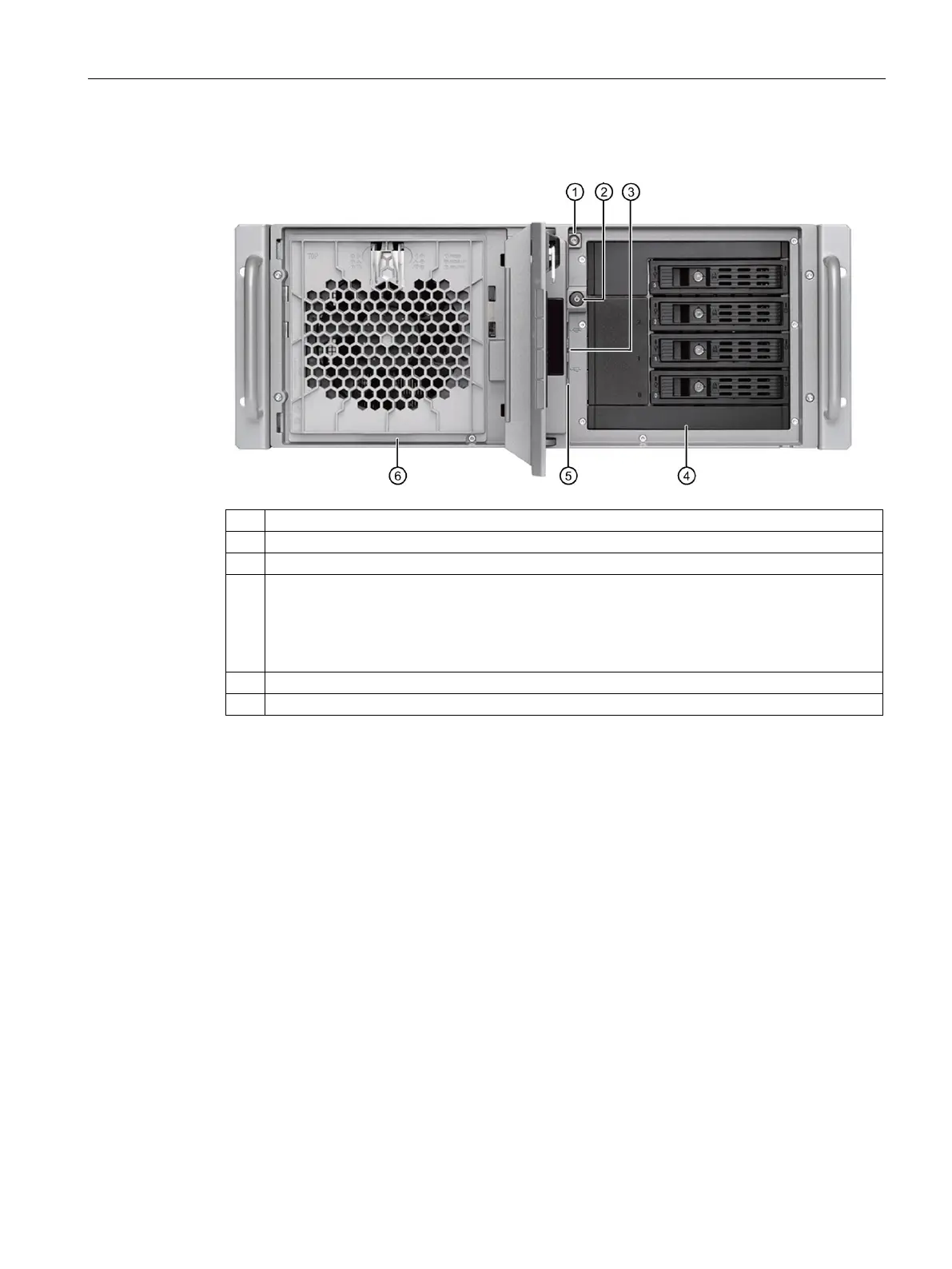

Front: Front door is open
①
Locking screw of the enclosure cover
②
On-off button, see Operator controls (Page 28)
③
Rese pushbutton, see Operator controls (Page 28)
④
Drive cage (in this case type A); depending on the expansion variant, see:
•
Drive cage type A (Page 18)
•
Drive cage type B (Page 20)
•
Type C drive holder (Page 21)
⑤
Interfaces on the front of the device, see Device ports (Page 24)
⑥
Front fan support
