Hardware description
A.1 Motherboard
172 Operating Instructions, 01/2021, A5E43920357-AA

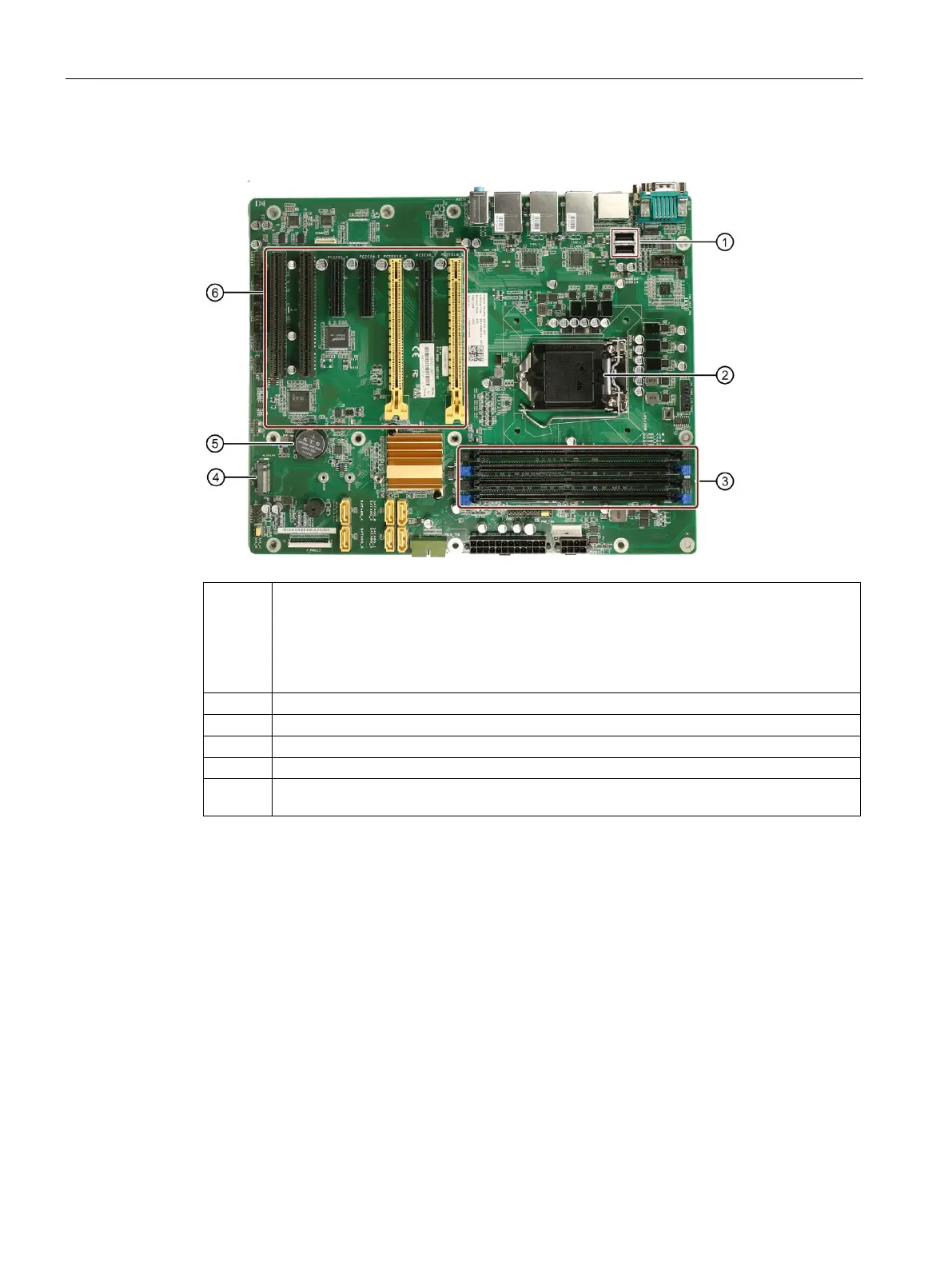

Layout of the SMS-W480 motherboard
Two sockets of the internal USB interfaces
•
(X68)
(X69)
backwards compatible to USB 1.1; each 500 mA / high current
1
Four slots for memory modules
Direct plug socket for M.2 NVMe SSD
Slots for expansion cards, see "Technical specifications of the expansion card slots
(Page 153)".
Sum of the currents on the USB interfaces of the device (including the internal USB interfaces) ≤ 3 A
Technical features of the motherboard
Technical features of the motherboard can be found under "General technical specifications
of the motherboard (Page 152)".
