6.6 "SFC Instance" faceplate, "Block contacts" view
"Block contacts" view
The upper part of the view is identical to the following view: "SFC Instance" faceplate, "Actual
Values" view (Page 37).
The following are also displayed:
A line containing the name, block type, status, and a button for opening the corresponding
faceplate for each block contact.

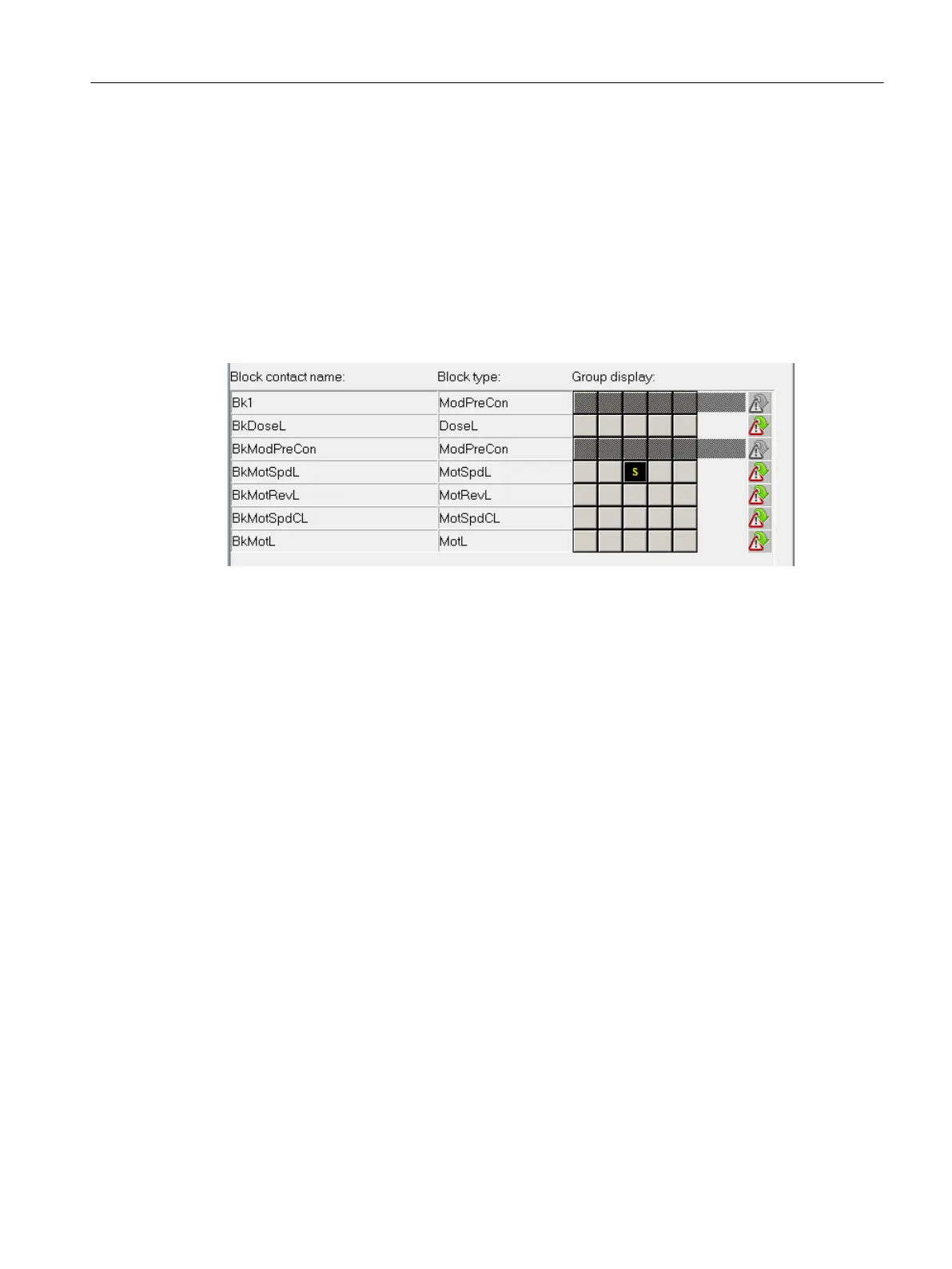

"Block contacts" view of an SFC instance
Operating and monitoring SFCs
6.6 "SFC Instance" faceplate, "Block contacts" view
SFC Visualization (V9.0)
Programming and Operating Manual, 05/2017, A5E41356392-AA 41
