6.8 "SFC Instance" faceplate, "Parameters" view

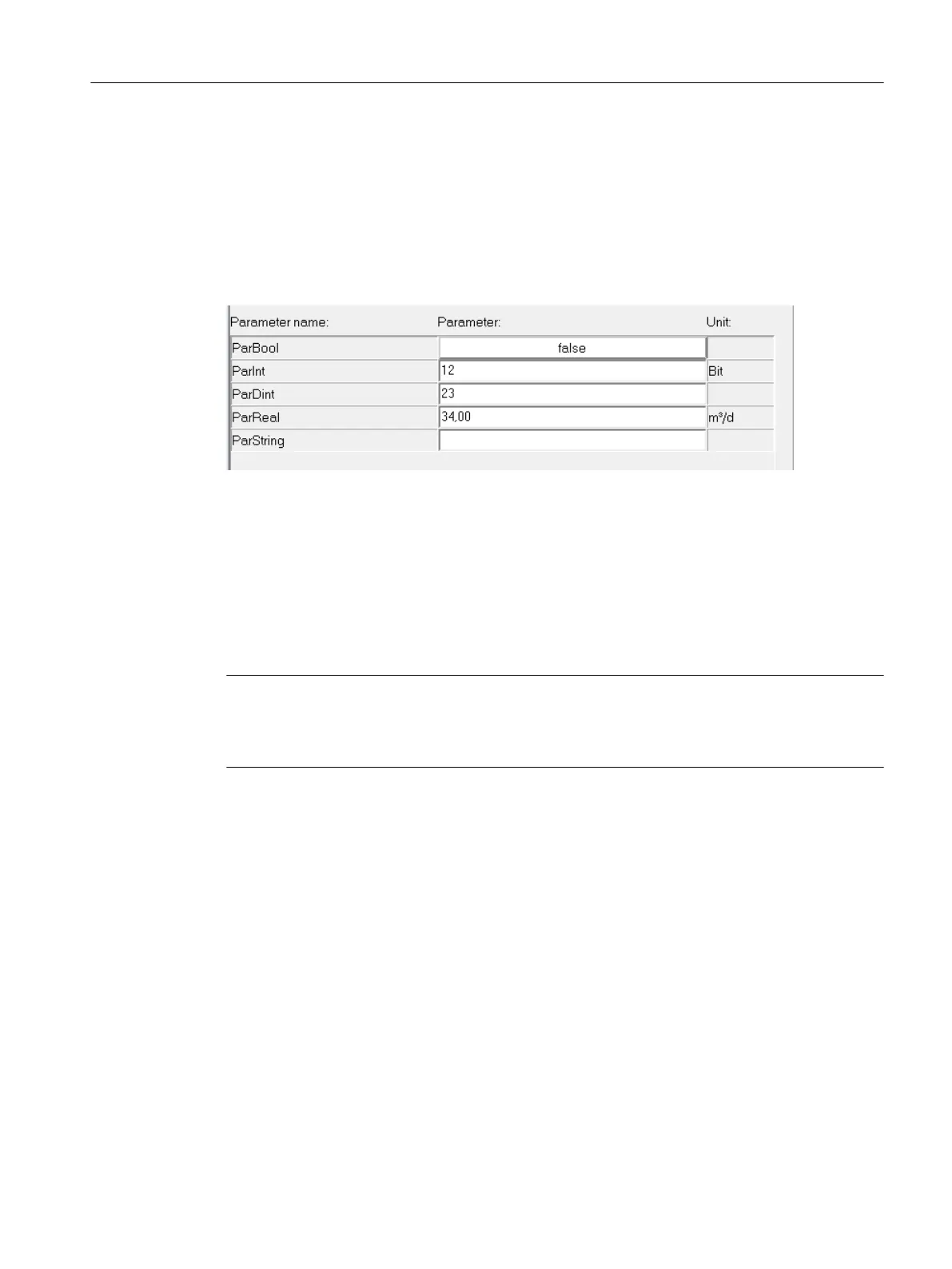

"Parameters" view
This view contains the elements of the following view: "SFC Instance" faceplate, "Actual
Values" view (Page 37), as described in 1 and 2 (see there). Instead of the elements listed
under 6, the window shows the active control strategy and the OS-relevant parameters.
Changing parameters
You can change the value of a parameter in MANUAL or AUTO operating mode if you have
been assigned the relevant permissions. The changed parameter is written to the AS
immediately, i.e., at first, it is only effective in the CPU. To make changed values also available
in offline data in the ES, you need to run a read-back at the specified time. Otherwise, the next
time a complete download is performed, the original configured parameter values will be written
to the CPU.
Note
If a parameter value is changed, the change must be confirmed by pressing the RETURN key
(exception: values with the Boolean data type). A window then opens in which the change
must be confirmed once more by clicking "OK". Otherwise, the change is not adopted.
Operating and monitoring SFCs
6.8 "SFC Instance" faceplate, "Parameters" view
SFC Visualization (V9.0)
Programming and Operating Manual, 05/2017, A5E41356392-AA 43
