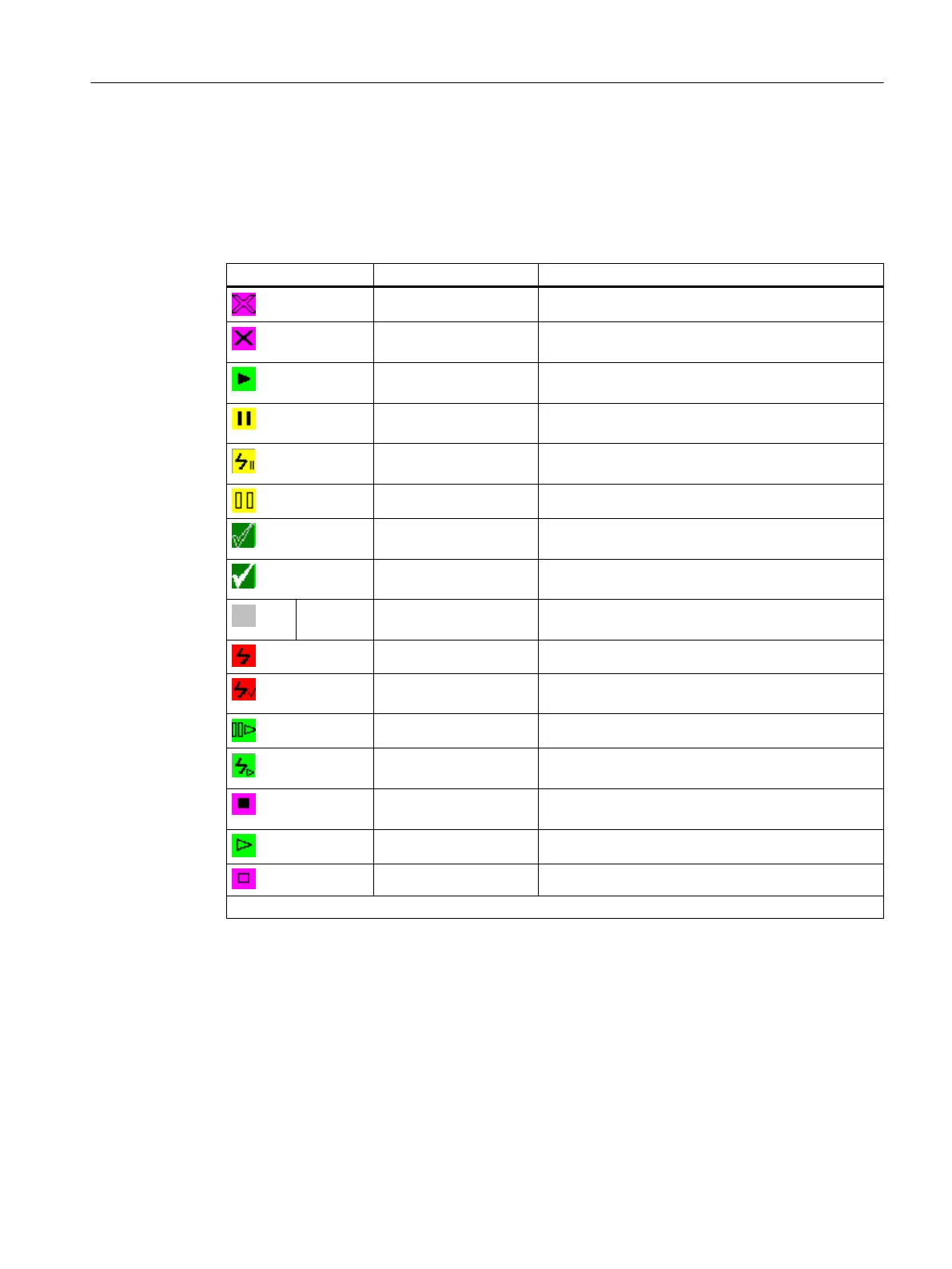

7.4 Icons for Operating States
SFC operating states
Icon State Meaning
Aborting Processing after Abort command.
Aborted Cancellation processing is complete; waiting for Re‐
set or Start command.
Run Processing after ending the processing in the "Start‐
ing" state.
Held Cancellation processing in "Held" is complete; wait‐
ing for "Resume", "Abort", or "Stop" command.
Held
(Error)
Error processing is complete no more errors pending;
waiting for "Resume", "Abort", or "Stop" command.
Holding Processing after "Hold" command.
Completing Processing after "Complete" command or after
implicit complete.
Completed Processing in "Completing" state is complete; waiting
for "Reset", "Start", "Abort", or "Stop" command.
(empty) Idle Processing in initial state; waiting for "Start" com‐
mand.
Error Processing after "Error" command.
Error
(Completing)
Processing after "Error" command in "Completing"
state.
Resuming Processing after command "Resume" or "Start".
Resuming
(Error)
Processing after command "Resume" or "Start".
Stopped Processing in "Stopping" state completed, waiting for
command "Start" or "Reset" or Abort".
Starting Processing after command "Start" or "Restart".
Stopping Processing after command "Stop".
Only operating states displayed in bold letters apply to sequencers.
