Configuration
4.18 Data points
CP 1243-8 IRC
Operating Instructions, 02/2018, C79000-G8976-C385-03
153
Sequence of the analog value preprocessing options
The values of analog inputs configured as an event are processed on the CPU according to
the following scheme:

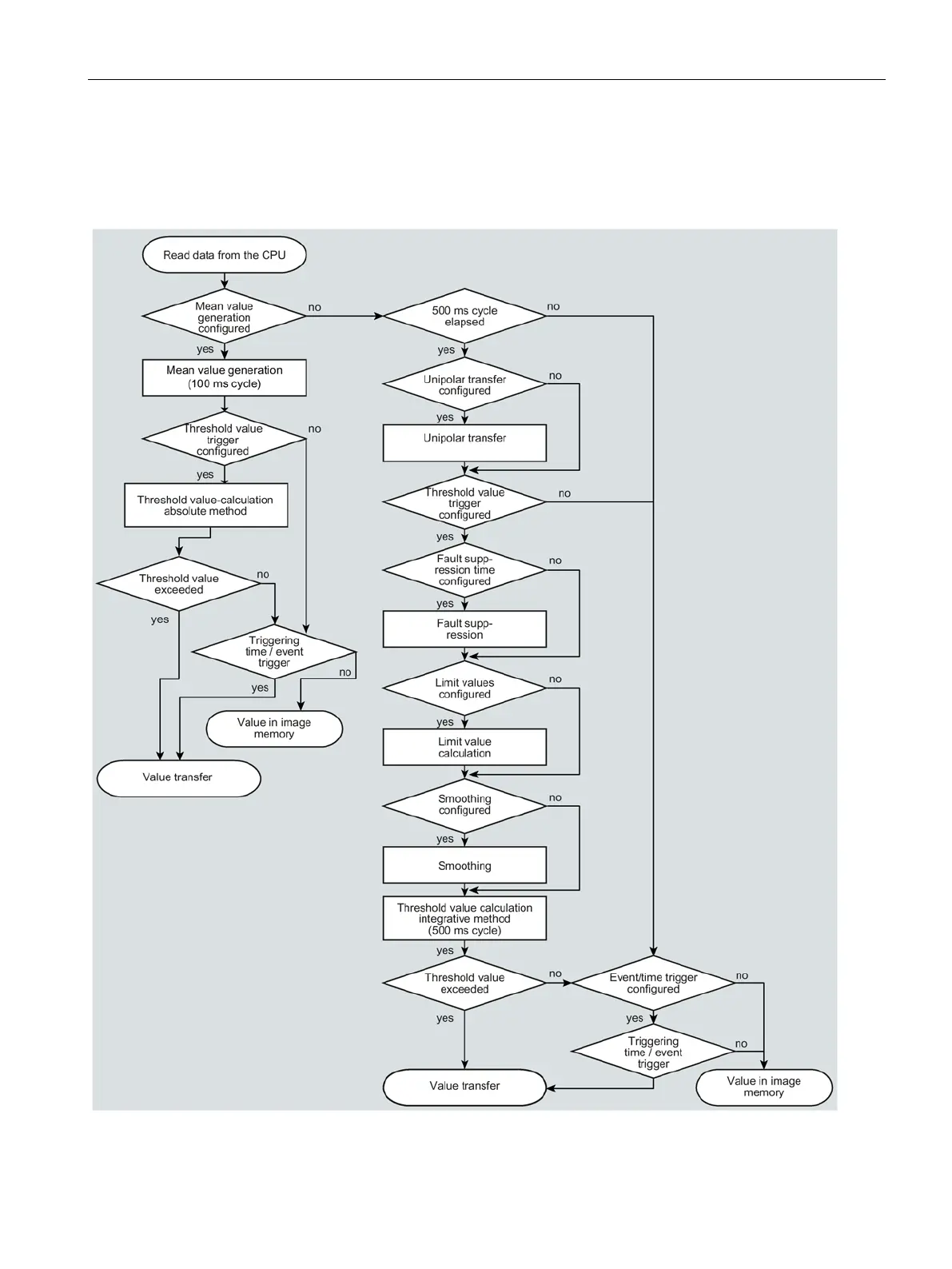

Figure 4-12 Sequence of the analog value preprocessing
