Configuration
4.9 Serial interface
CP 1243-8 IRC
Operating Instructions, 02/2018, C79000-G8976-C385-03
81
3. In the catalog open the following directory:
"Communications modules > Industrial Remote Communication > TS modules"
For information on selecting the suitable TS module, refer to the appendix The TS
modules (Page 193).

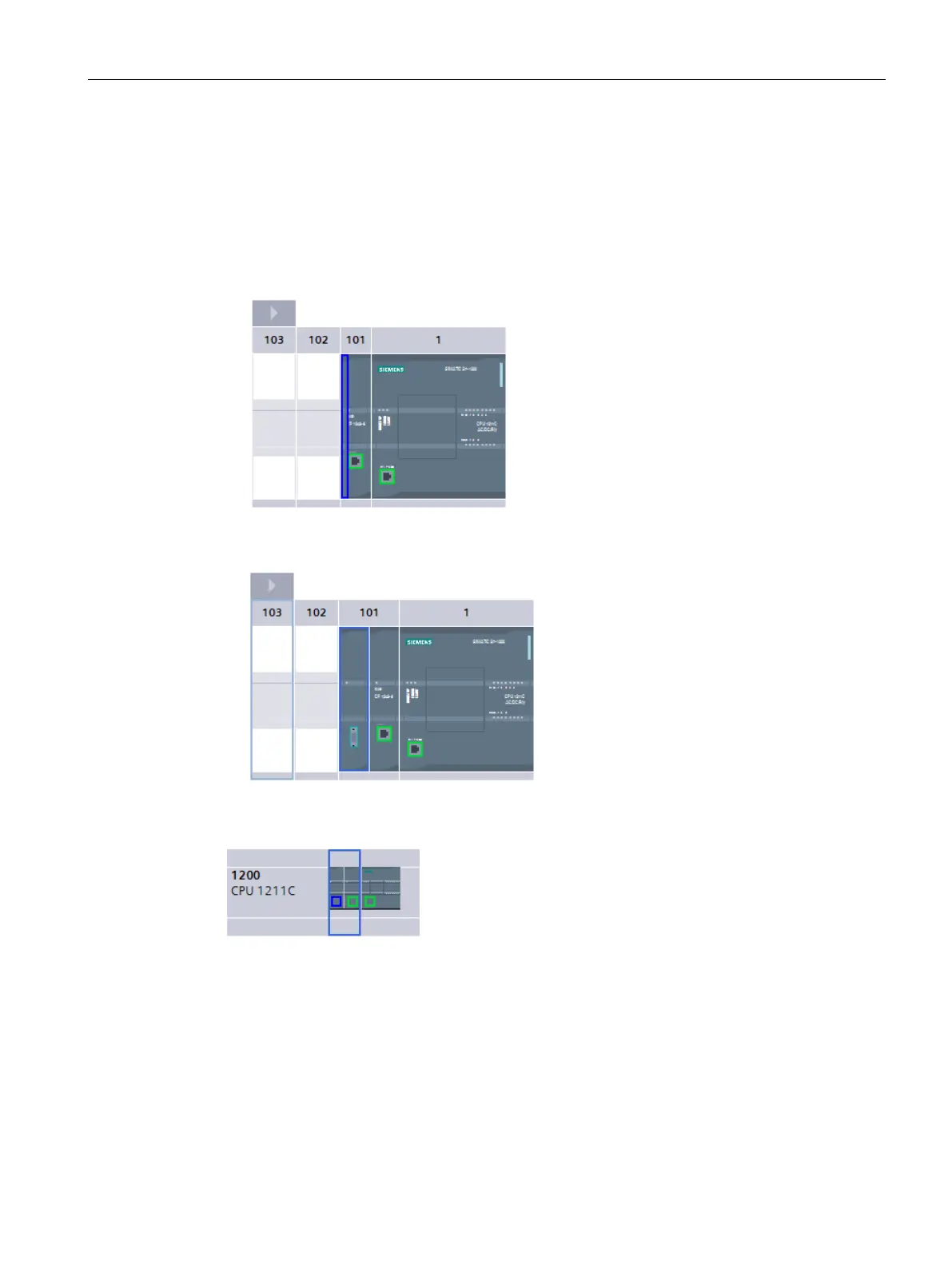

4. Expand the directory of the required TS module and select the TS module.
A vertical blue line appears on the symbol of the CP.
5. Drag the TS module precisely onto the blue line of the CP.
The TS module is inserted beside the CP on the same slot.
In the network view the CP is now displayed with the blue symbol for the serial WAN
interface.
You can configure the serial WAN interface in the device or in the network view.
4.9.3
WAN settings
For descriptions of the parameters, refer to the section WAN settings (Page 70).
