Technical data

7.2 Pin assignment of the socket for the external power supply

CP 1243-8 IRC

184 Operating Instructions, 02/2018, C79000-G8976-C385-03

Technical specifications

Permitted ambient conditions

Ambient temperature During operation with the rack in-

stalled horizontally

-20 °C ... +70 °C

During operation with the rack in-

stalled vertically

-20 °C ... +60 °C

During storage

-40 °C ... +70 °C

During transportation

-40 °C ... +70 °C

Relative humidity

During operation

≤ 95 % at 25 °C, no condensation

Design, dimensions and weight

Module format

Compact module for S7-1200, single width

Degree of protection

IP20

Weight

122 g

Dimensions (W x H x D)

30 x 110 x 75 mm

Installation options

• 35 mm DIN rail

• Switch panel

Product functions **

For details, refer to the IK PI catalog, cabling technology

You will find further characteristics and performance data in the section Application and

functions (Page 11).

7.2

Pin assignment of the socket for the external power supply

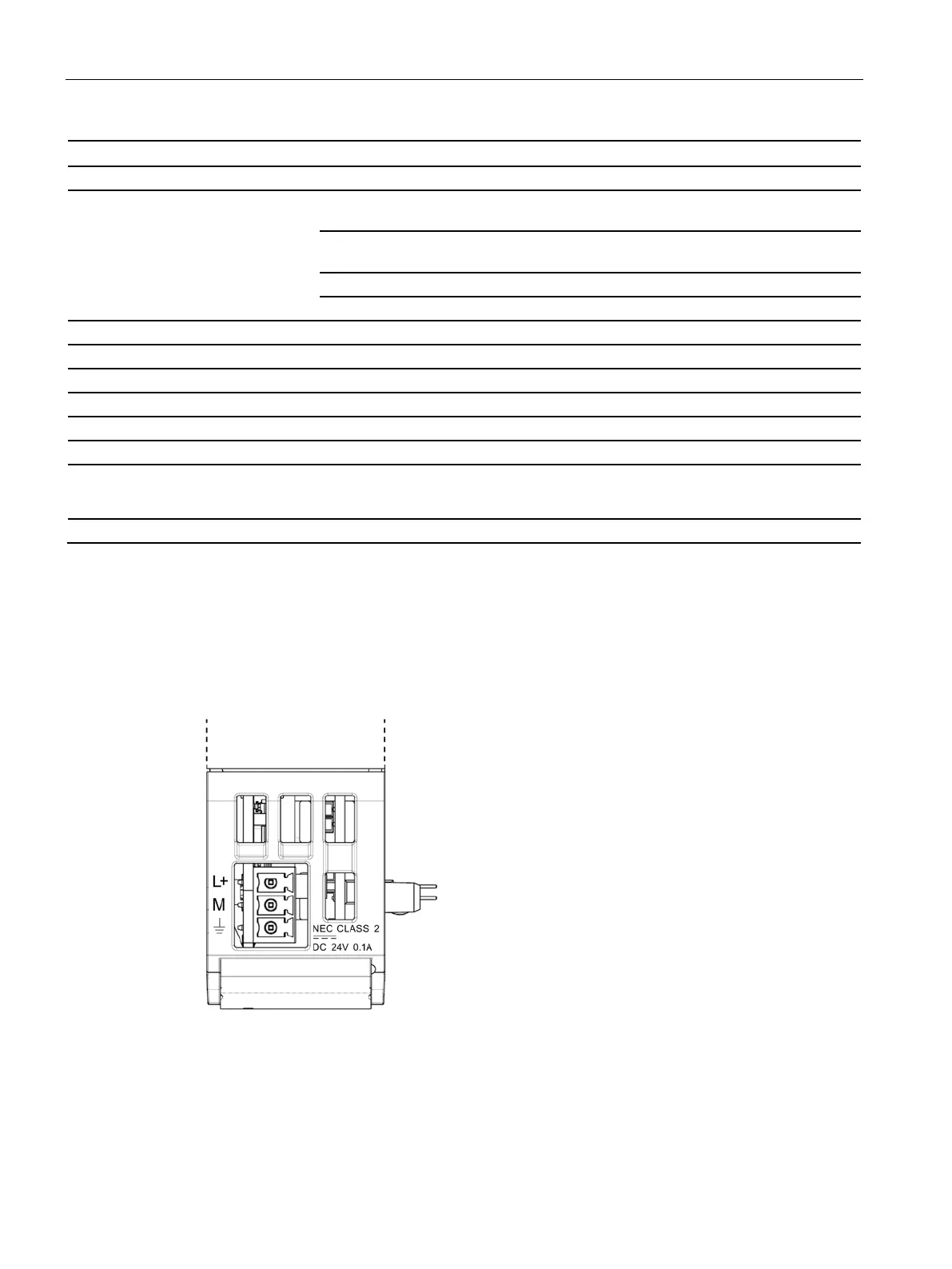

Figure 7-1 Socket for the external 24 VDC power supply (view from above)
