CP 1243-8 IRC
Operating Instructions, 02/2018, C79000-G8976-C385-03
193
Accessories
C
C.1
TS modules
C.1.1
The TS modules
Structure of a TS module
The TS modules have the module format of a compact module S7-1200, single width.

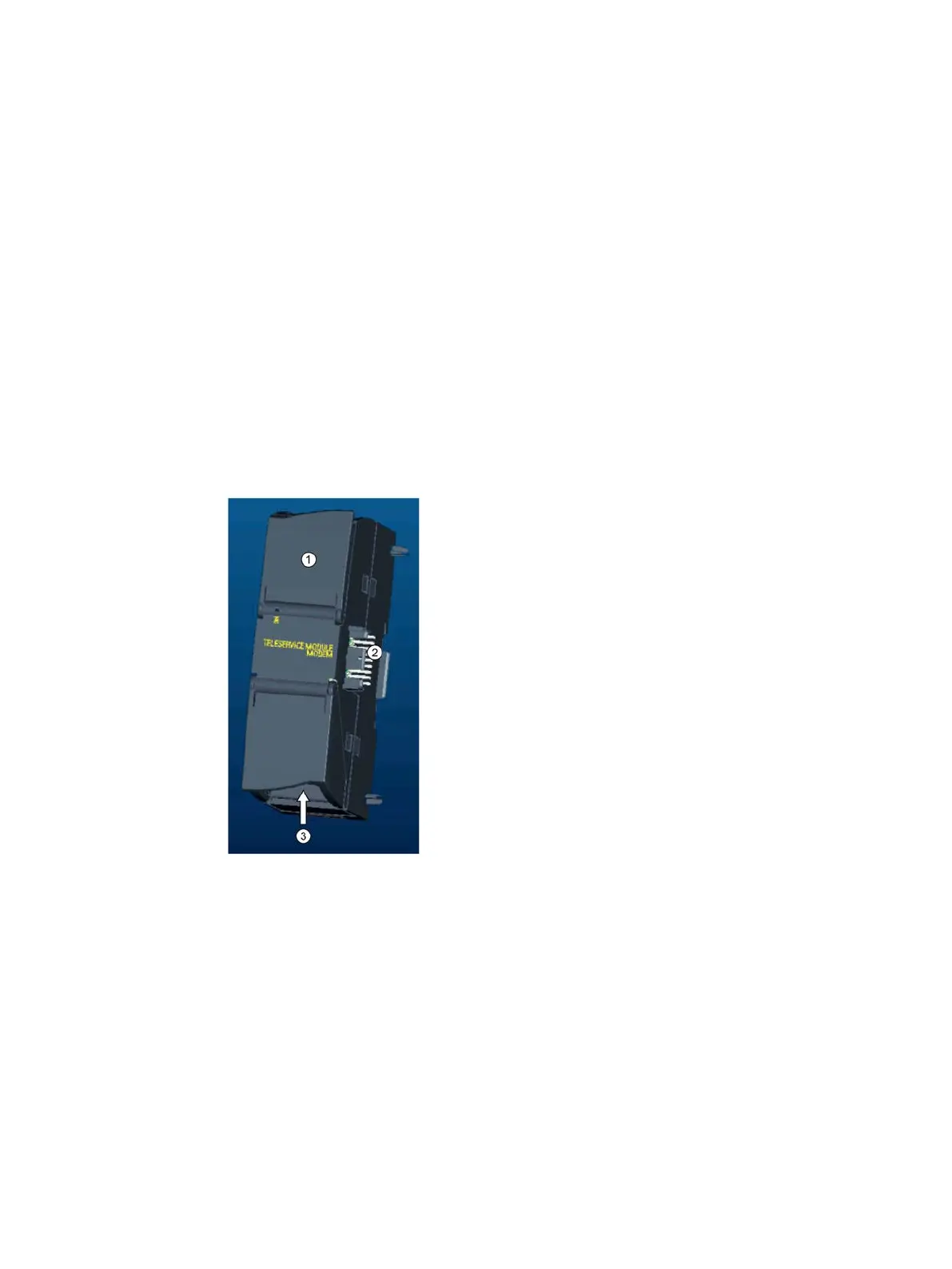

You can see the structure of a TS module in the figure.
①
TS module, here: TS Module Modem
②
Plug-in connection between TS module and CP
③
Interface to the WAN (under the front panel)
Figure C-1 TS module
