C.1 TS modules

CP 1243-8 IRC

194 Operating Instructions, 02/2018, C79000-G8976-C385-03

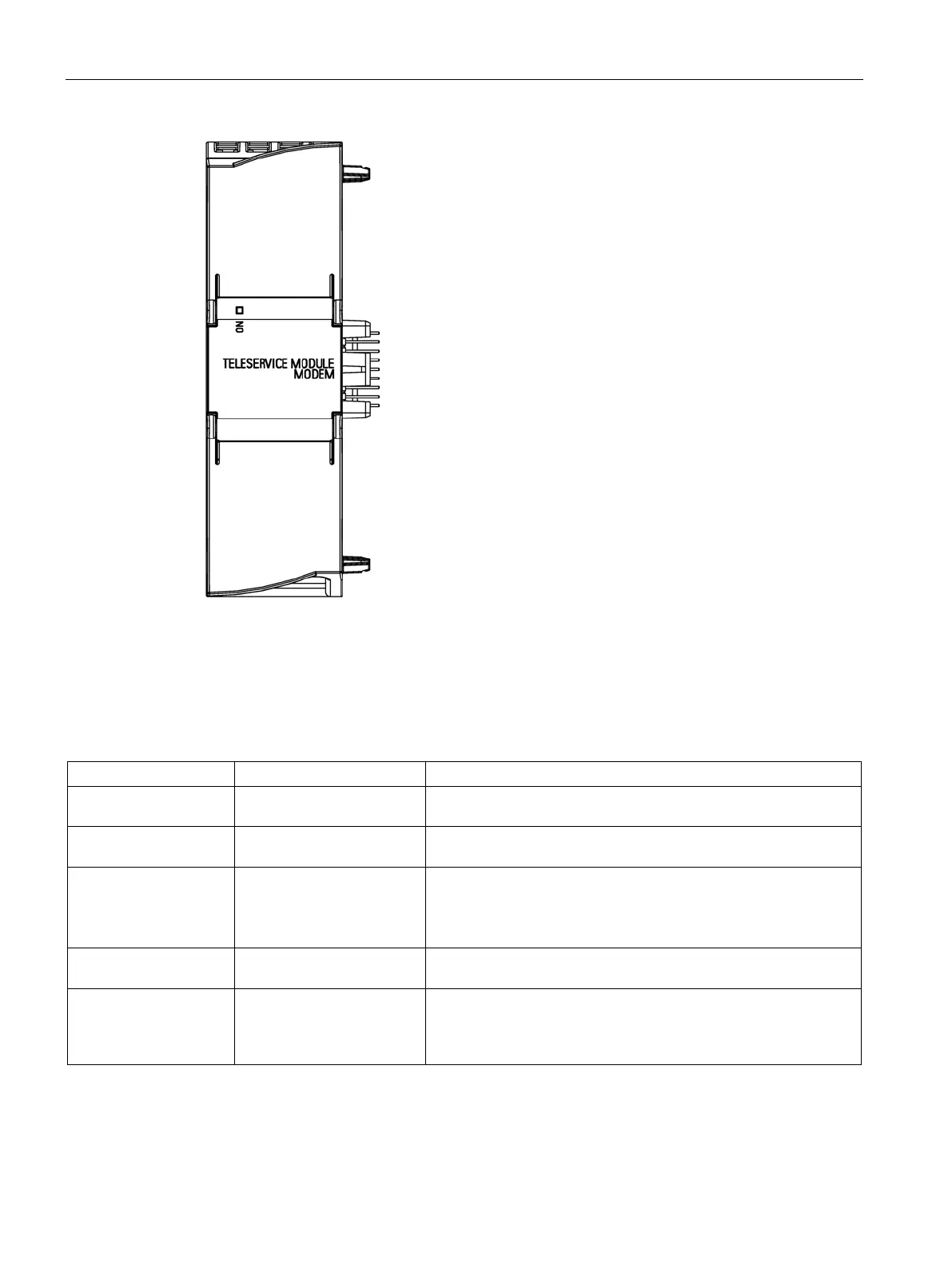

Figure C-2 Drawing of a TS module based on the example of the TS Module Modem

TS modules

The TS modules form the electrical interface to the WAN. The TS modules are supplied with

voltage by the CP via the plug-in connection.

The following TS modules exist:

TS module

Article number

Description

TS Module Modem 6ES7 972-0MM00-0XA0 The TS Module Modem contains an analog modem for connection

to the analog telephone network.

TS Module ISDN 6ES7 972-0MD00-0XA0 The TS Module ISDN contains a terminal adapter for connection

to the ISDN network.

TS Module RS232 6ES7 972-0MS00-0XA0 The TS Module RS232 has a COM interface (RS-232) for connec-

tion of an external modem.

The TS module can be used for connection to a dedicated line,

among other things.

TS Module GSM 6GK7 972-0MG00-0XA0 The TS Module

GSM contains a wireless modem for connection to

the GSM/GPRS network.

Mounting rail-adapter

• 6ES7 972-0SE00-7AA0

• 6ES7 972-0SE10-7AA0

Adapter for S7 mounting rail (optional for S7-300 rack):

• 60 mm rail

• 75 mm rail

You will find a brief description of the TS modules below.

You will find the detailed description and the general technical specifications of the TS

modules in the manual, see /4/ (Page 226).
