Application and functions

1.9 Configuration examples

CP 1243-8 IRC

Operating Instructions, 02/2018, C79000-G8976-C385-03

1.9

Configuration examples

1.9.1

Configurations with the ST7 protocol

Below, you will find configuration examples for stations with a CP 1243-8 IRC.

Telecontrol communication - MSC

In telecontrol communication the station communicates via the CP with a master station.

Communication can take place via various interfaces of the CP and via various network

types.

In the sample configuration shown, stations communicate with a master station TIM that in

turn is connected to a master station of the type SINAUT ST7sc:

● An S7-300 that only communicates via the Internet.

● An S7-300 that communicates via the mobile wireless network and the Internet.

● An S7-1200 with CP 1243-8 IRC that communicates via the mobile wireless network and

the Internet.

All three stations use the transport protocol MSC (or MSCsec).

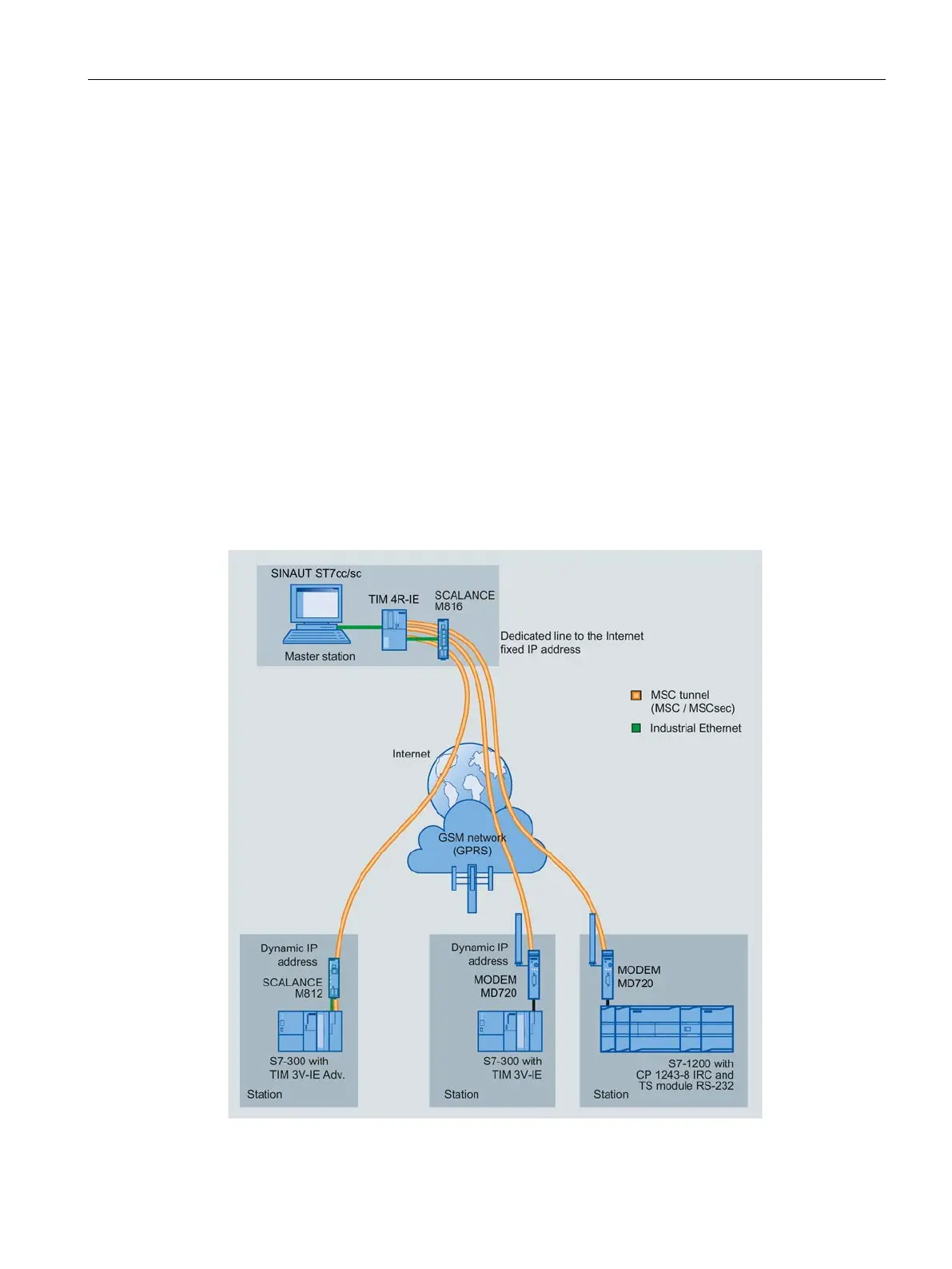

Figure 1-1 Communication with the MSC protocol via mobile wireless and Internet
