CP 1243-8 IRC
Operating Instructions, 02/2018, C79000-G8976-C385-03
191
Dimension drawings
B
All dimensions in the drawings are in millimeters

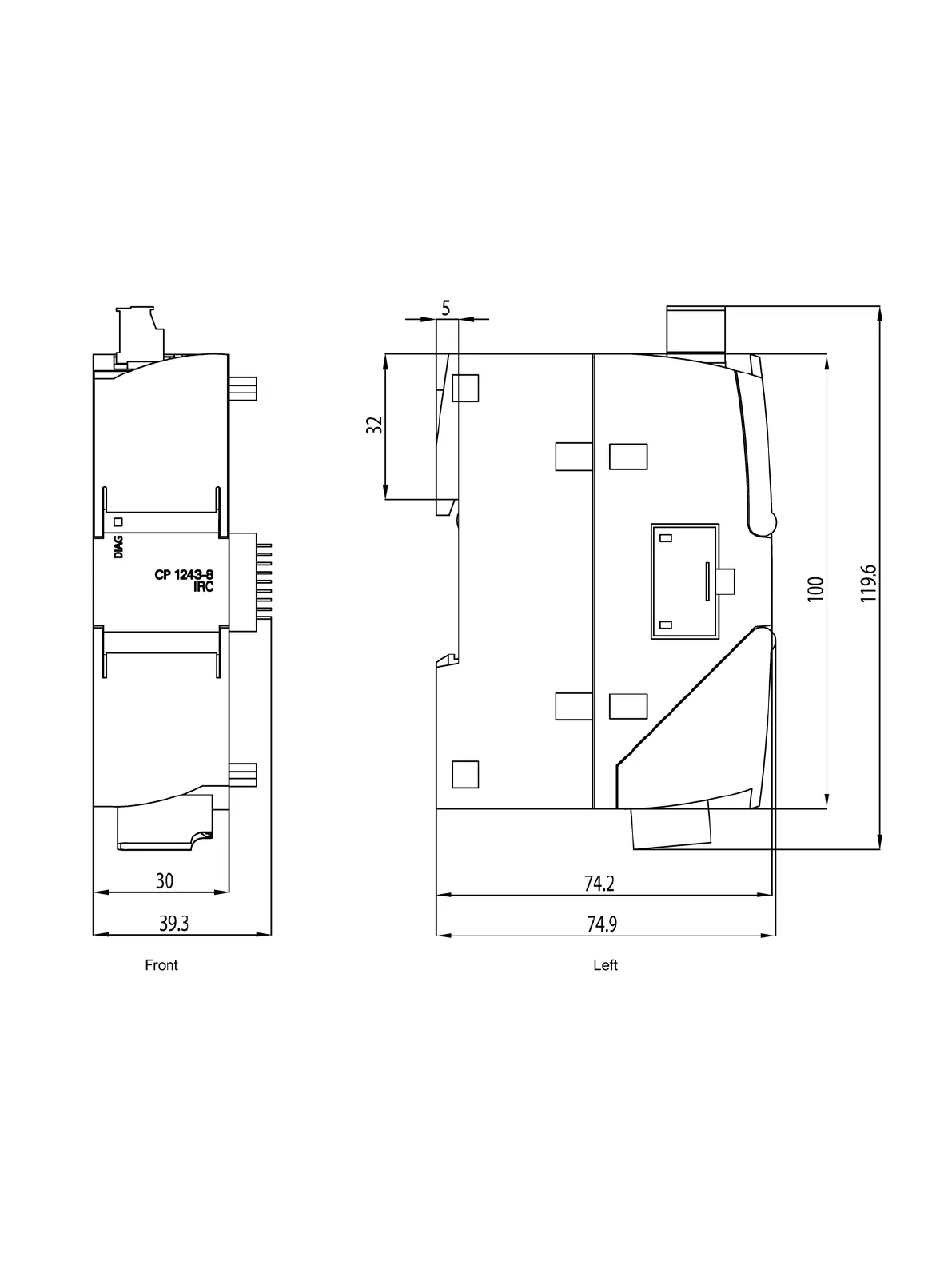

Figure B-1 Front view and side view left
