STEP 7 V5 configuration of the proxy
D.2 Special features of the PROXY CP1243-8 IRC
CP 1243-8 IRC
216 Operating Instructions, 02/2018, C79000-G8976-C385-03
They have the following names:
PROXY CP1243-8 IRC
PROXY TIM 1531 IRC

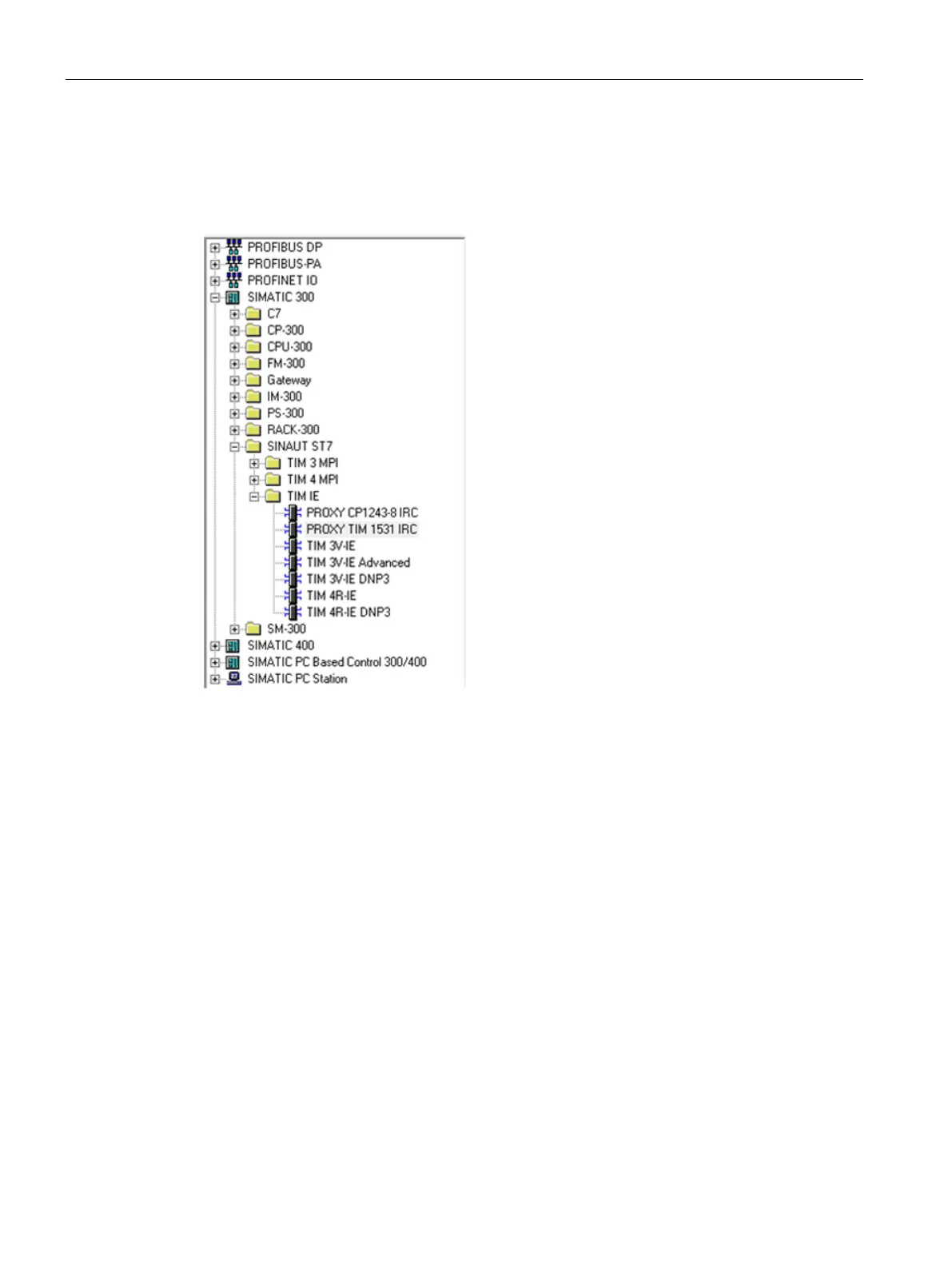

Figure D-1 PROXY modules in the catalog
D.2
Special features of the PROXY CP1243-8 IRC
Properties of the CP or proxy "PROXY CP1243-8"
Like a TIM 3V-IE Advanced the proxy supports parallel connection to two WAN networks via
the serial and the Ethernet interface. Both interfaces of the proxy can be configured.
Compared with the TIM 3V-IE Advanced, the proxy or CP has the following differences:
Station
The interfaces of the proxy can only be configured as station. Use as a node station or
master station is not possible. This is expressed in the STEP 7 properties dialog:
"
Time"
tab
The proxy can only be configured as a time slave. The function of time master is not
supported.
