LEDs and connectors
2
2.1
Opening the covers of the housing
Location of the display elements and the electrical connectors
The LEDs for the detailed display of the module statuses are located behind the upper cover
of the module housing.
The Ethernet connector is located behind the lower hinged cover of the module.
Opening the covers of the housing
Open the upper or lower cover of the housing by pulling it down or up as shown by the
arrows in the illustration. The covers extend beyond the housing to give you a grip.

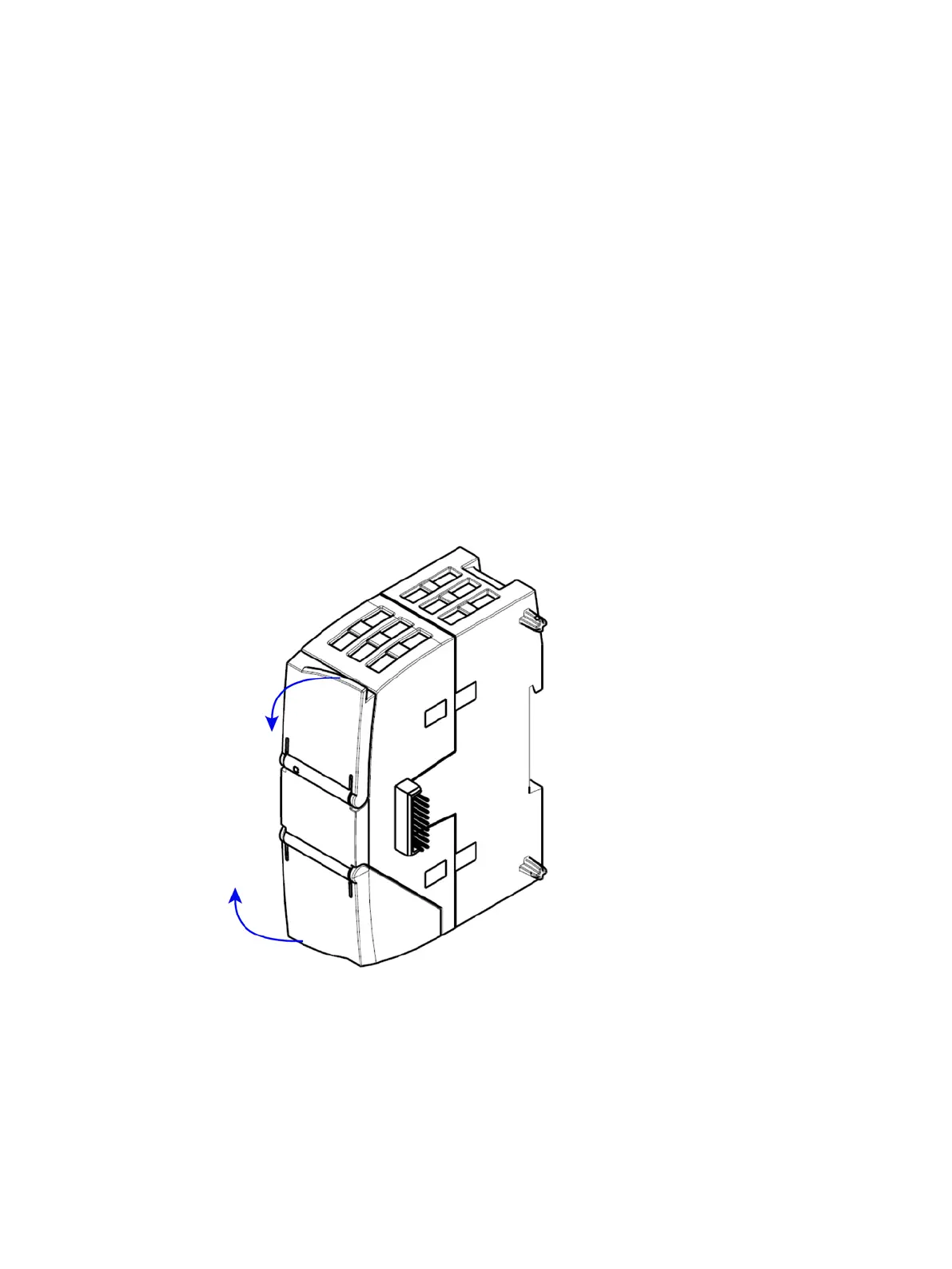

Figure 2-1 Opening the covers of the housing

Siemens SIMATIC S7-1200 CP 1243-8 IRC Specifications

General

Product Type	Communication Processor
Series	SIMATIC S7-1200
Model	CP 1243-8 IRC
Data Transfer Rate	10/100 Mbps
Power Supply	24 V DC
Mounting	DIN rail
Dimensions (W x H x D)	45 mm x 100 mm x 75 mm
Digital Inputs Quantity	0
Digital Outputs Quantity	0
Supported Protocols	ISO-on-TCP
Interface	Ethernet
IP Addressing	Static, DHCP
Configuration	STEP 7 Basic/Professional
Operating Temperature	-20°C to +60°C
Weight	Approx. 200 g
