Application and functions
1.9 Configuration examples
CP 1243-8 IRC
26 Operating Instructions, 02/2018, C79000-G8976-C385-03
Inter-station communication between stations
Inter-station communication is possible for stations connected to the same master station.
For the inter-station communication between stations, the master station forwards the
messages of the sending station to the receiving station.
Telecontrol communication - Ethernet
In the sample configuration shown, an S7-300 and two S7-1200 stations communicate with a
master station SINAUT ST7cc/ST7sc.
The CPs are connected via their Ethernet interface.
The connection to the Ethernet network, in this example a fiber-optic cable, is implemented
using SCALANCE X switches. Copper cable is also possible as the medium.

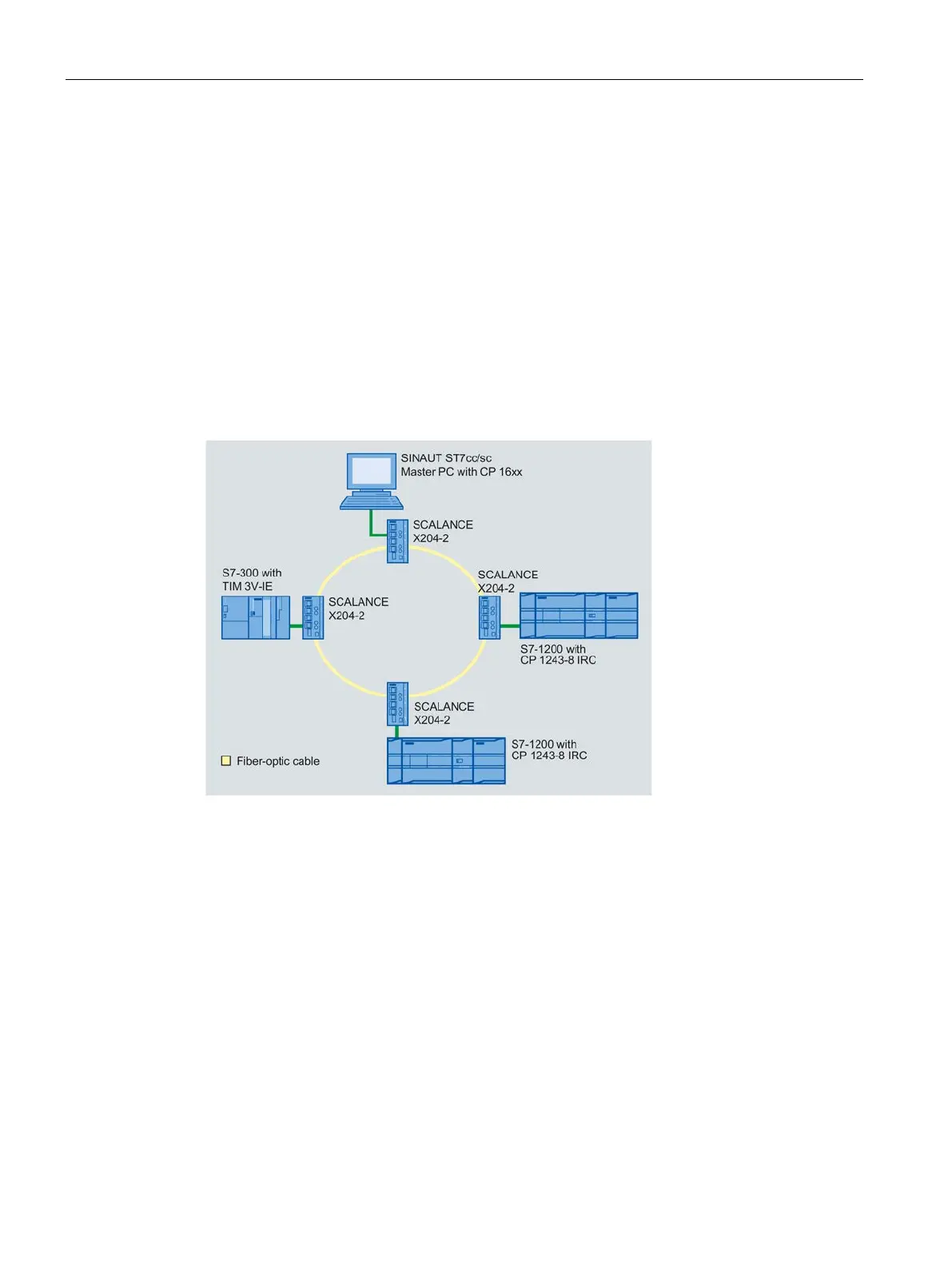

Figure 1-2 Communication via an Ethernet network (optical medium)

Siemens SIMATIC S7-1200 CP 1243-8 IRC Specifications

General

Product Type	Communication Processor
Series	SIMATIC S7-1200
Model	CP 1243-8 IRC
Data Transfer Rate	10/100 Mbps
Power Supply	24 V DC
Mounting	DIN rail
Dimensions (W x H x D)	45 mm x 100 mm x 75 mm
Digital Inputs Quantity	0
Digital Outputs Quantity	0
Supported Protocols	ISO-on-TCP
Interface	Ethernet
IP Addressing	Static, DHCP
Configuration	STEP 7 Basic/Professional
Operating Temperature	-20°C to +60°C
Weight	Approx. 200 g
