Accessories

C.4 Connecting cables

CP 1243-8 IRC

Operating Instructions, 02/2018, C79000-G8976-C385-03

211

The following standard connecting cables are available for connection to this D-sub

connector.

Table C- 1 Connectable standard cables for the RS-232 interface of the TS Module RS232

Order no.

Description

Illustration

6NH7701-4AL

Cable for connecting the TS module with one of the SINAUT

ST7 modems MD2, MD3 or MD4 (RS-232)

Cable length 1.5 m

6NH7701-5AN Cable for connecting the TS module to the GSM modem

MD720 (RS-232). Also suitable for third-party modems or

wireless devices with a standard RS-232 interface.

Cable length 2.5 m

6NH7701-4BN Cable with one end without connector for connecting the TS

module (RS-232) to a third-party modem or wireless device

(RS-232)

Cable length 2.5 m

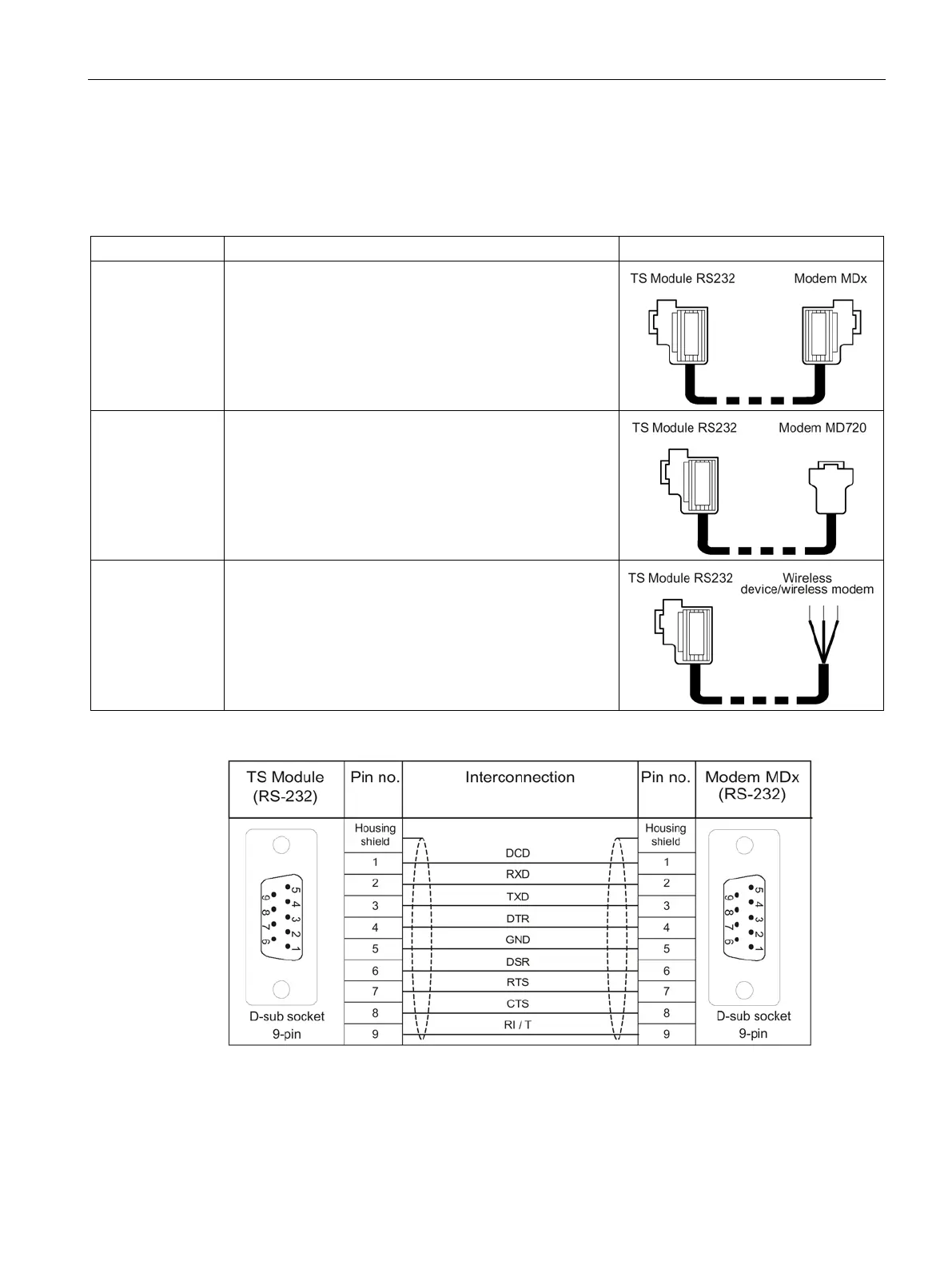

The following figures show the assembly of the connecting cables.

Figure C-7 Assembly of the standard connecting cable 6NH7701-4AL
