LEDs and connectors
2.2 LEDs
CP 1243-8 IRC
44 Operating Instructions, 02/2018, C79000-G8976-C385-03
(red / green)
(red / green)
(green)

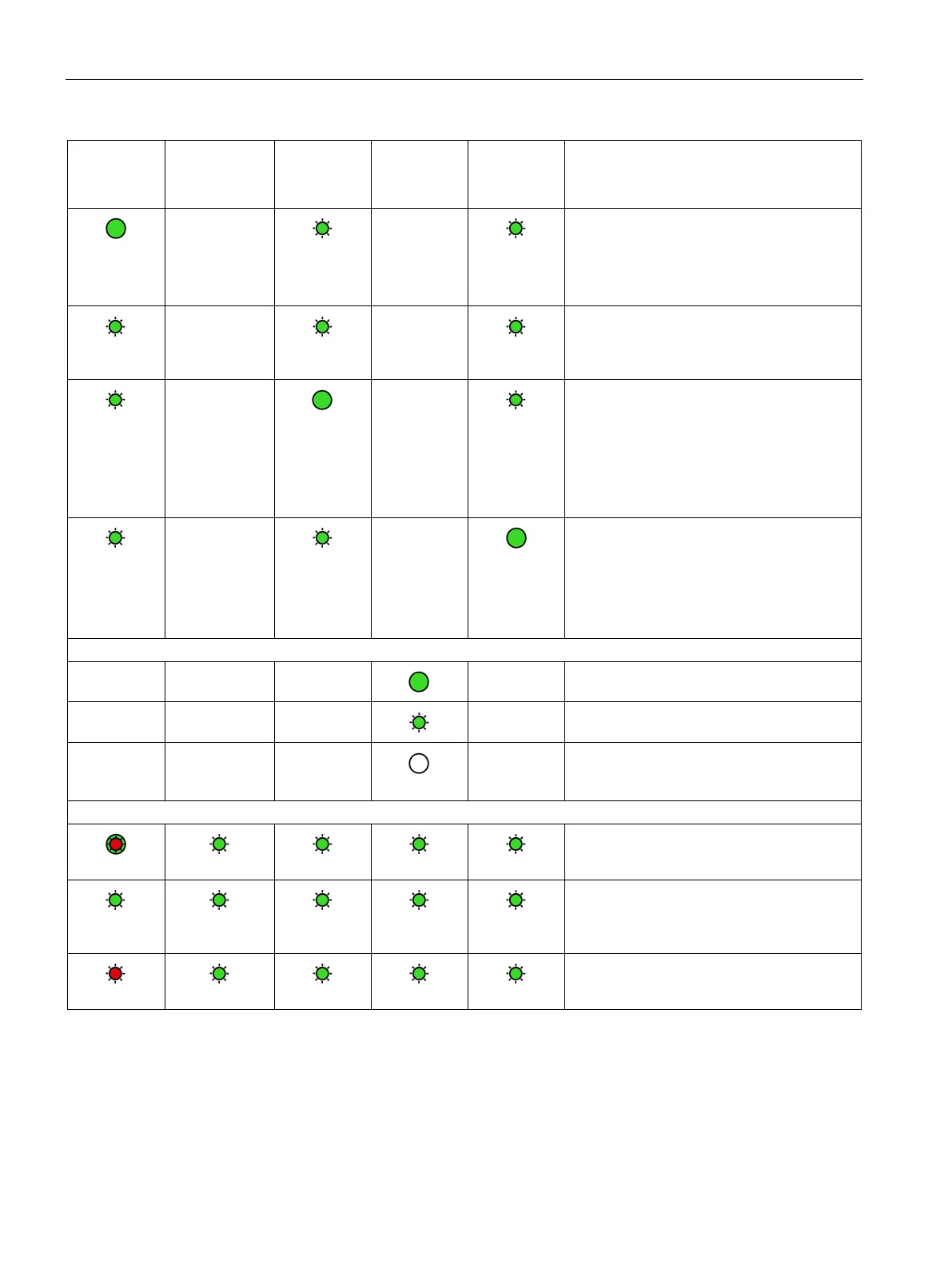

Meaning
(if more than one point listed: alternative
meaning)
green
-
-
Configuration of the telecontrol communica-
tion via both interfaces error-free and ena-
bled.
At least one connection established on eve-
ry interface but not all.
flashing
-
-
Configuration of the telecontrol communica-
tion via both interfaces error-free and ena-
bled. No connection established.
flashing
green
-
-
Configuration of the telecontrol communica-
tion via both interfaces error-free and ena-
bled.
Connection established via Ethernet to at
least one partner.
No connection established via the serial
flashing
green
-
-
Configuration of the telecontrol communica-
tion via both interfaces error-free and ena-
bled.
Connection established via the serial inter-
face to at least one partner.
No connection established via Ethernet.
VPN/SINEMA Remote Connect connection
- - -
- VPN/SINEMA Remote Connect connection
established
- - -
- Attempting to establish a configured
VPN/SINEMA Remote Connect connection
- - -
- VPN/SINEMA Remote Connect connection
not configured or currently not established
Loading firmware. The "DIAG" LED flashes
alternately red and green.
flashing
flashing green
Firmware was successfully loaded. Die LED
"DIAG" flashes green twice.
Error loading the firmware.
Remedy: Power OFF → ON
With configured dial-up network connections, a connection is shown as being established or the partner as being reacha-
ble if the connection has been established and least once and then not aborted.
