Siemens SIMATIC S7 User Guide

SIMATIC Automation Tool overview
1.1 Managing networks
SIMATIC Automation Tool V2.1 user guide
Manual, V2.1.1 07/2016, A5E33042676-AC
11

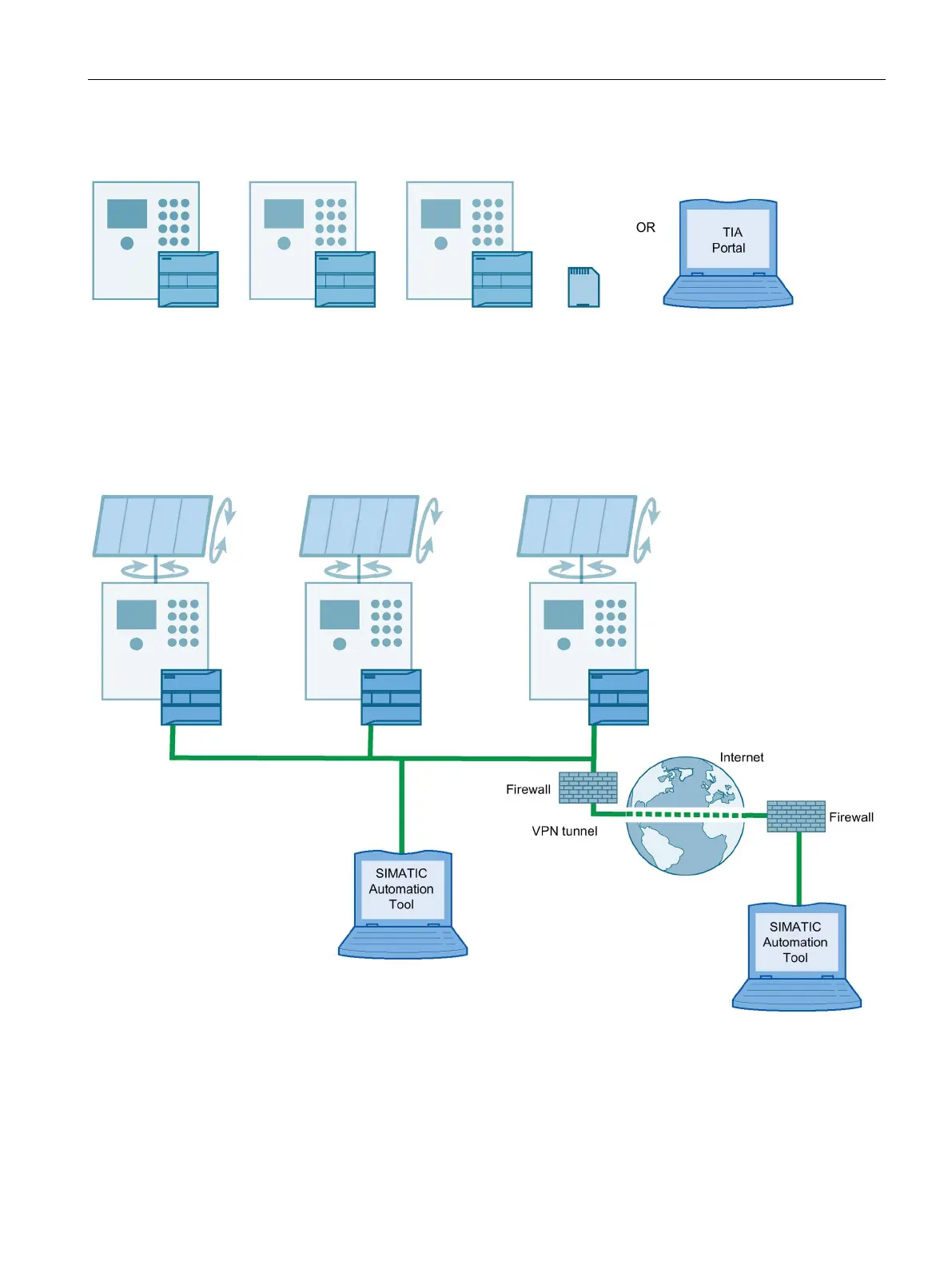

Example S7-1200 network installation
Panel shop fabrication and initial program load
● Each CPU uses the same hardware configuration and control program
● The CPU PROFINET configuration uses "Set IP Address on the device" and "Set
PROFINET device name on the device" options
● Each Panel is identical
● The panel shop uses an SD Card or the TIA Portal to load the CPU program.
